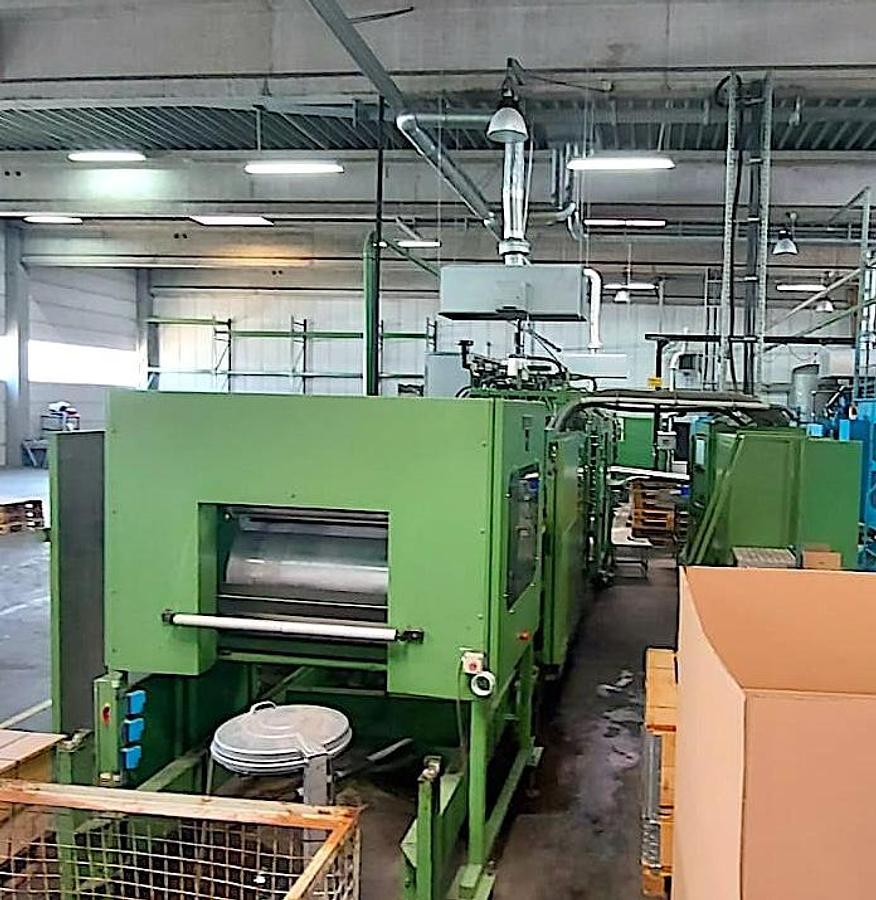

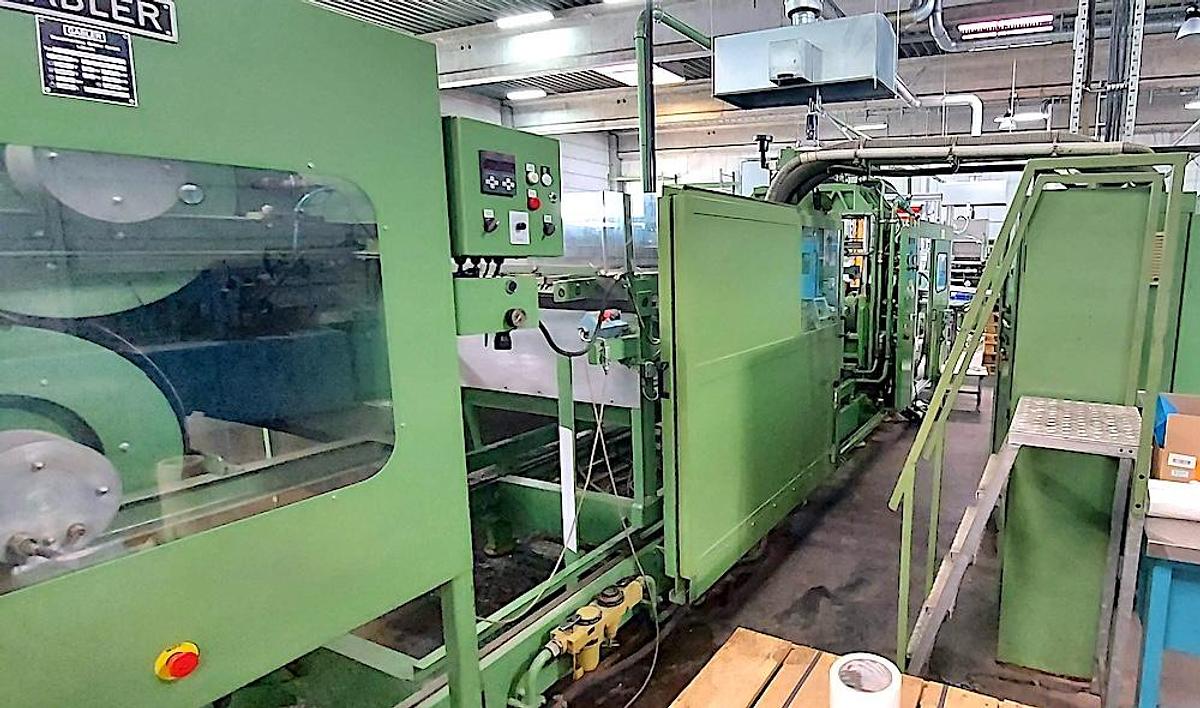

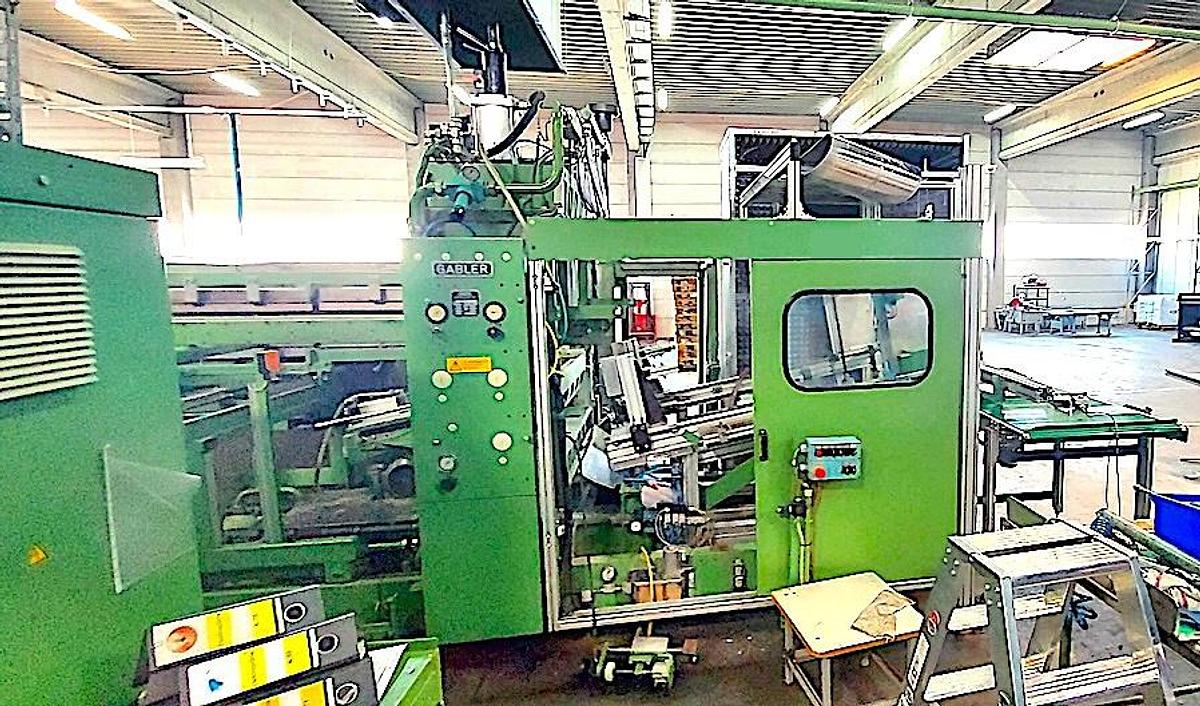

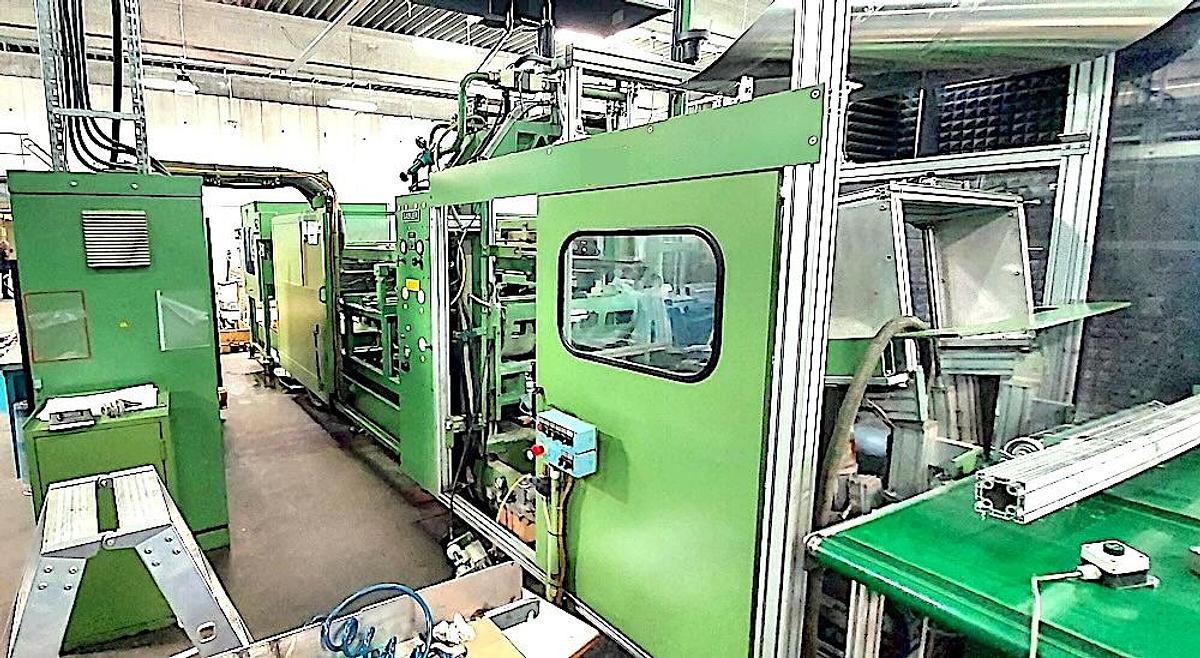

1993 Gabler M90

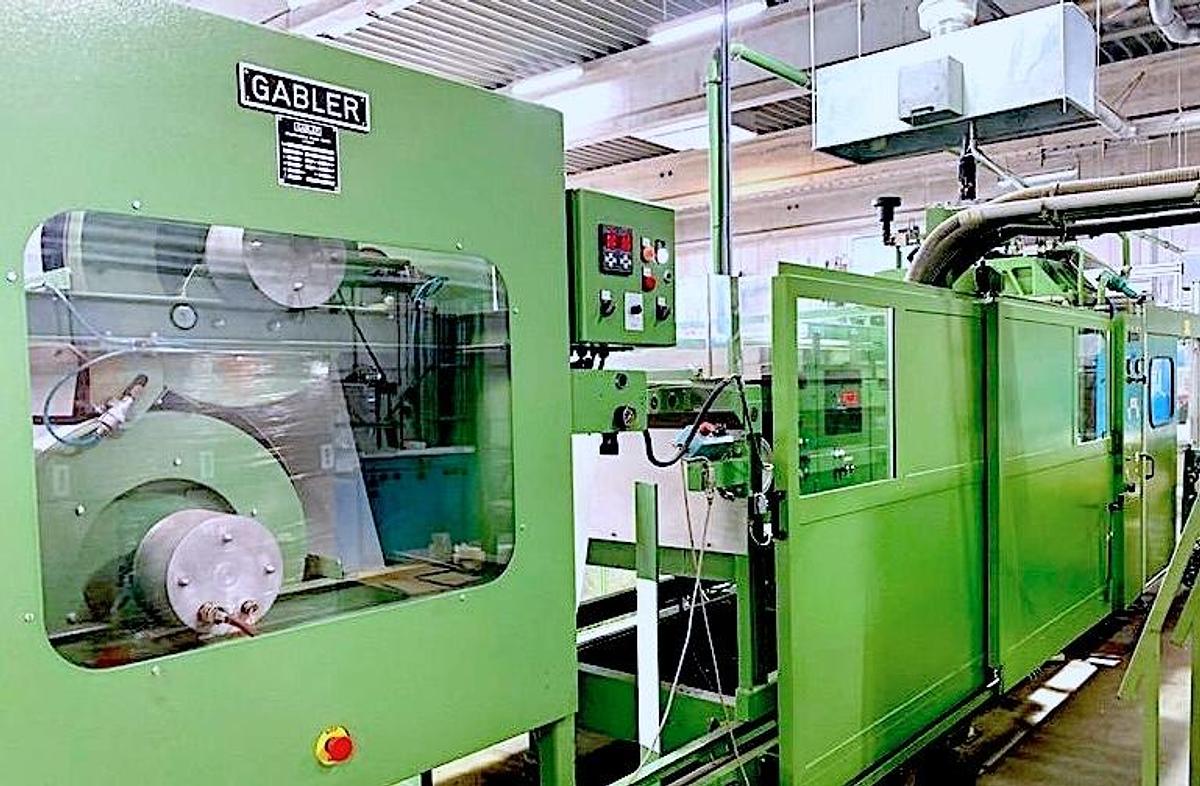

Used Gabler M90 Thermoformer, age 1993, reportedly only used for approximate 30,000 hrs.

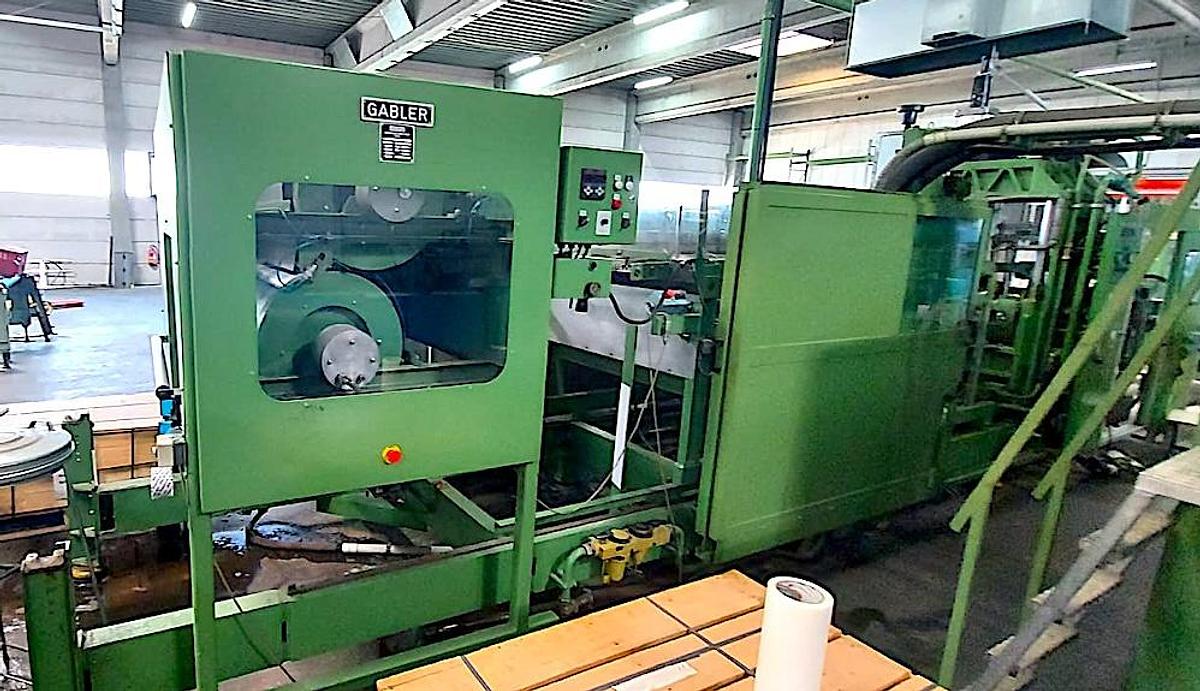

Material Roll stand

Gabler, 2 x Roll Preheater; also acts as unwinder.

Double heating

Top & Bottom Heaters total rating 86.1 kW

Total motor rating 15 kW

Pneumatic Plug Assist

Max Forming Area 700 x 300 mm

Max Film Width 730 mm

Max Depth of Draw 150 mm

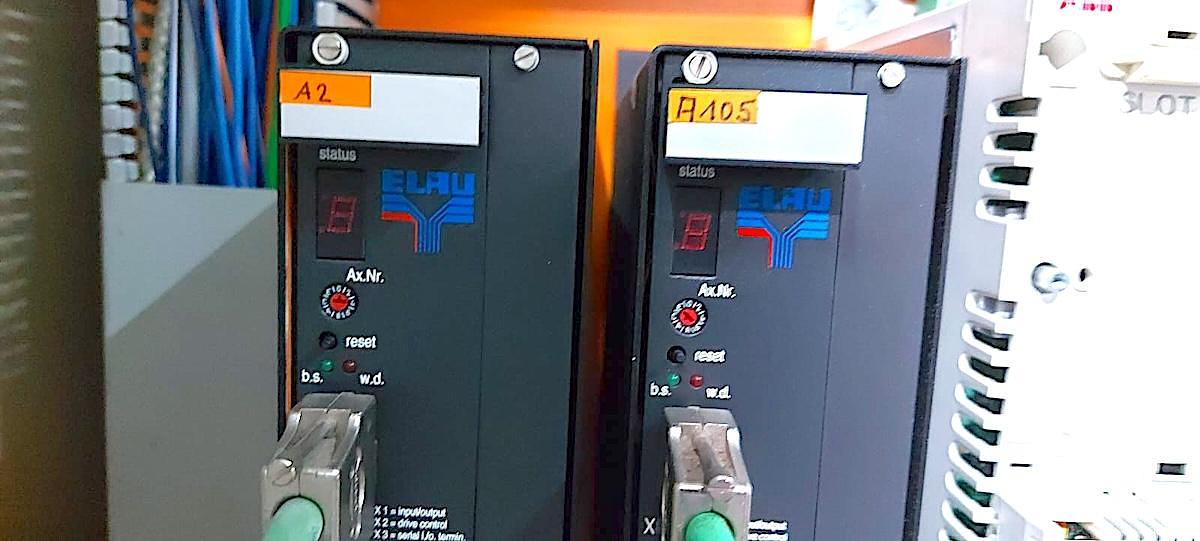

Lower Form Platen swivels through a max. of 90 degs using a heavy duty Servo-driven Planetary Drive

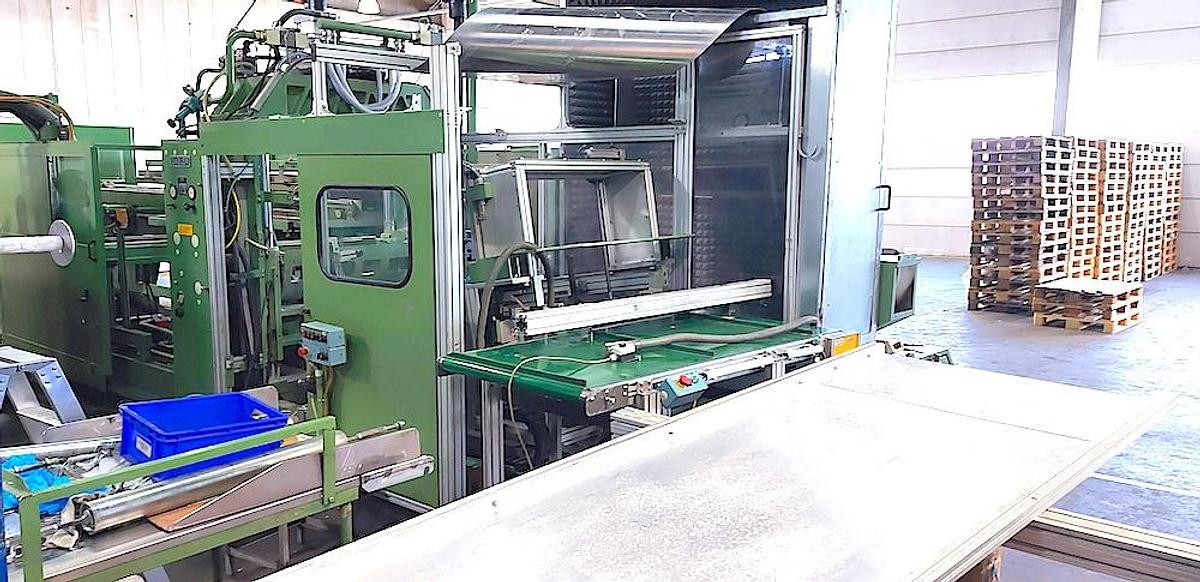

Stacking / counting Station

Delivers counted products at 90 degs to machine direction

Skeletal waste material turned through 90 degs.

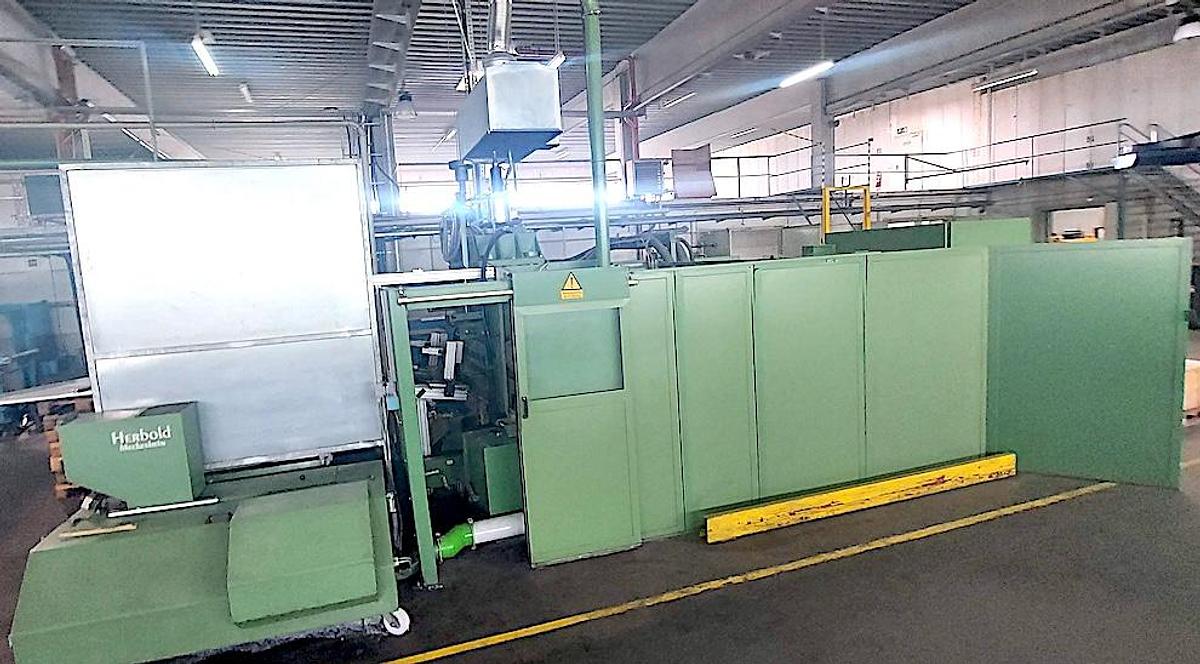

Herbold Grinder

Suitable for PS, OPS, PVC, PP, ABS

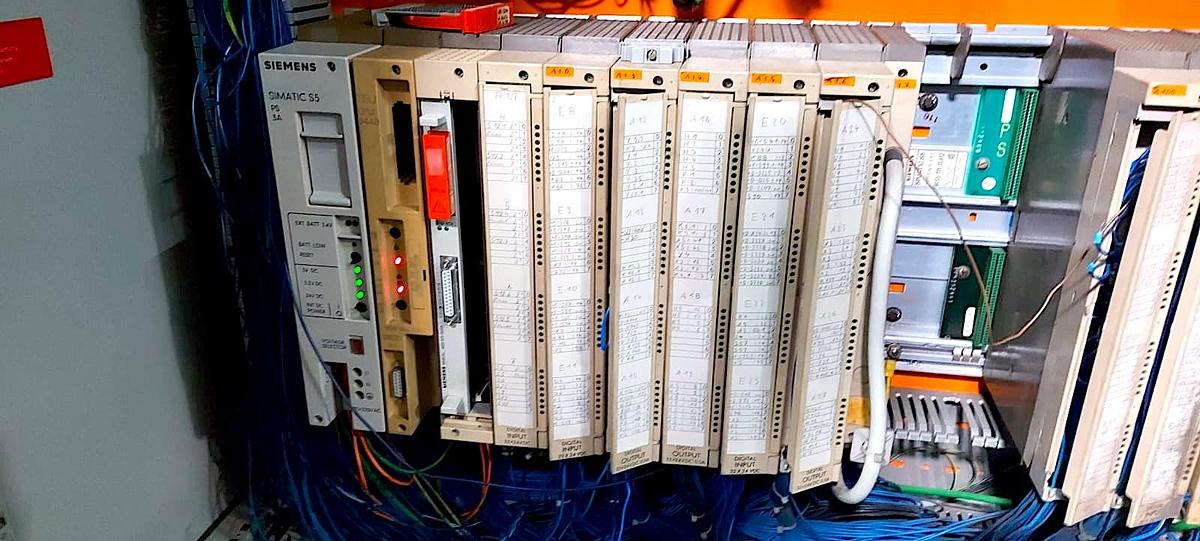

Siemens S5 PLC

400V 3phase, 50 Hz
