2010 AMUT & ILLIG, AMUT E100 Coextruder/ Inline ILLIG RDM75K

2 x Complete Inline AMUT E100 Coextrusion Lines, age 2010 + ILLIG RDM75K Thermoformers, age 2008

(Both Lines with the same age & exact same Technical specifications)

Details are as follows:-

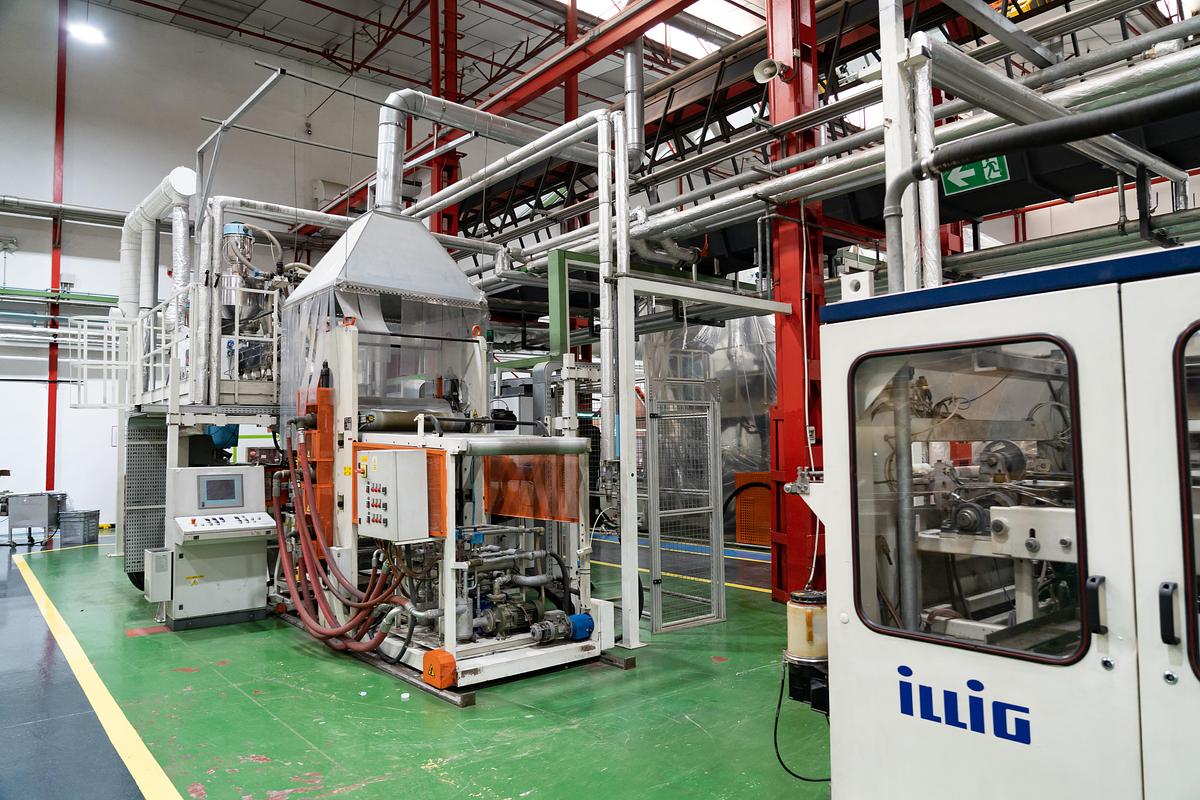

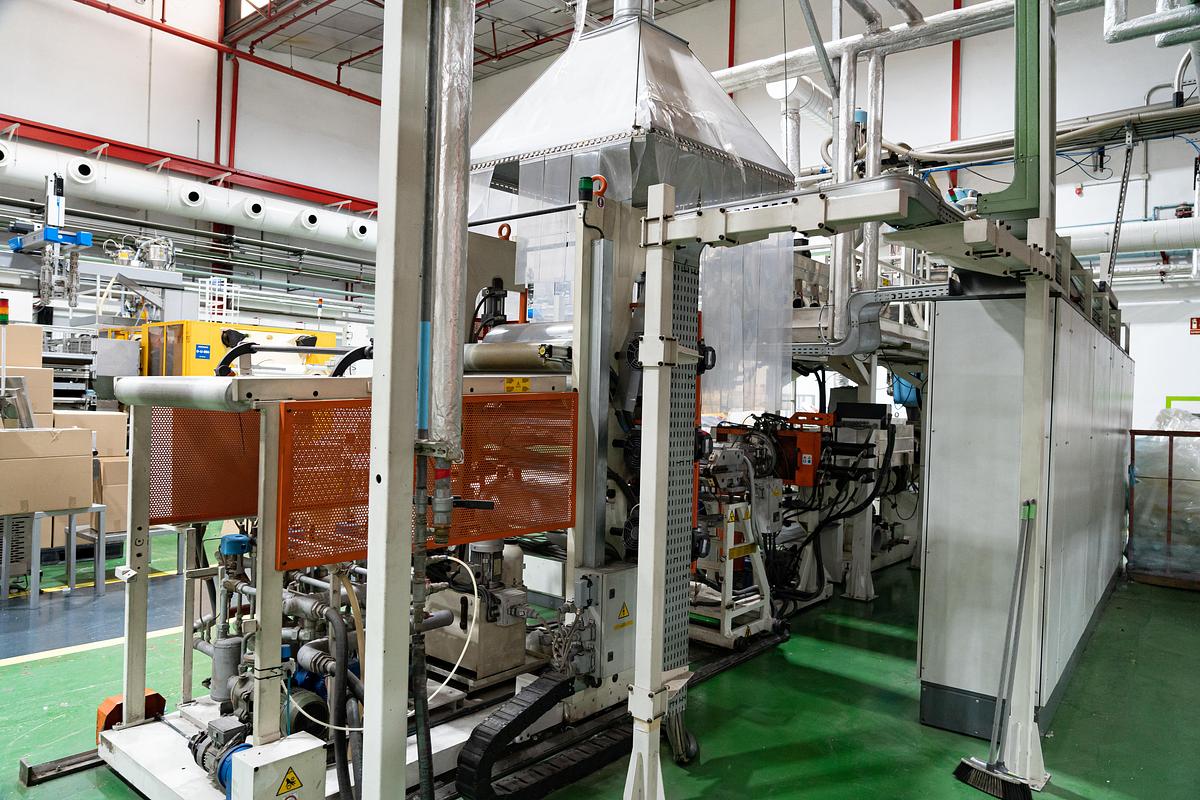

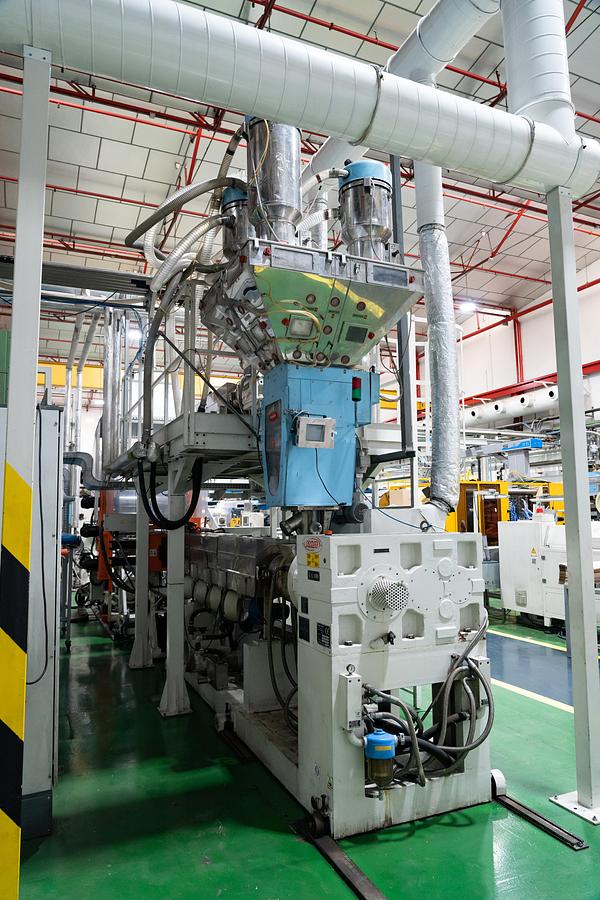

Amut E100 Coextrusion Line age 2010 consisting of:

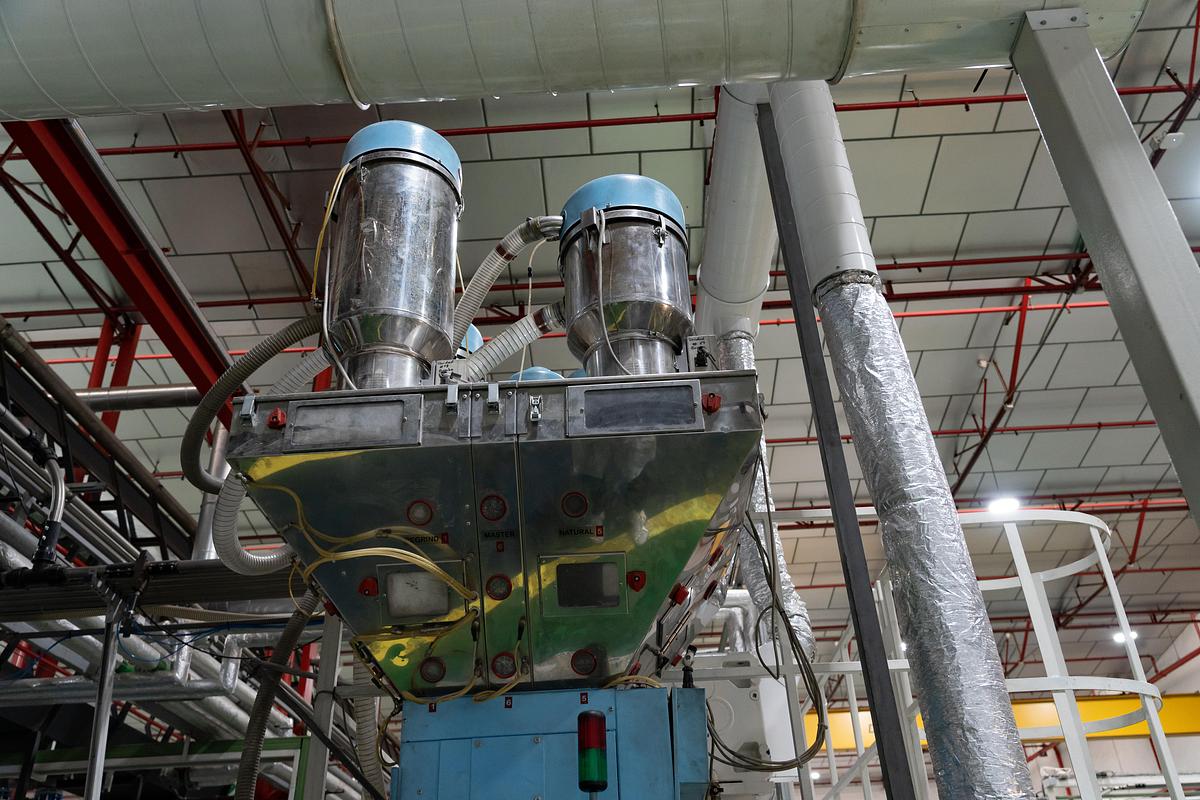

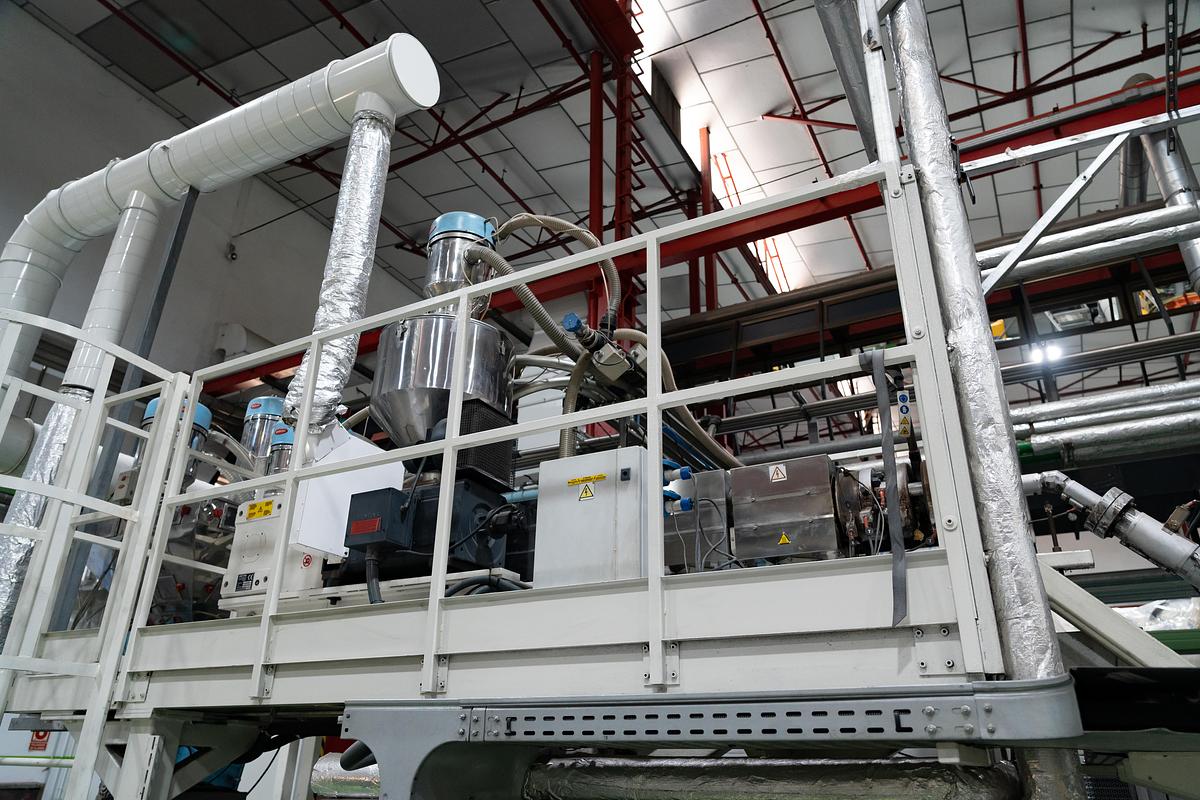

AMUT 4-Part Mixing Dosing unit with integrated vacuum pump

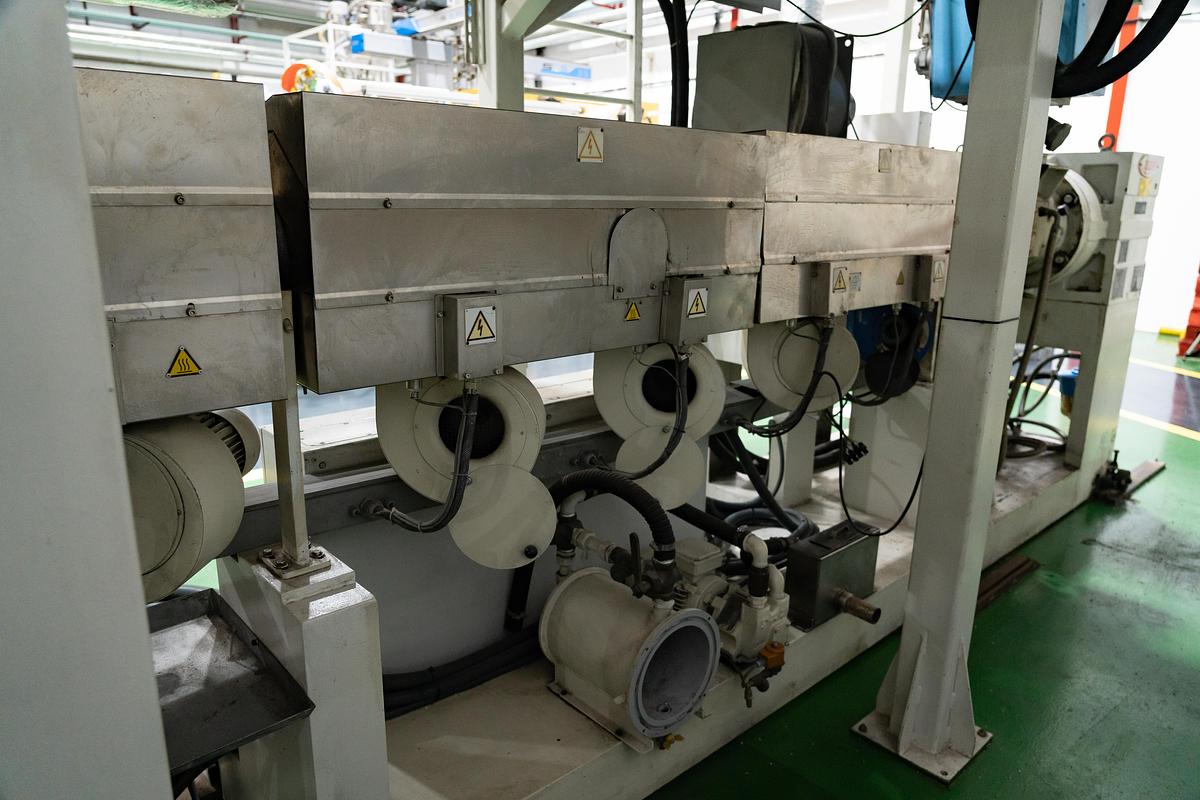

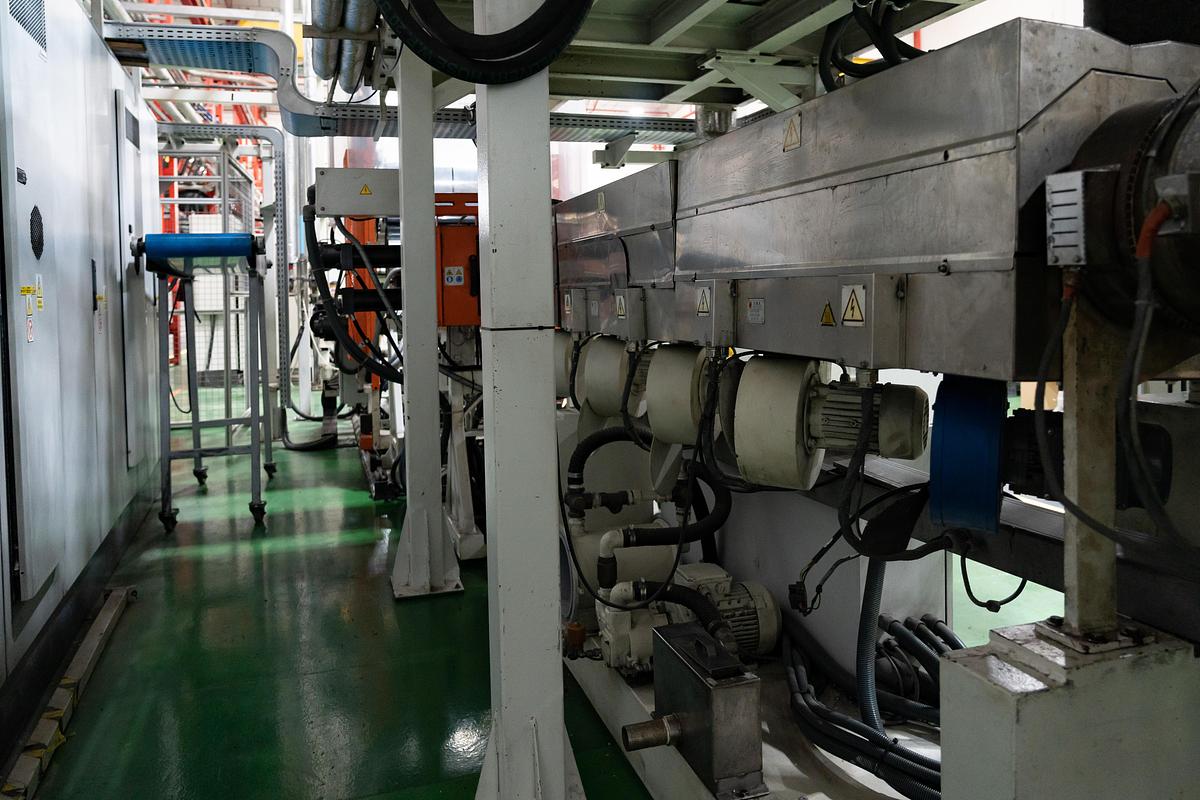

Main Extruder AMUT EA100: dia. 100 mm, L/D 35, 8 Heating Zones - 54.9 kW, Air cooled

Drive Motor 178 kW

Degassing Pump 2.2 kW, 35 meter-cube/ hr

Auto-Screen Changer

Melt Pump

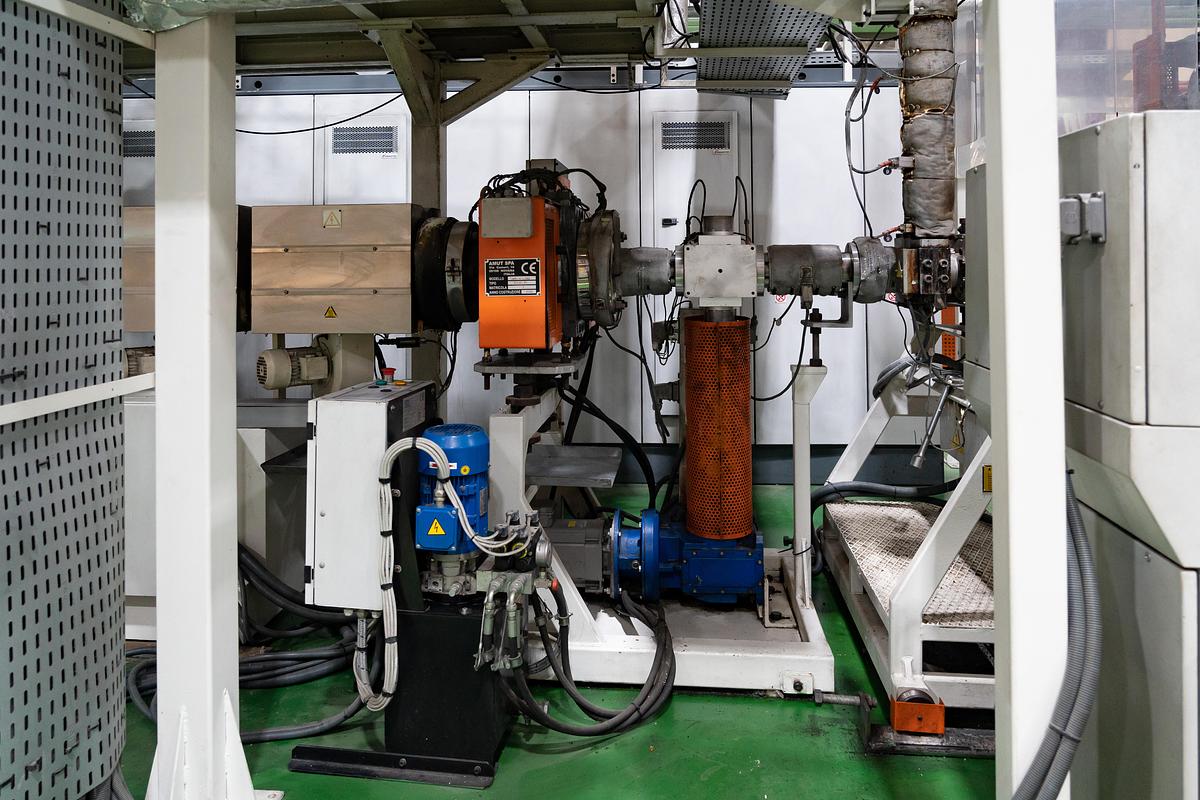

Coextruder: AMUT EA60 dia. 60 mm, L/D 33, 3-Heating Zones, 26.4 kW. Air Cooled

Drive Motor 59.5 kW

Auto-Screen Changer

A-B-A Black-box adapter

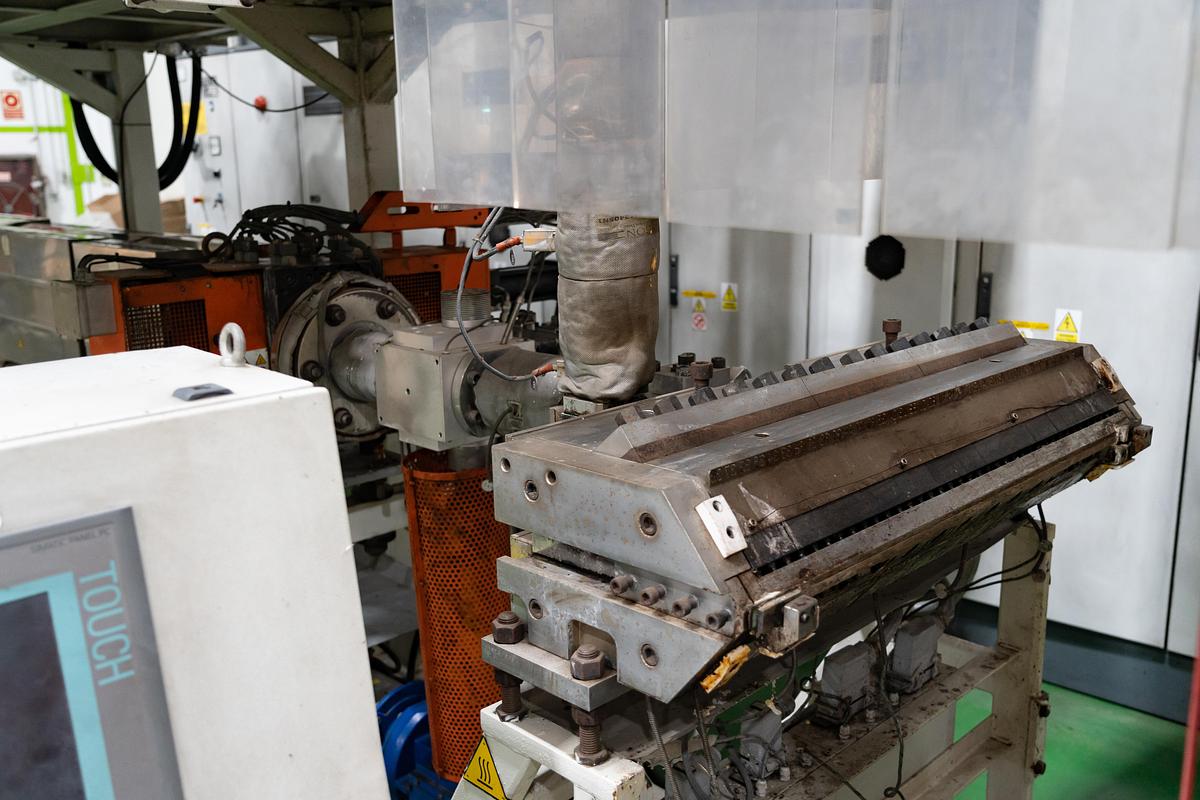

AMUT Flex-Lip Die, width 800 mm, thickness range 0.15 to 1.8 mm

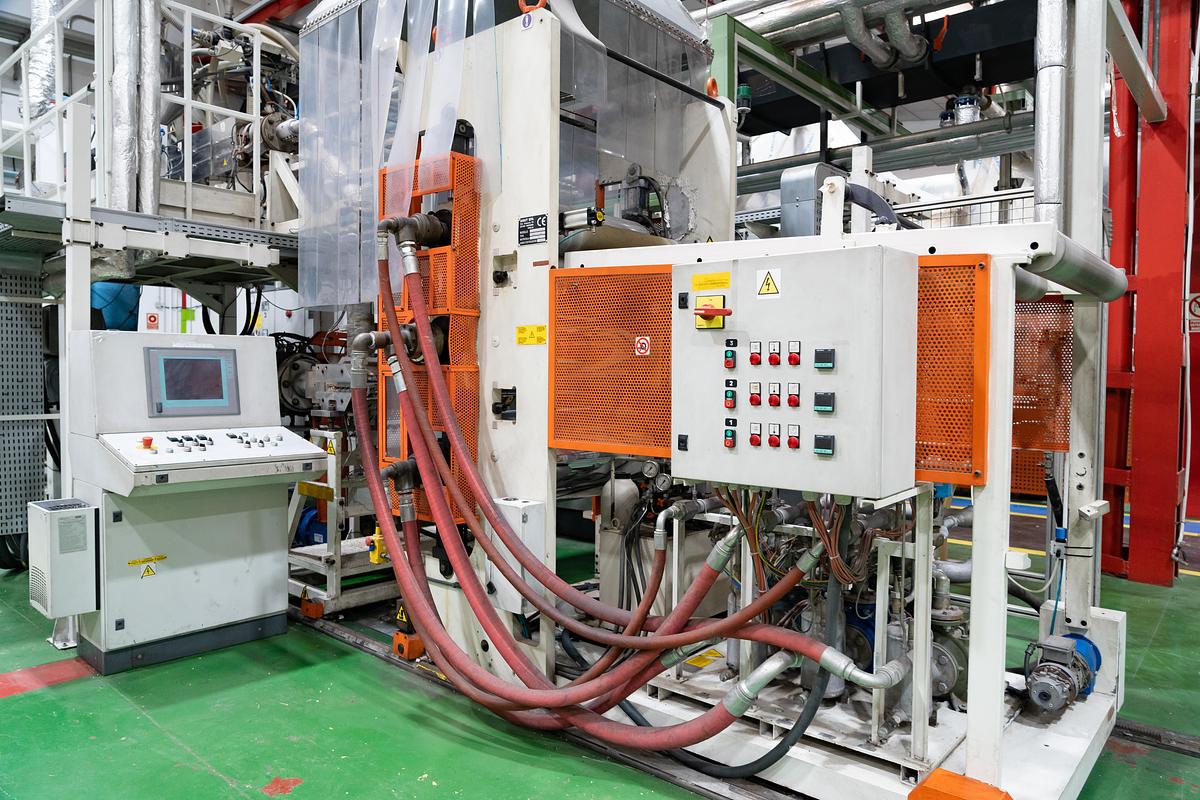

Complete Pumping Group

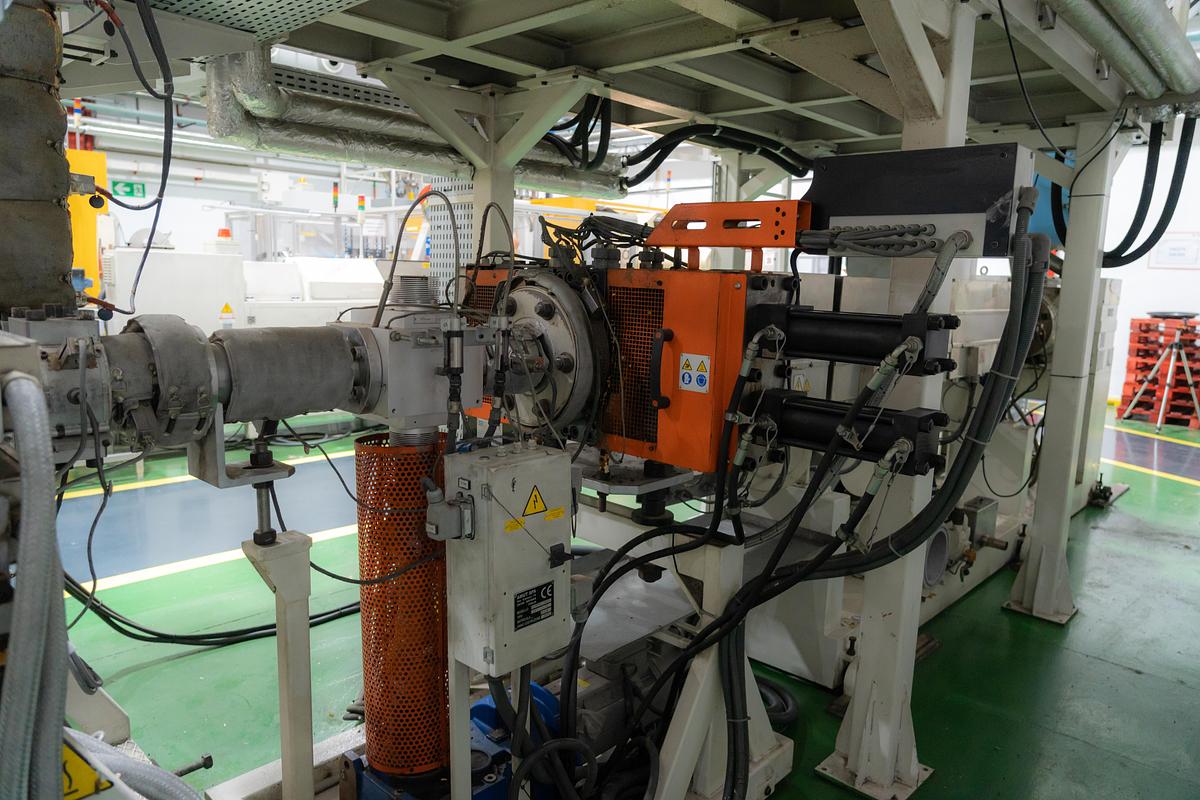

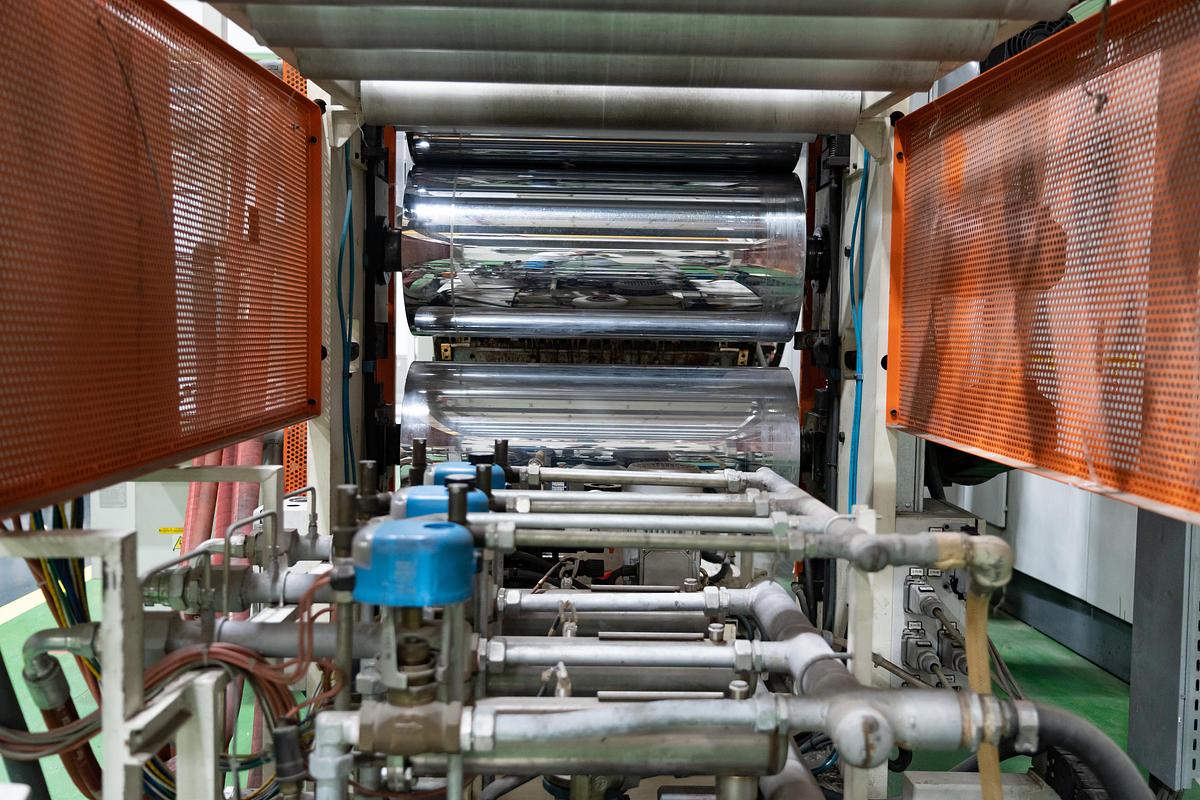

3-Roll Polished Chrome Cooling Stack width 1000 mm, dia. of Rolls 450, 450, 450 mm

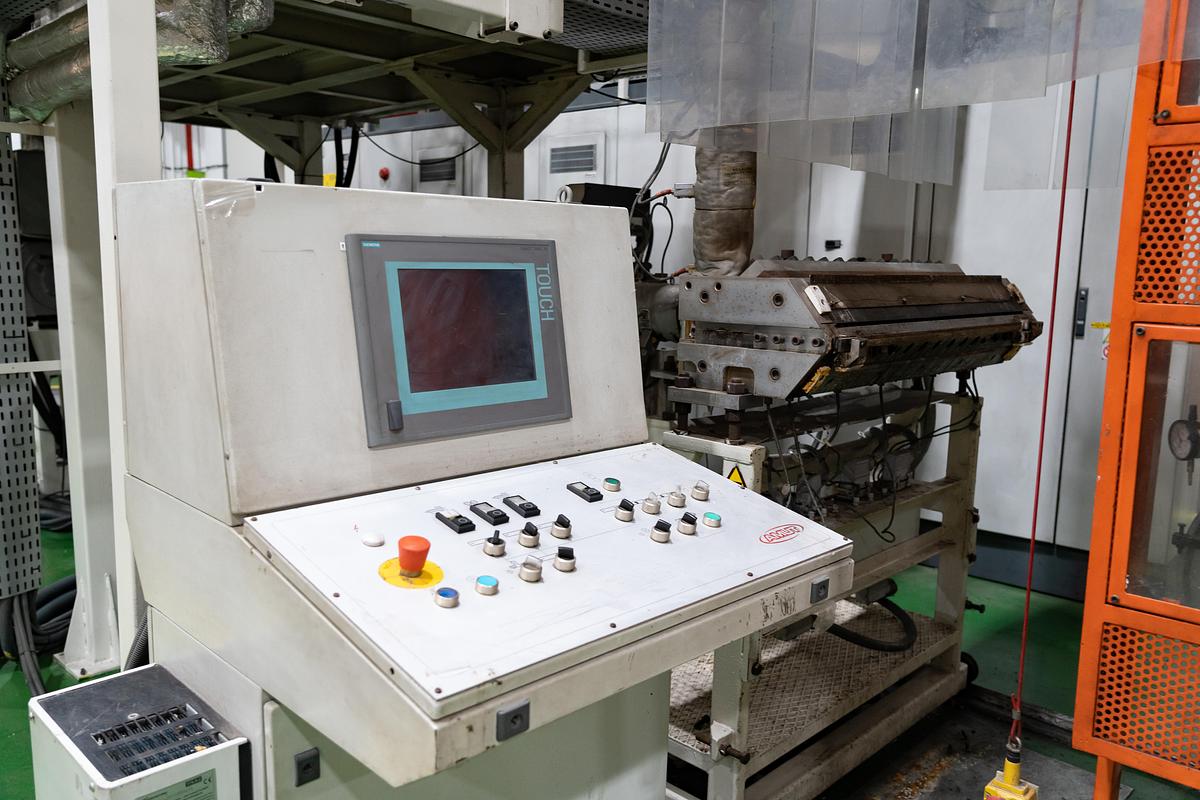

Control-desk with Siemens SIMATIC PANEL PC - TOUCH HMI

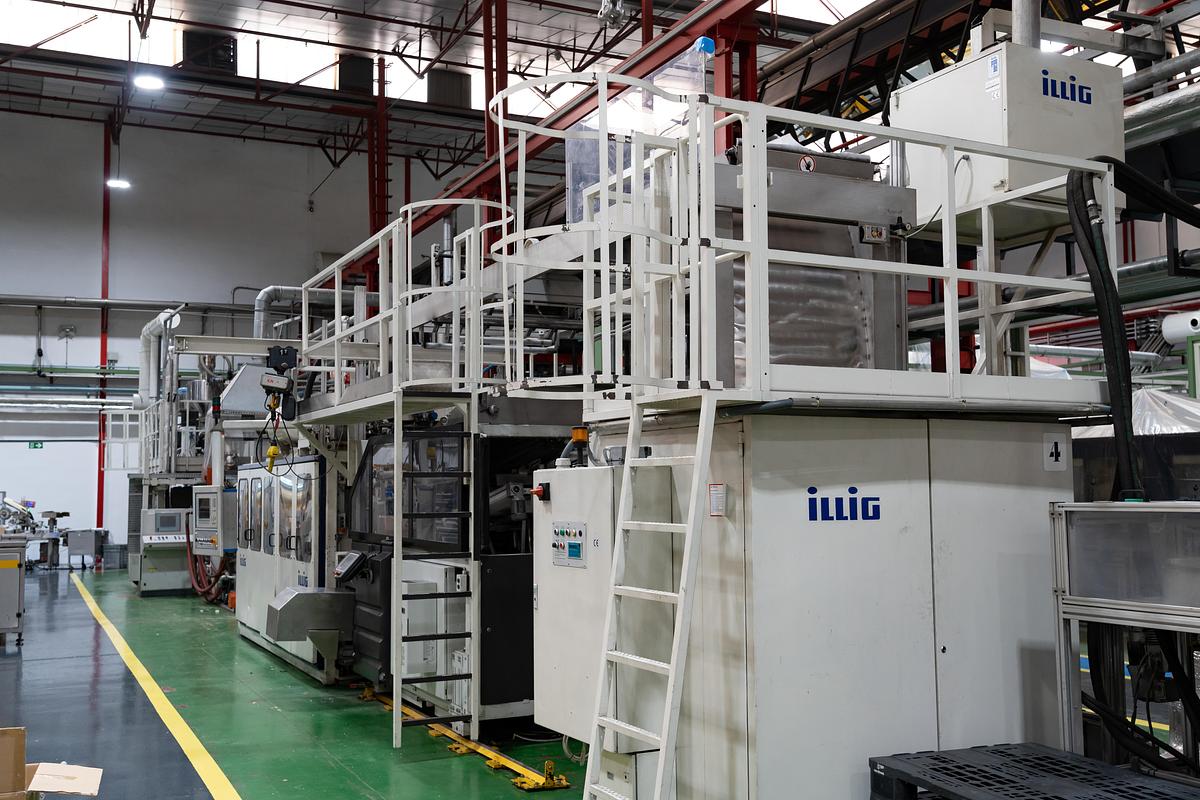

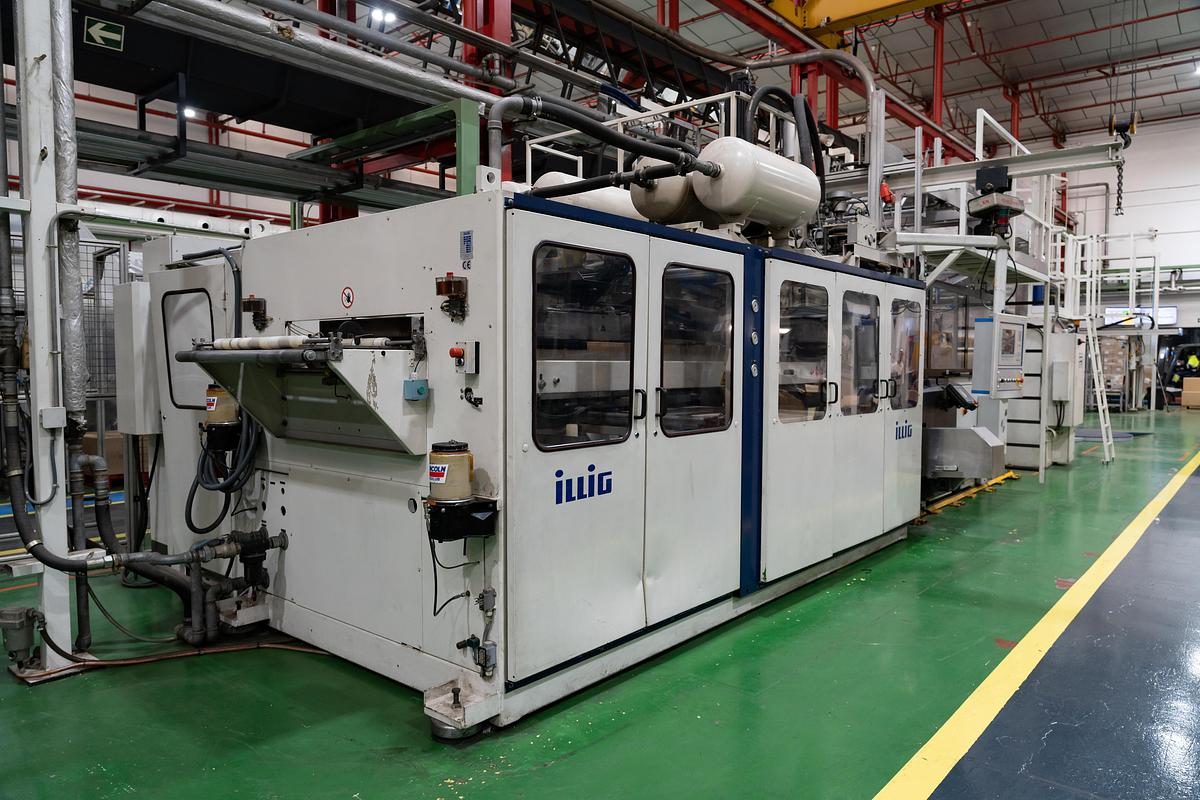

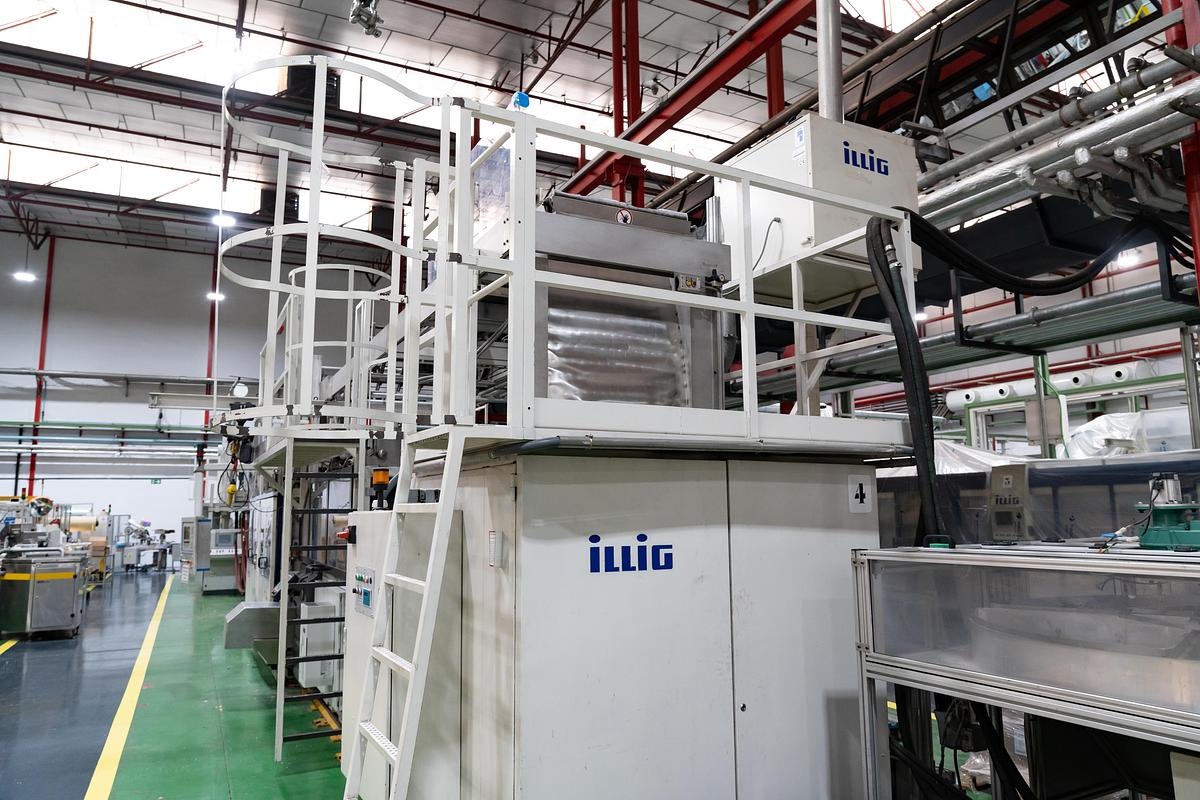

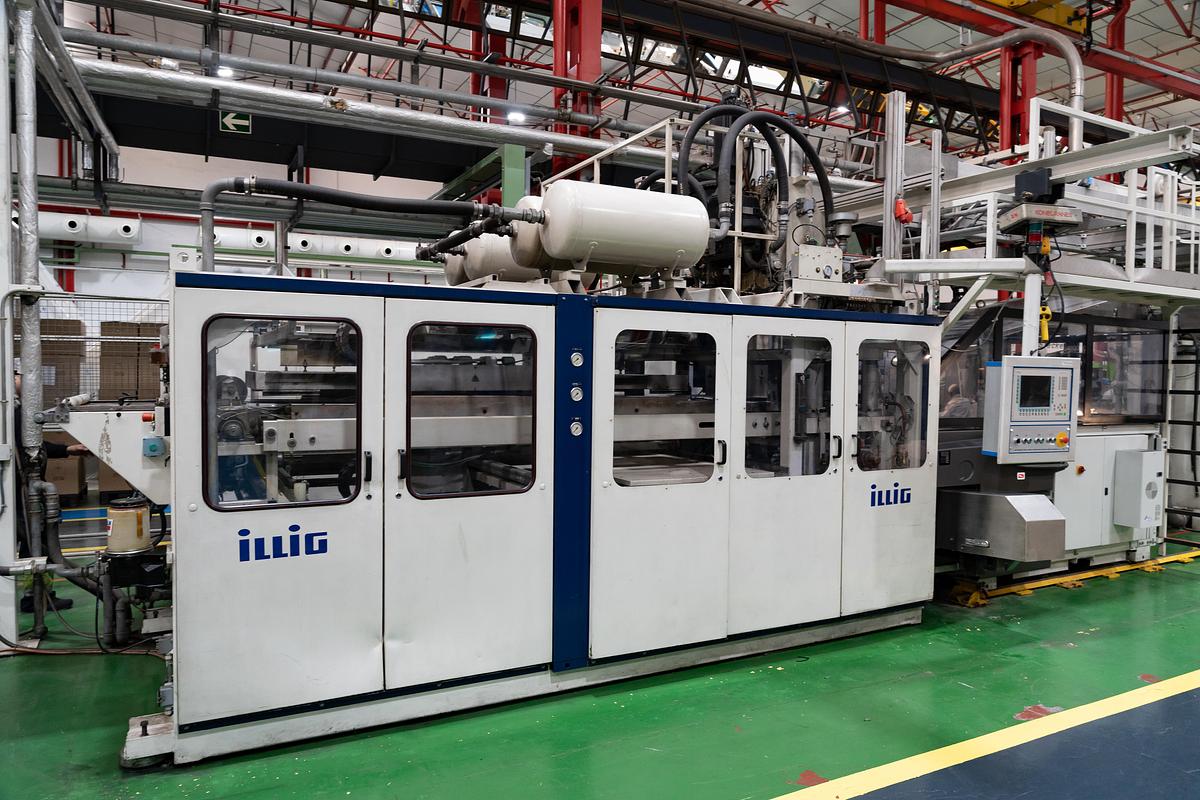

Inline ILLIG RDM75K, age 2008:

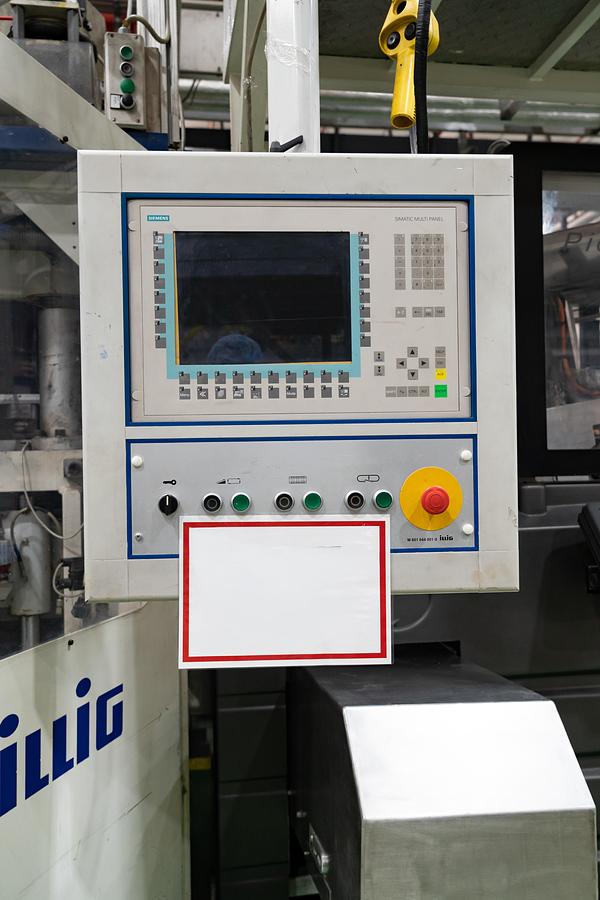

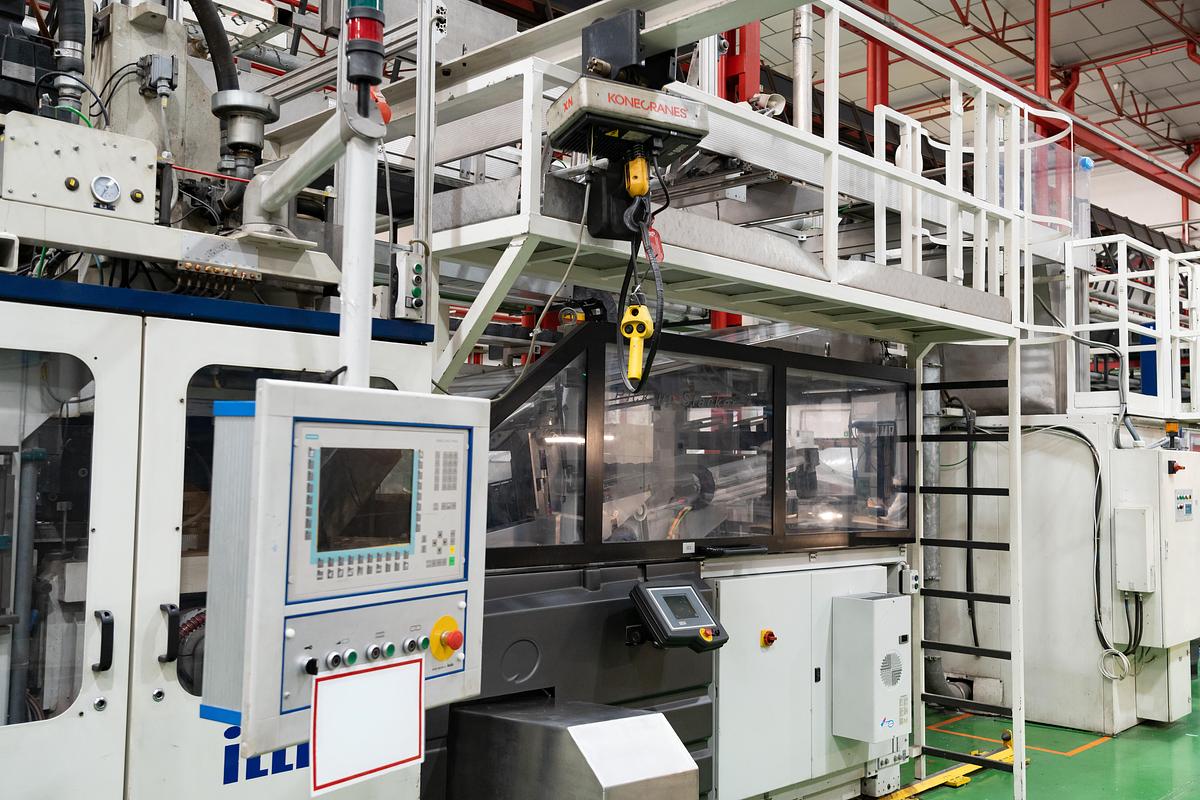

Siemens SIMATIC MULTI PANEL HDMI

Thermoformer with auto-start facility

Indramat Servomotor Indexing

Max. material width 750 mm

Max. Indexing length 480 mm

Top & Lower heaters, total connected load top & bottom heaters 111.3 kW

Auto Transport Rail Spreading for PP

Sheet Sag Control

Max. Forming Area 700 x 450 mm

Servomotor Plug Assist

Max. Part height 150 mm

Max. Mold closing force 40,000 daN

Auto Lubrication system

Siemens S7 PLC Controls

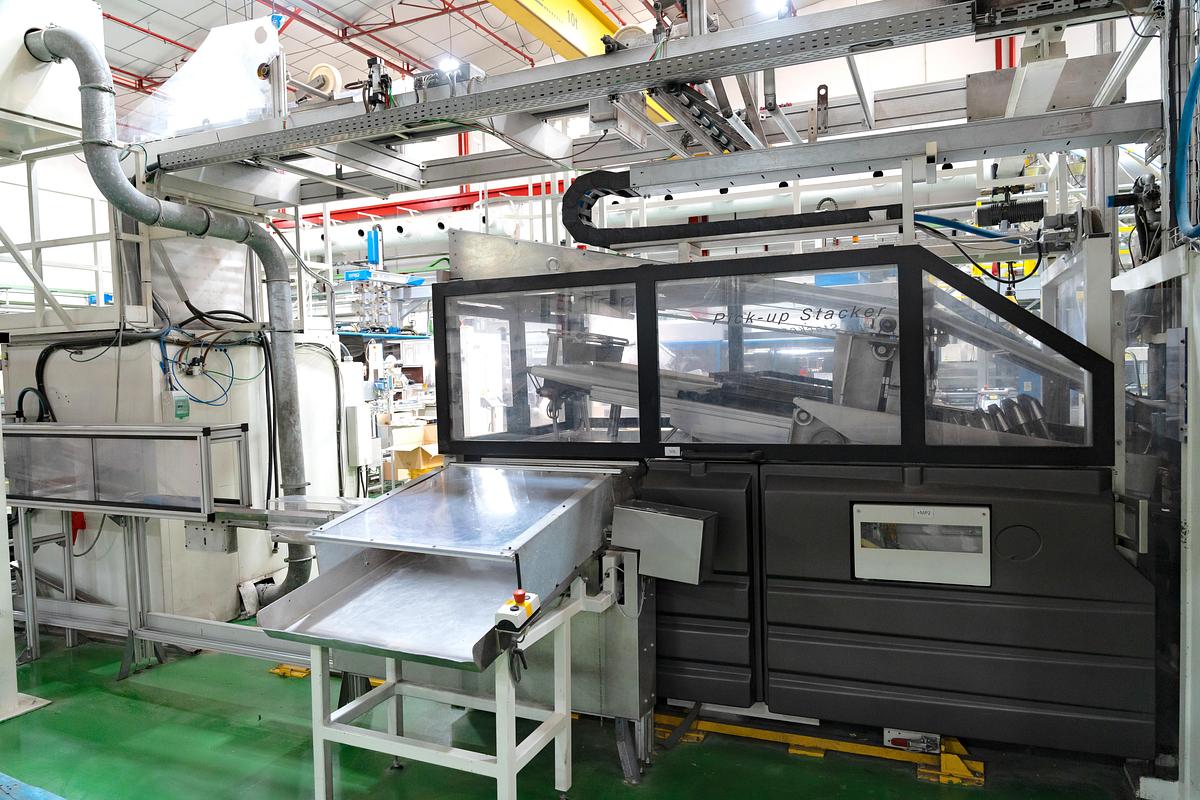

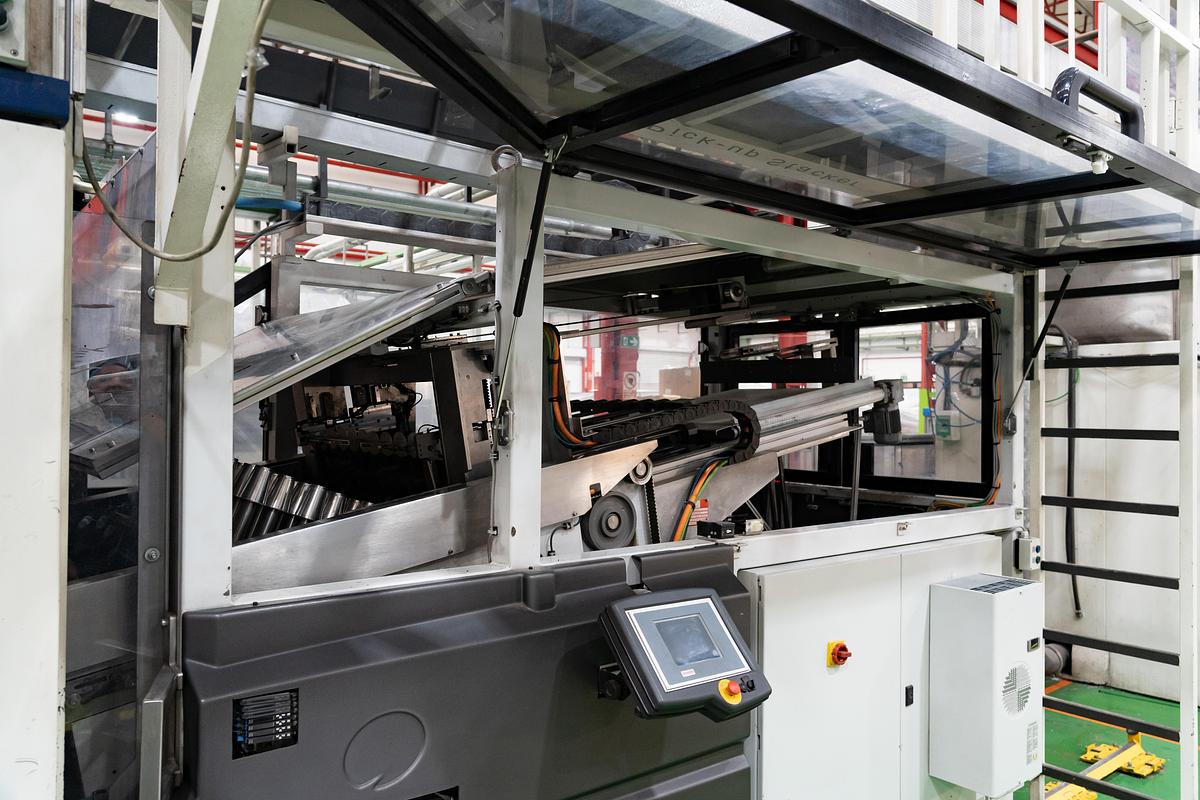

Mould & Matic Pick-up-stacker, automatic Cup stacker/ counter

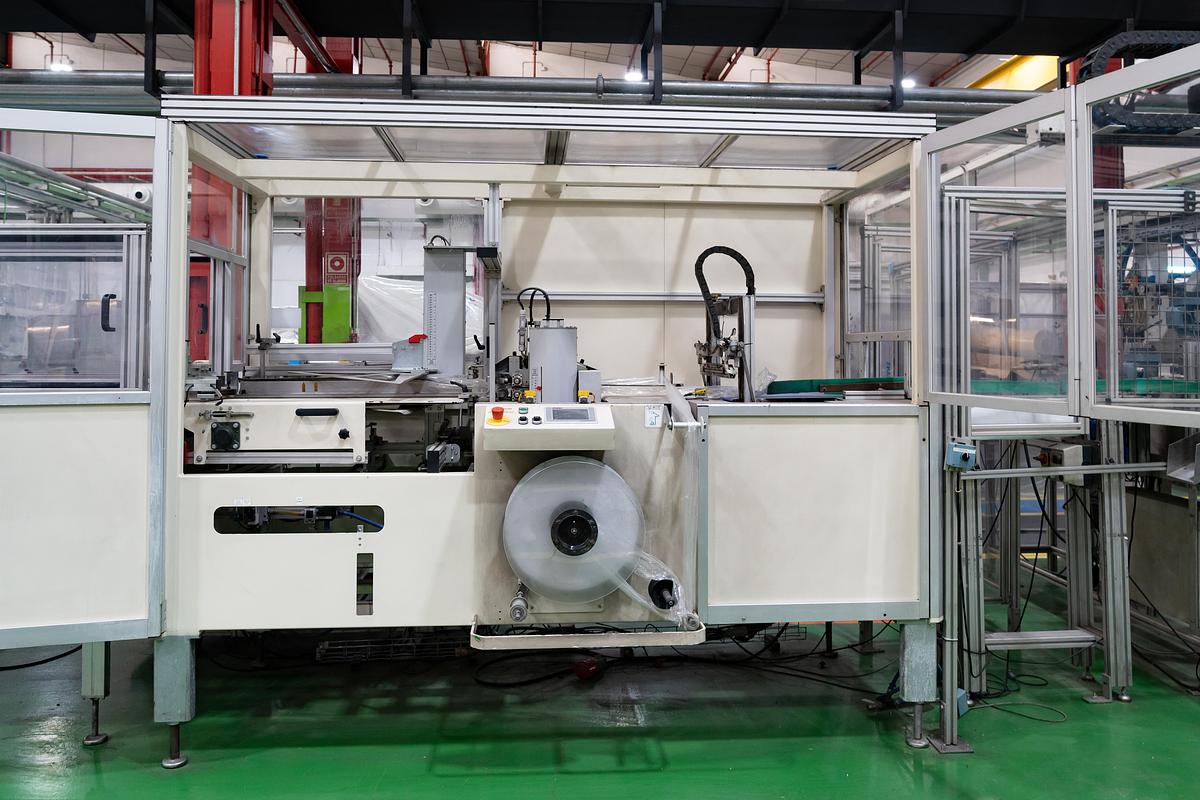

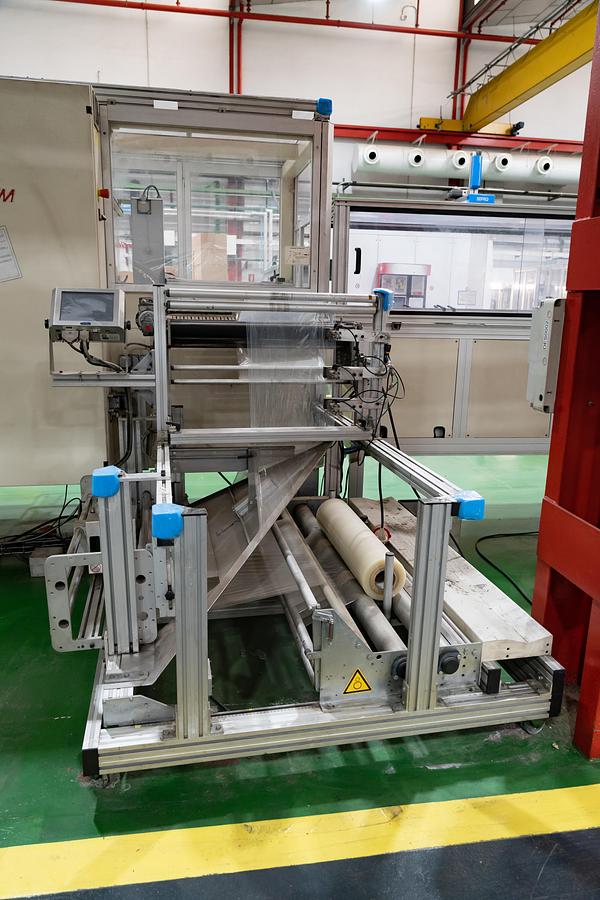

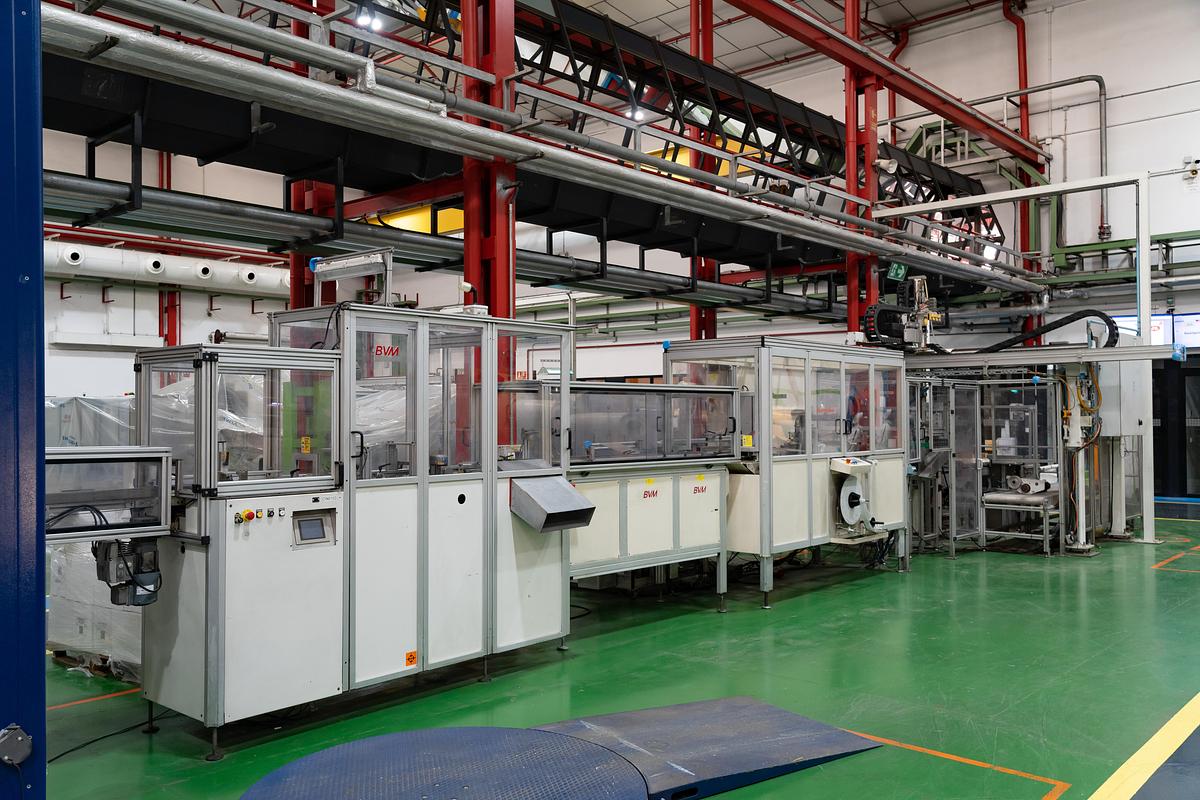

BVM Compacta Inline wrapping unit for counted/ Stacked Cups

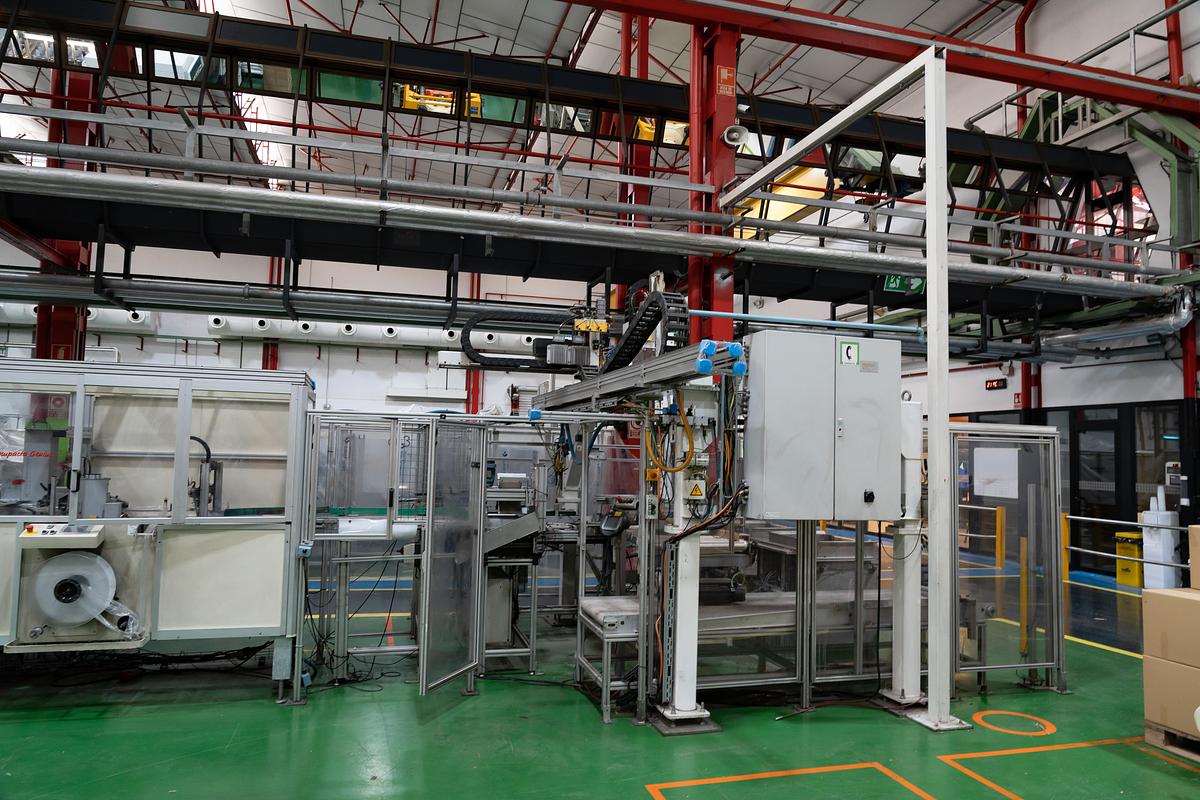

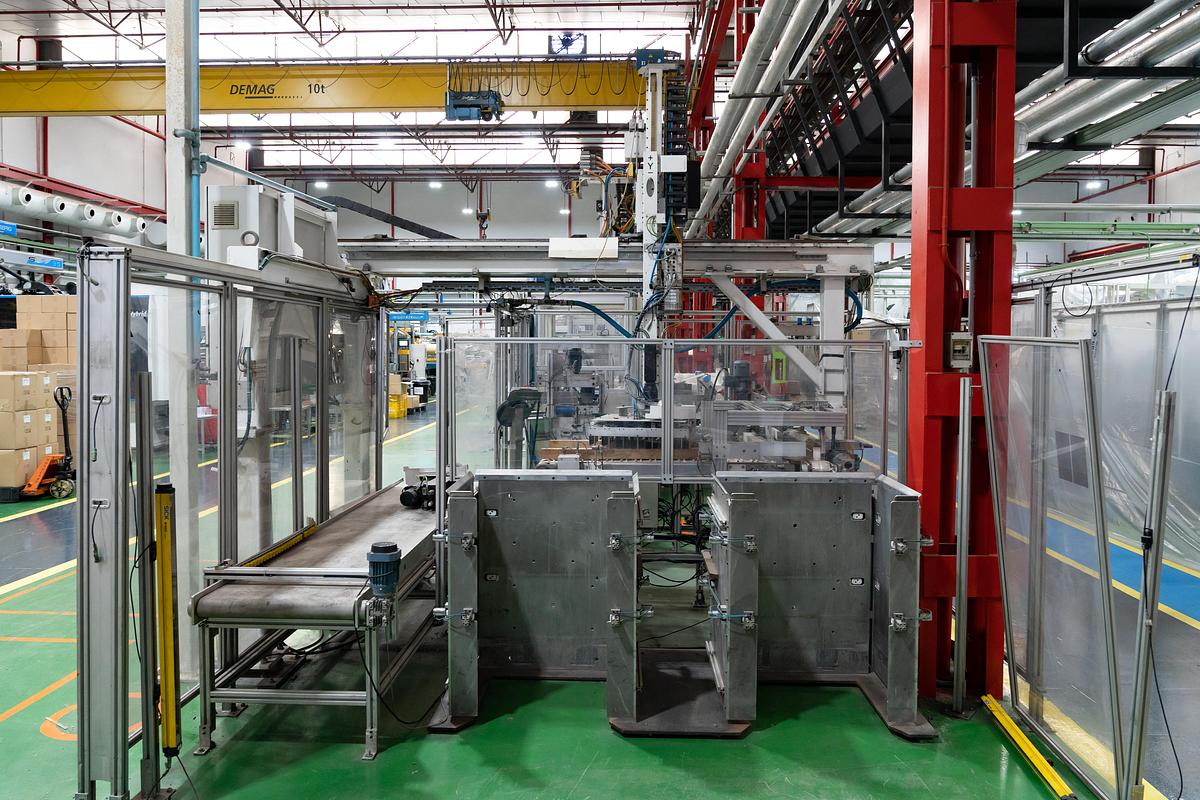

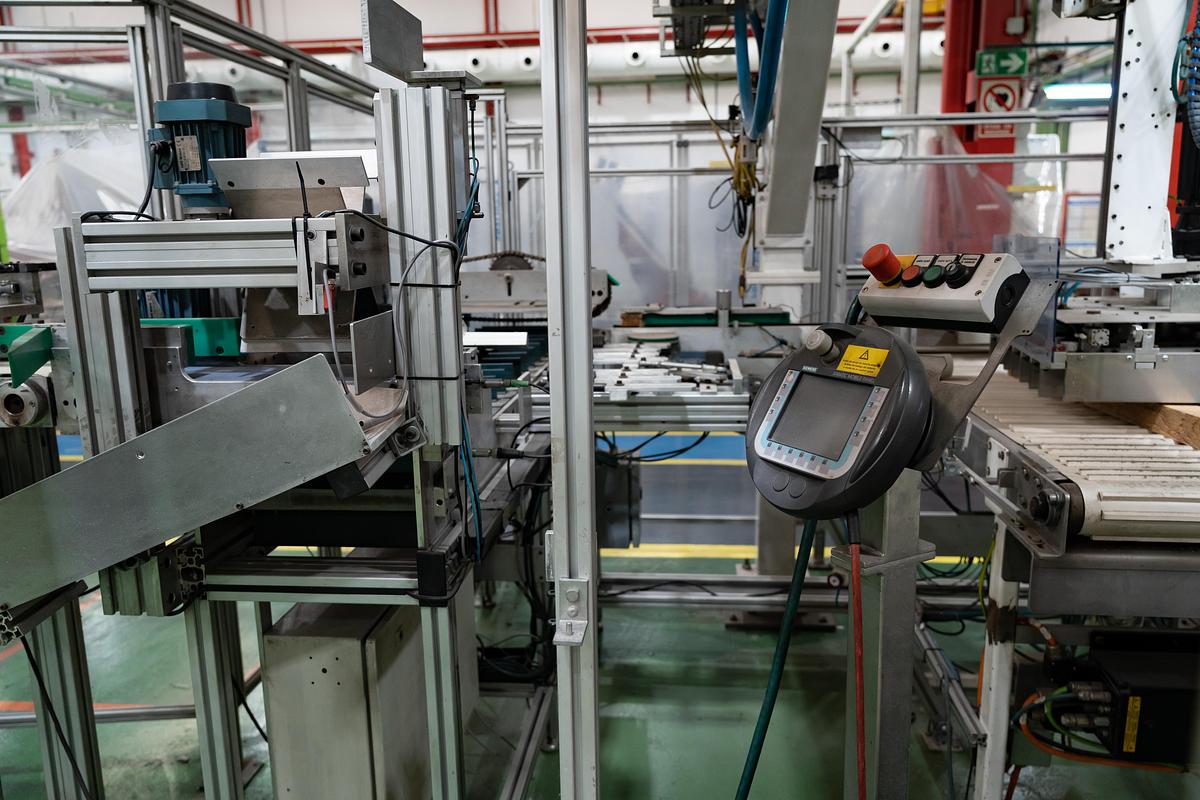

KUKA Robot Unit for packing sleeved Cups into Cartons

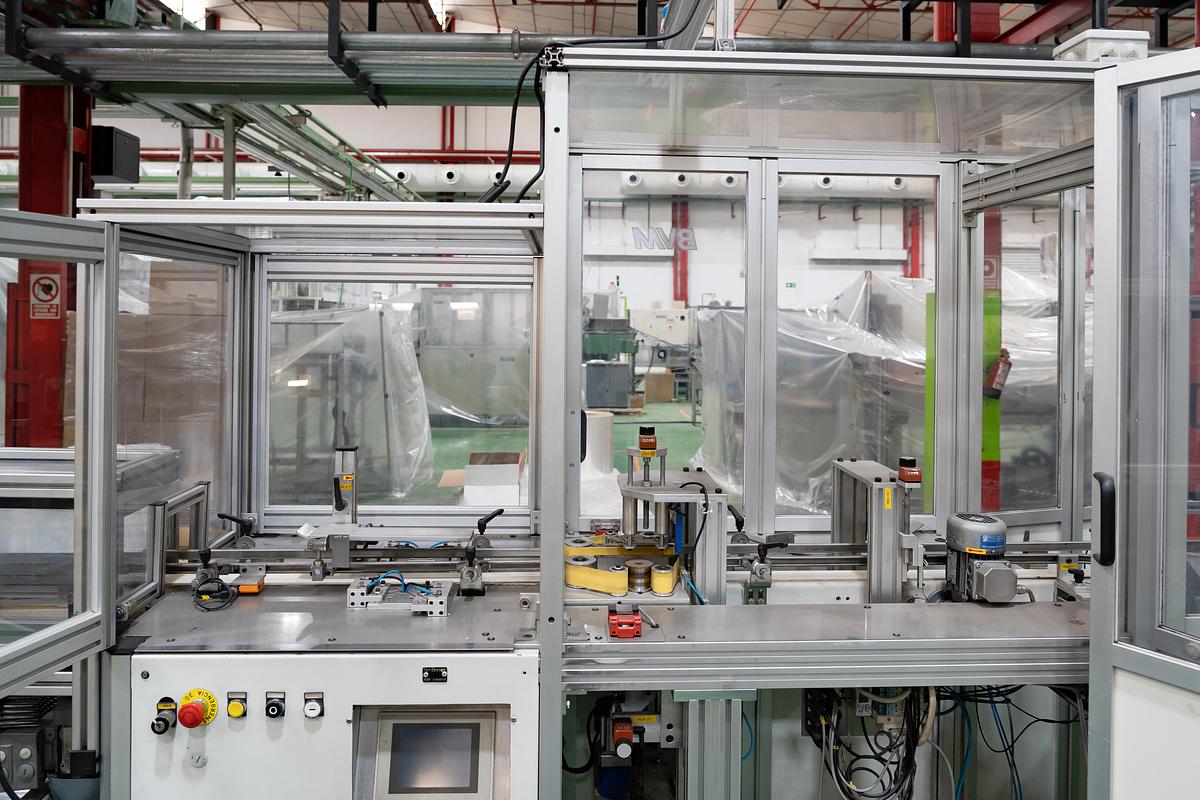

Carton top flap closing and sealing with adhesive Tape.

The above two Lines are well maintained, as such in top condition !

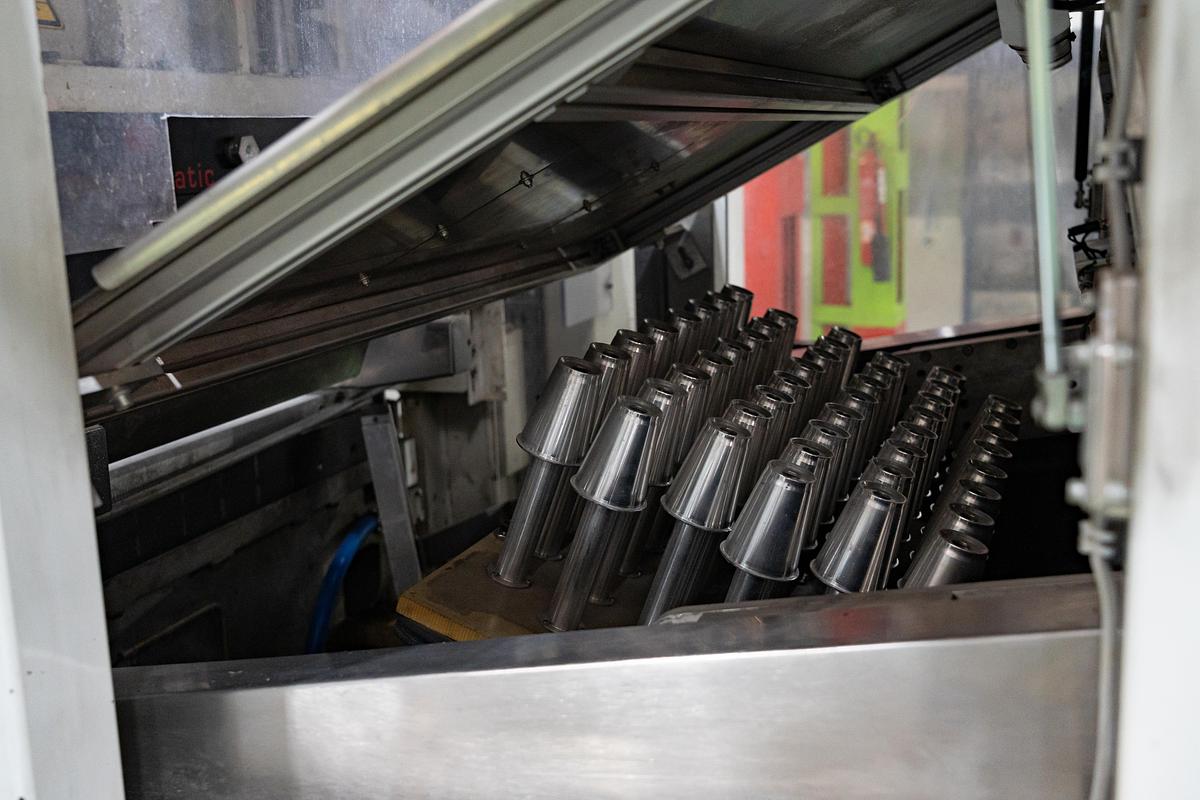

Inclusive of the following Cup Molds:-

Mould & Matic Drinking Cup Mold, age 2007, 330 cc, 32 Cavities,

ILLIG Drinking Cup Mold, age 2007, 95 cc, 45 Cavities,

ILLIG Drinking Cup Mold, age 2007, 235 cc, 35 Cavities,

ILLIG Drinking Cup Mold, age 2007, 380 cc, 30 Cavities,
