2010 AMUT & ILLIG, AMUT E100 Coextruder/ Inline ILLIG RDK80

2 x Complete Inline AMUT E100 Coextrusion Lines, age 2010 + ILLIG RDK80 Thermoformers, age 2008

(Both Lines with the same age & exact same Technical specifications)

Details are as follows:-

Amut E100 Coextrusion Line age 2010 consisting of:

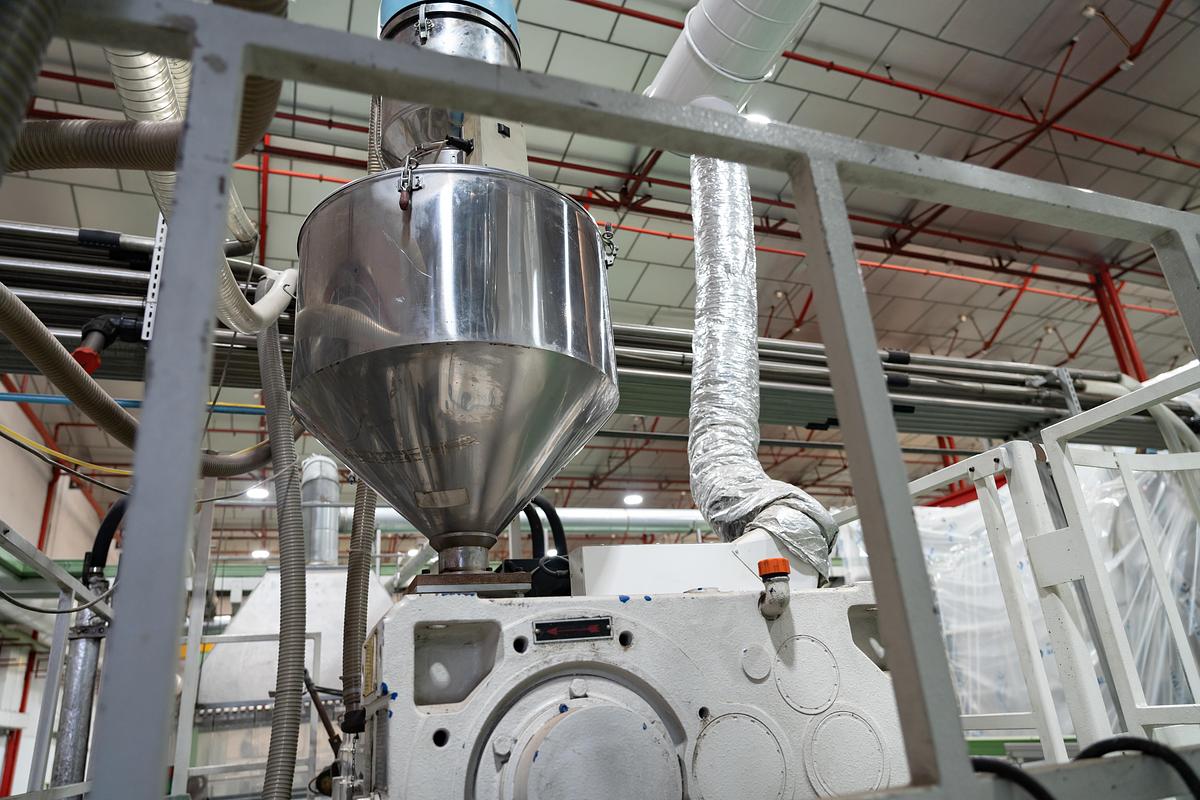

AMUT 4-Part Mixing Dosing unit with integrated vacuum pump

Main Extruder AMUT EA100: dia. 100 mm, L/D 35, 8 Heating Zones - 54.9 kW, Air cooled

Drive Motor 178 kW

Degassing Pump 2.2 kW, 35 meter-cube/ hr

Auto-Screen Changer

Melt Pump

Coextruder: AMUT EA60 dia. 60 mm, L/D 33, 3-Heating Zones, 26.4 kW. Air Cooled

Drive Motor 59.5 kW

Auto-Screen Changer

A-B-A Black-box adapter

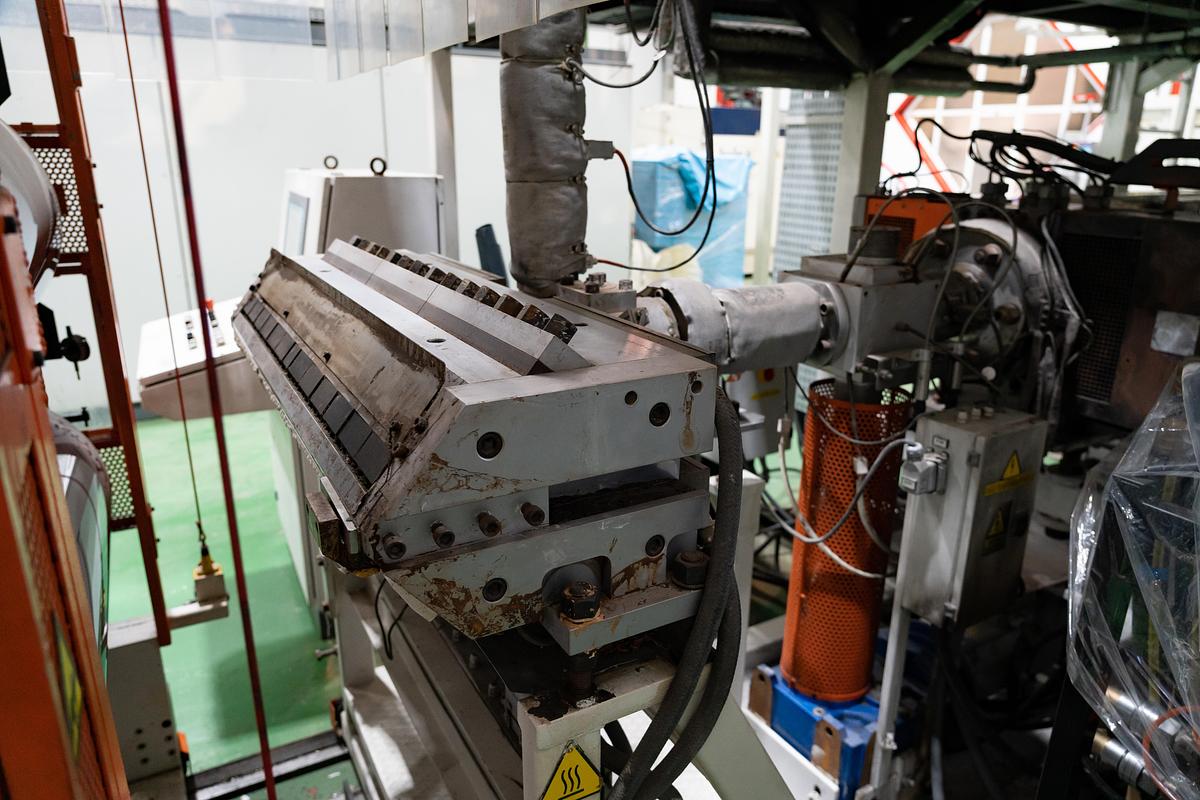

AMUT Flex-Lip Die, width 800 mm, thickness range 0.15 to 1.8 mm

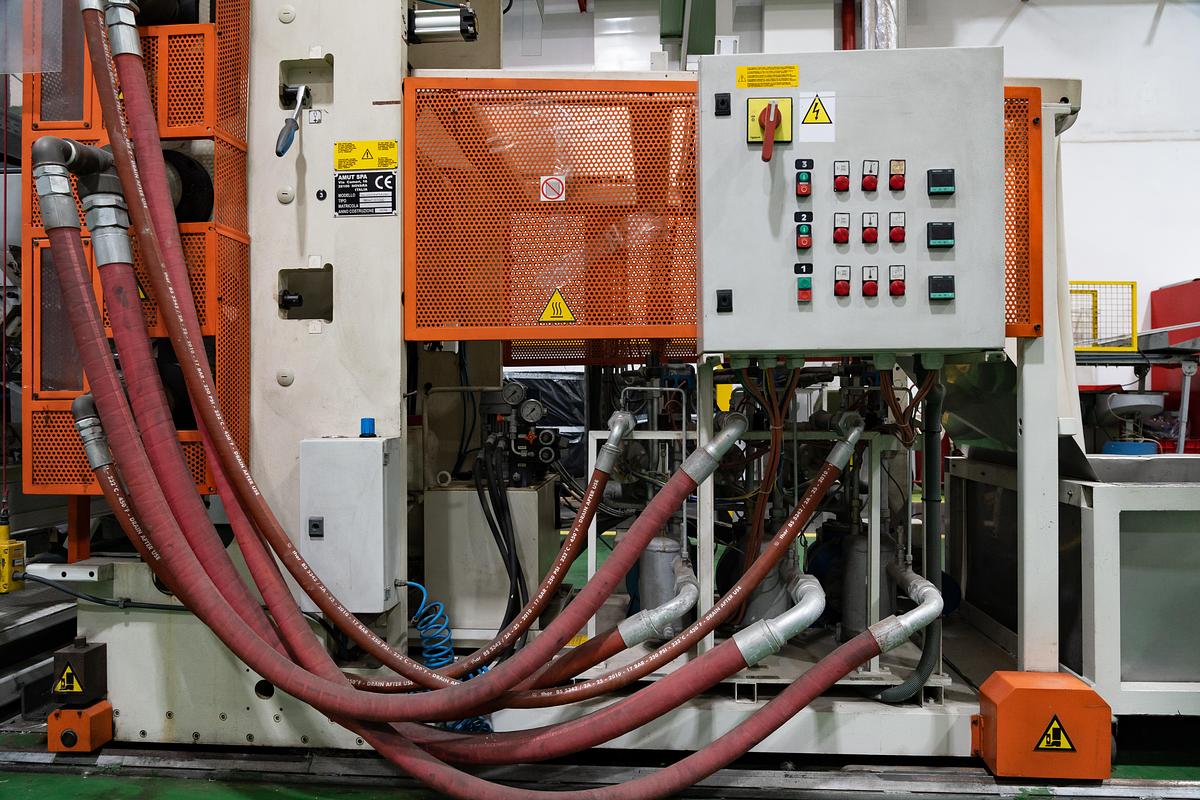

Complete Pumping Group

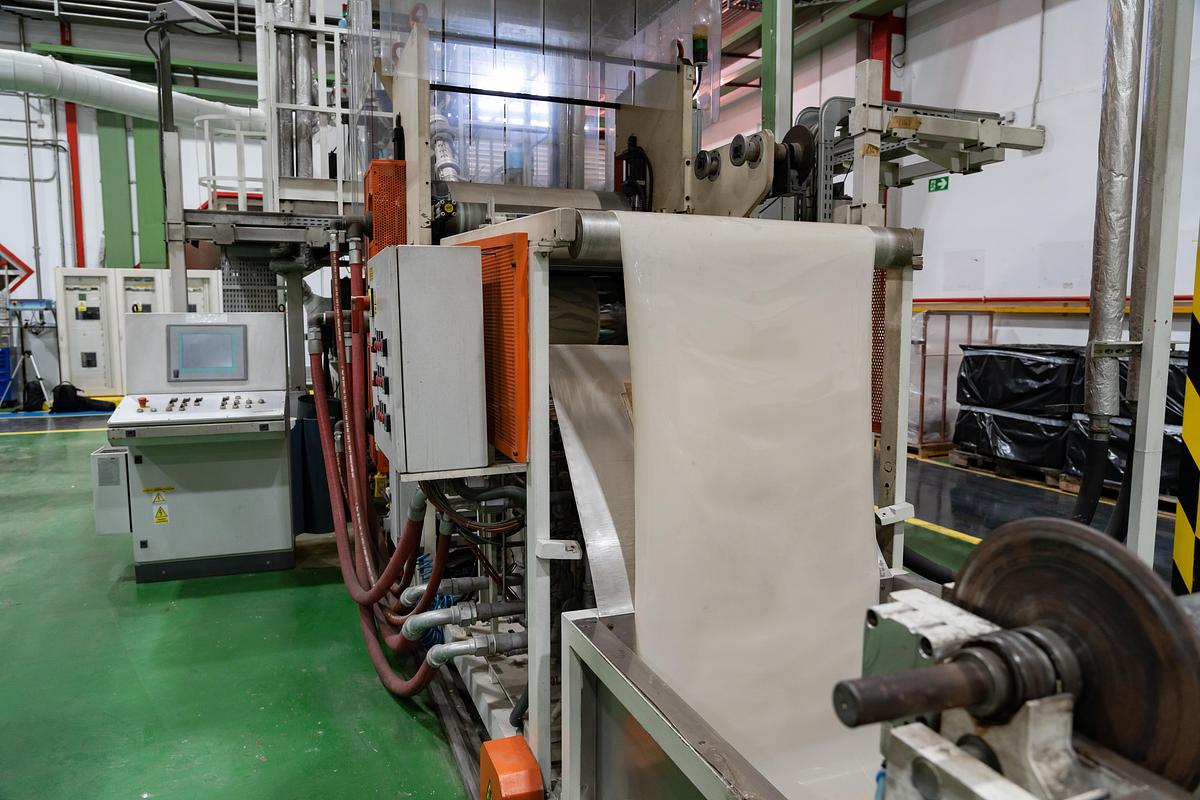

3-Roll Polished Chrome Cooling Stack width 1000 mm, dia. of Rolls 450, 450, 450 mm

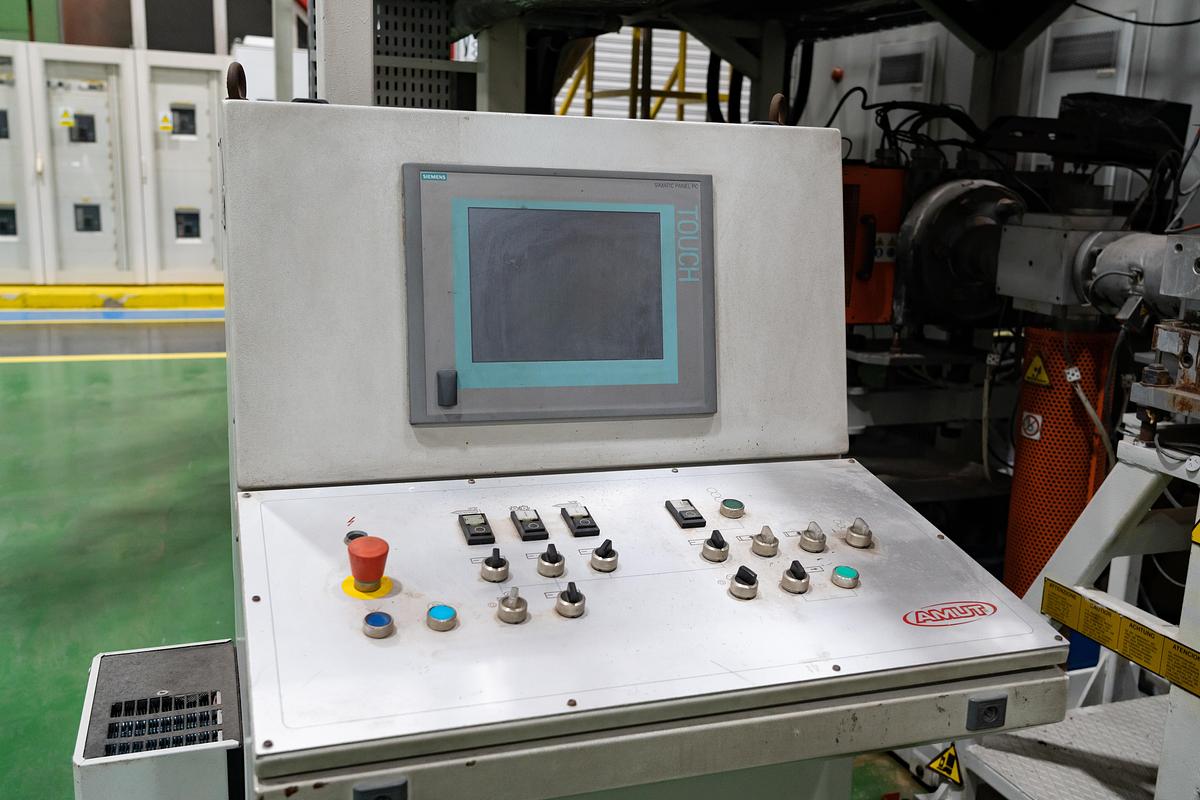

Control-desk with Siemens SIMATIC PANEL PC - TOUCH HMI

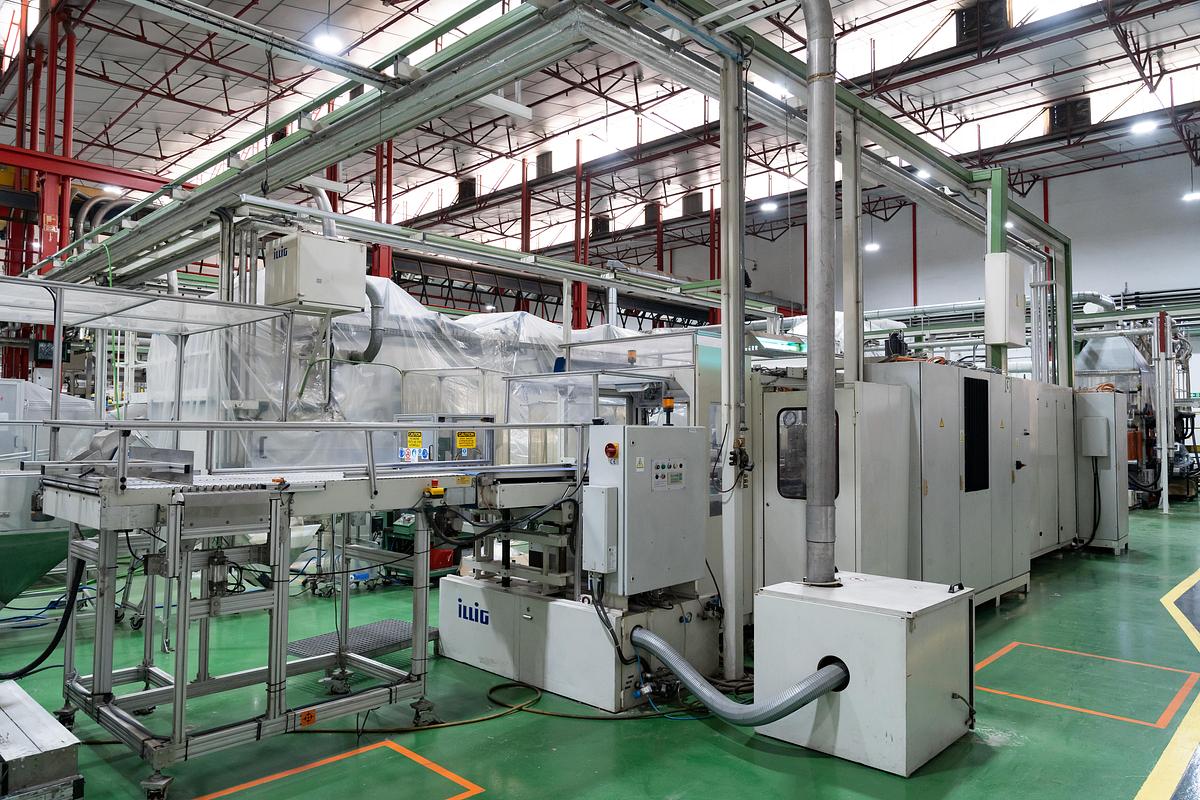

Inline ILLIG RDK80 age 2008:

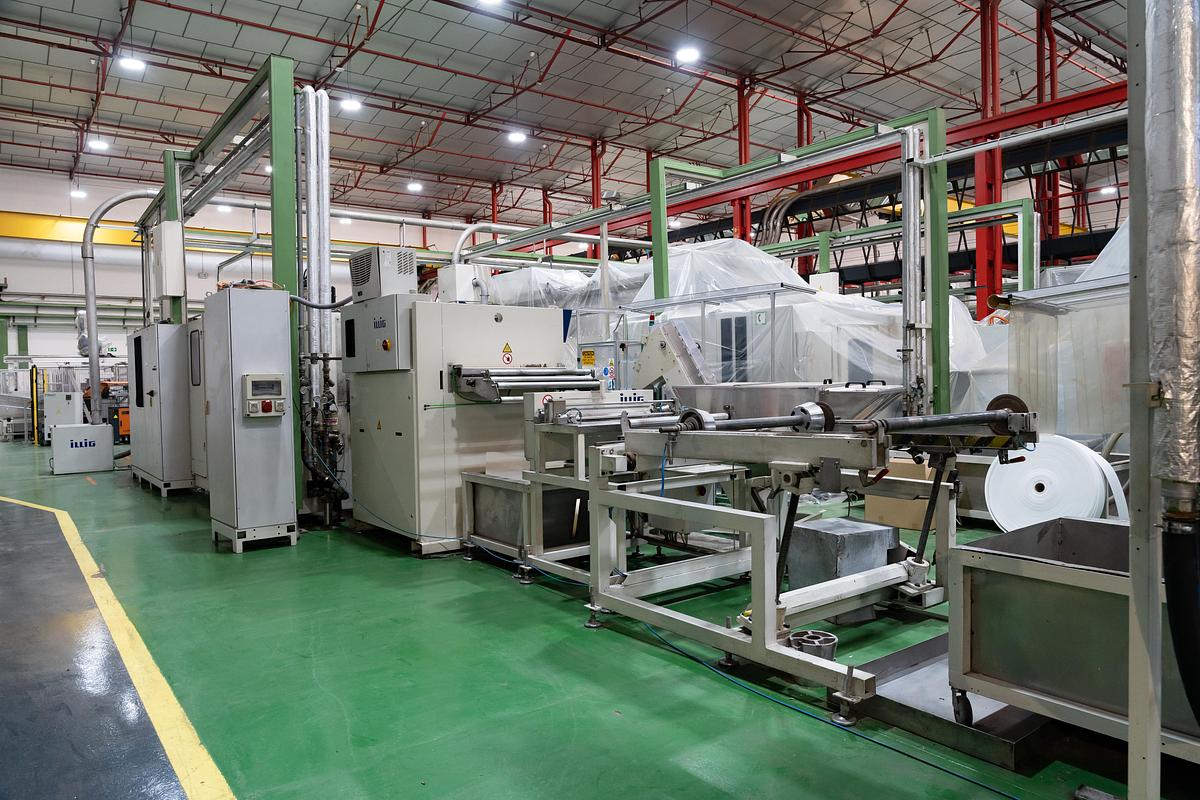

Unwind Stand ILLIG RO800b

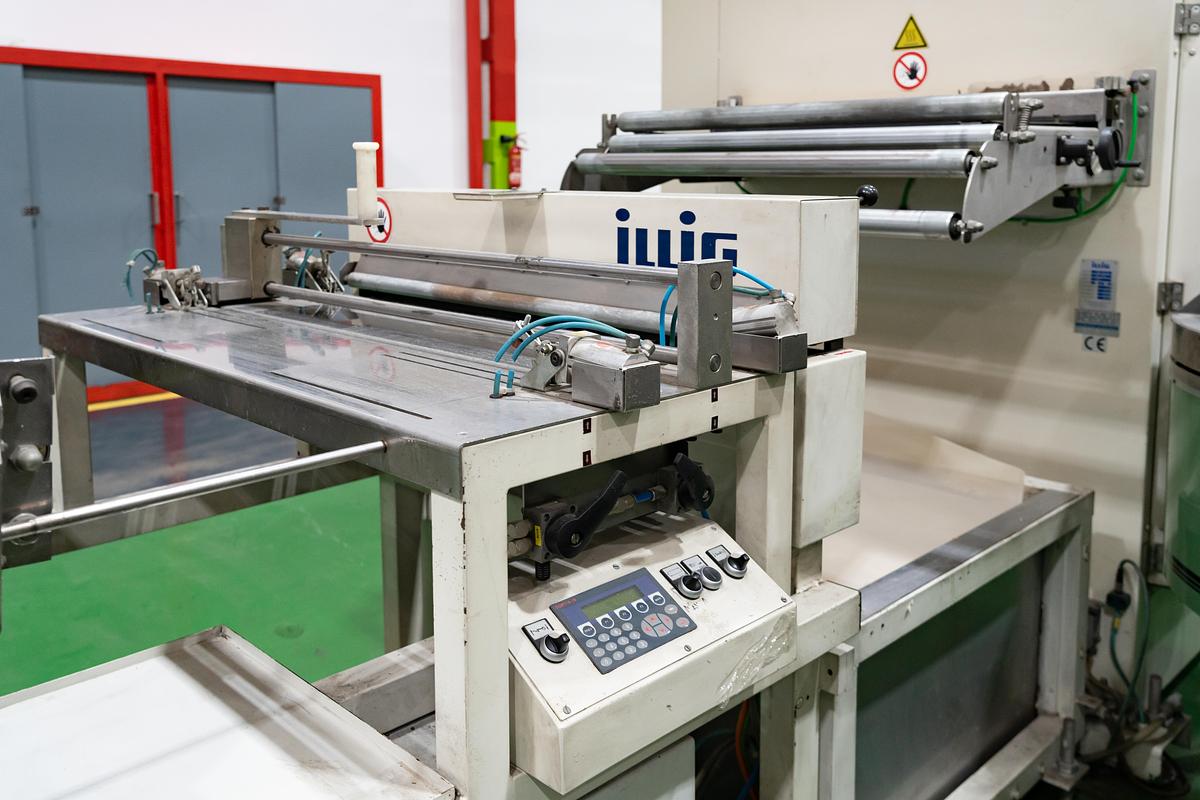

Preheater ILLIG VHW 90/2b, 2 x Rolls, width 900 mm

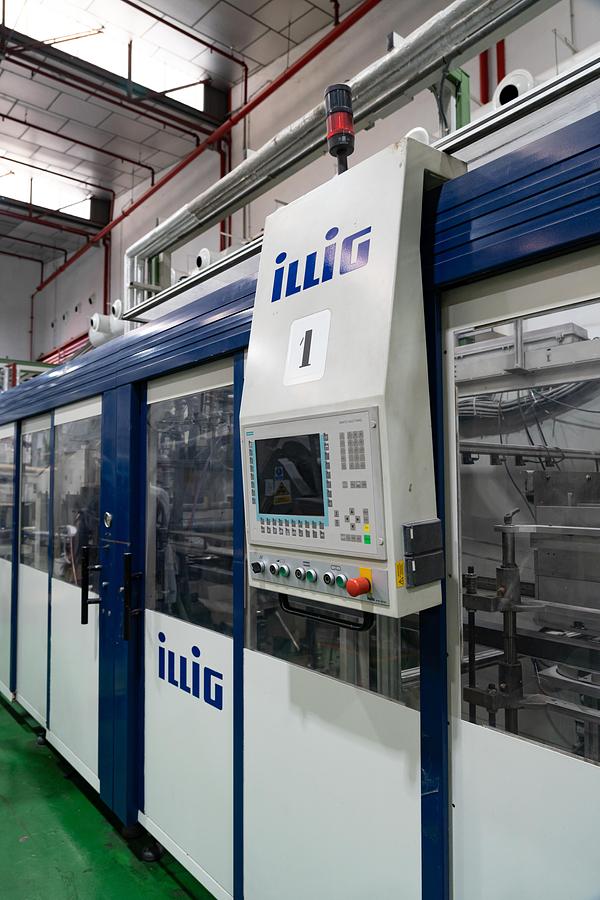

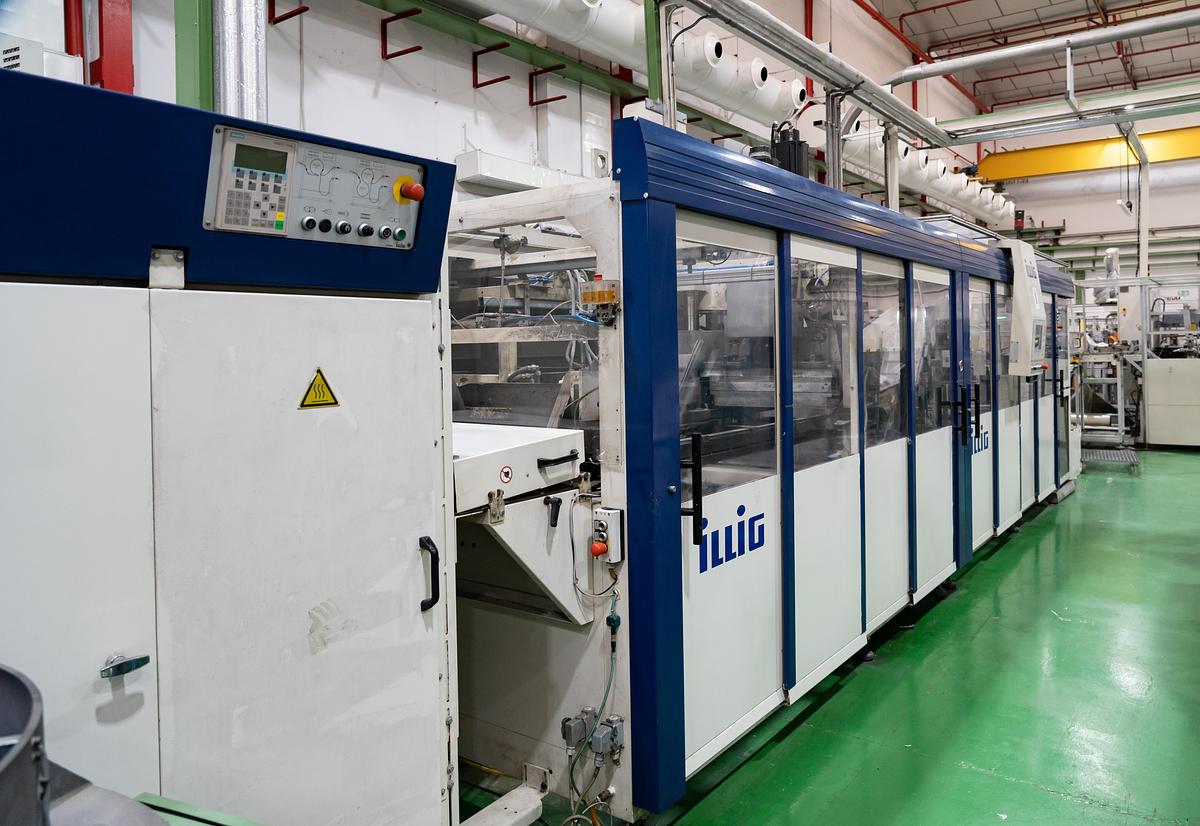

ILLIG RDK80:

Maximum film width 805 mm

Servomotor Indexing

Max. Index 583 mm

Maximum film thickness 2.5 mm

Min. Foil thickness 0.18 mm

Sheet sag monitoring

Water-cooled transport rails

Upper and lower heating.

Upper heater 37.1 kW

Lower heater 37.1 kW

Servo motor combined forming / punching station

Max. Forming area (forming only) 756 x 565 mm

Max. Forming area (forming and punching) 743 x 552 mm

Max. Draw depth + / - 120 mm

Inline servo motor punching station

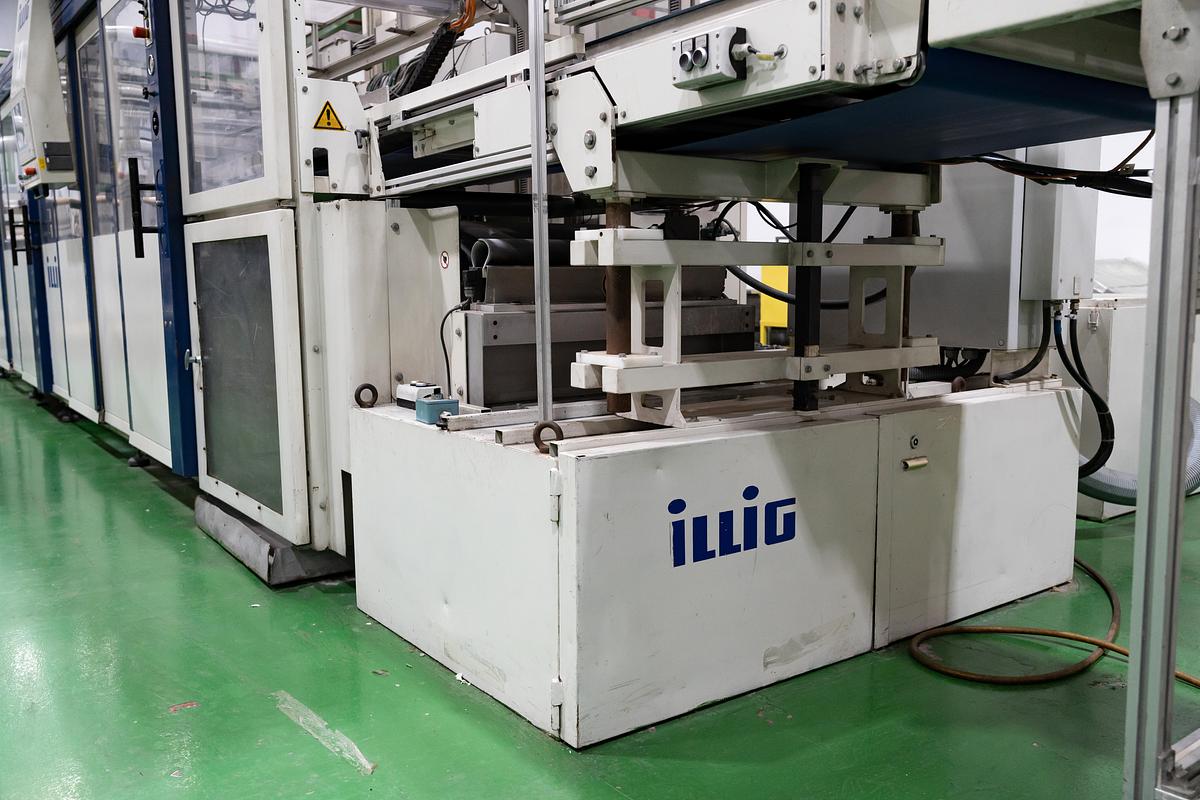

Counter / stacker station

Inline Grinder ILLIG RS75b with Illig FD74 Blower

Siemens S7 controls

Siemens SIMATIC MULTI PANEL HMI VDU.

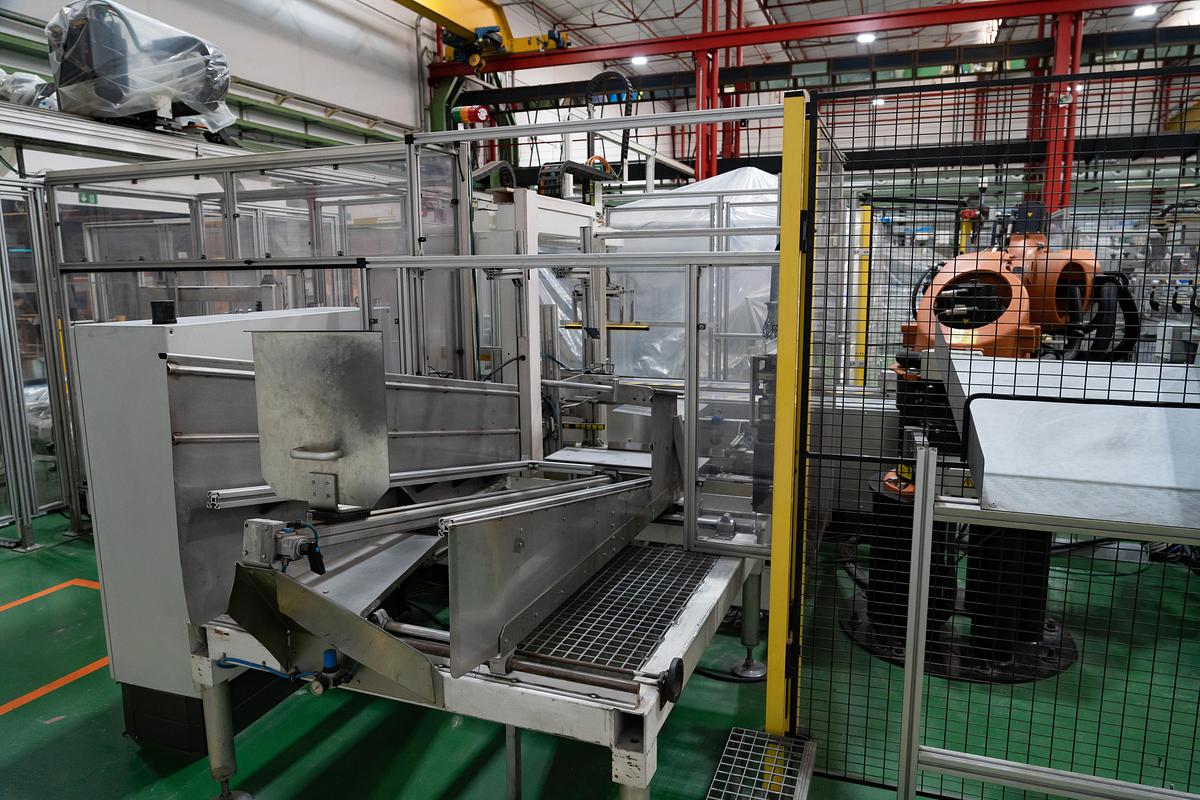

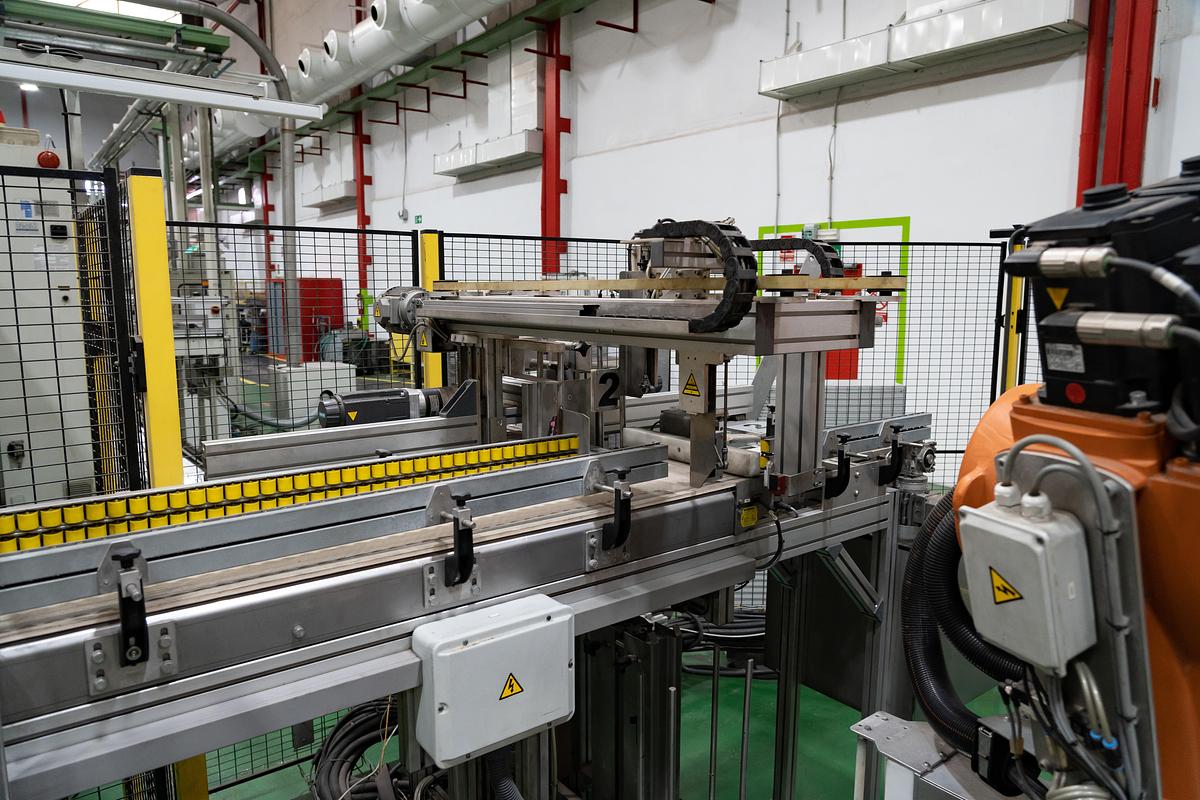

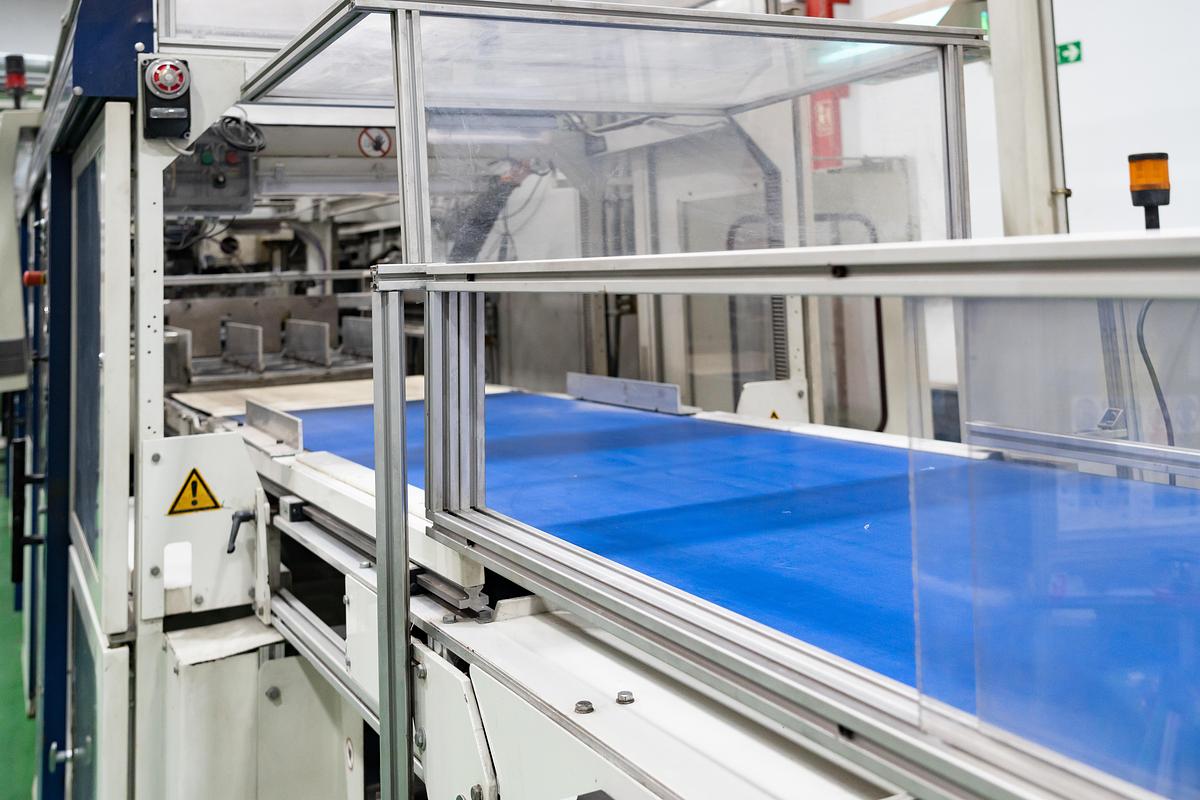

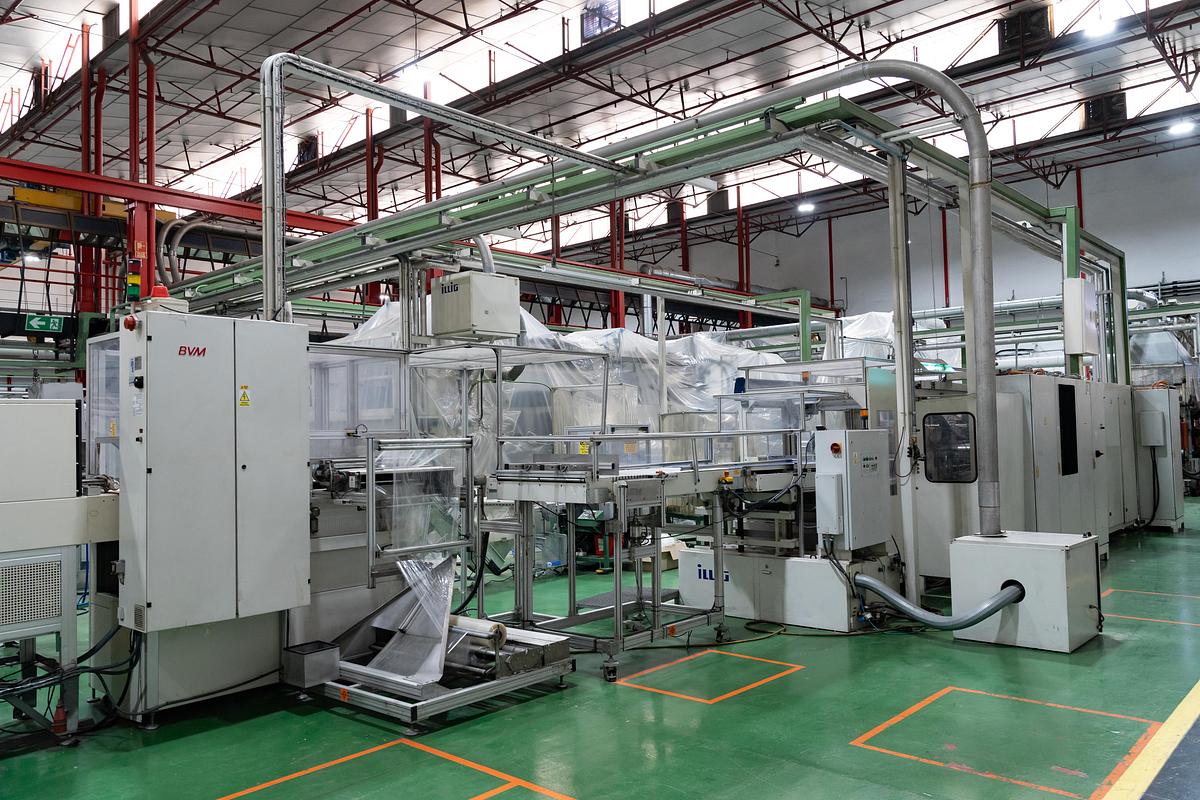

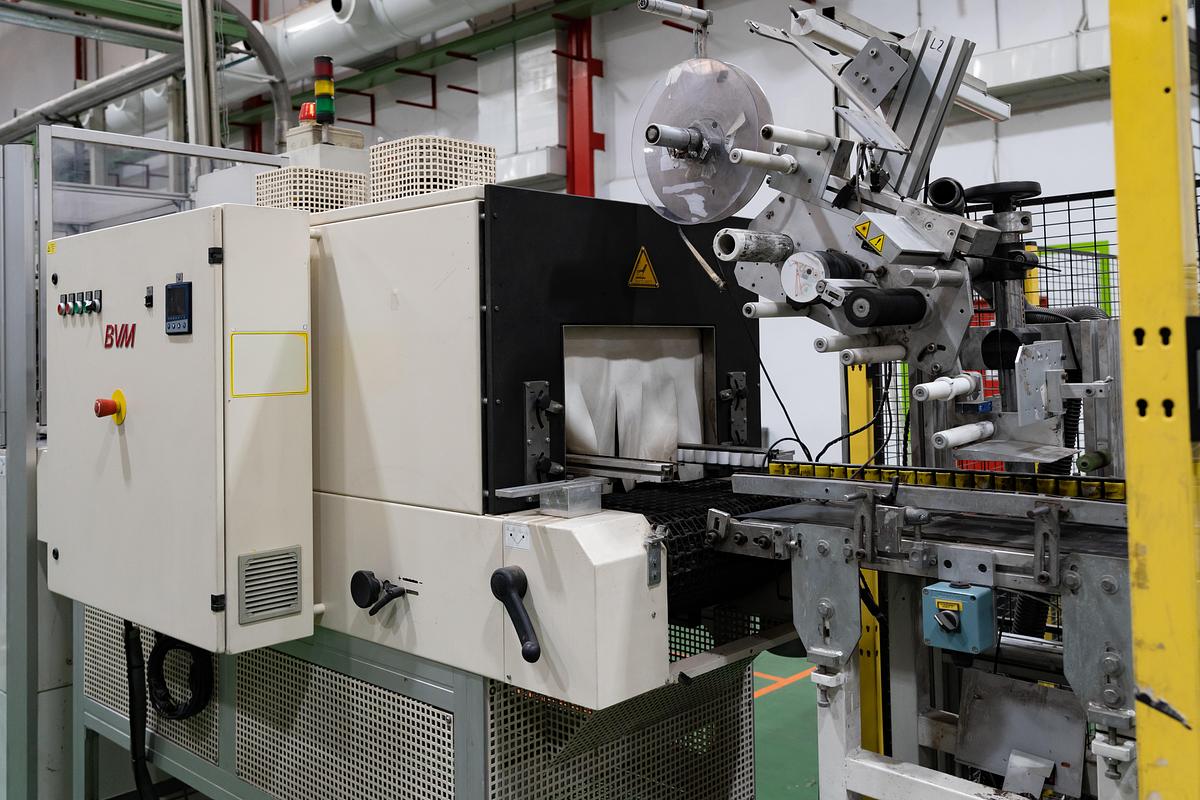

BVM Inline wrapping unit for counted/ Stacked Products

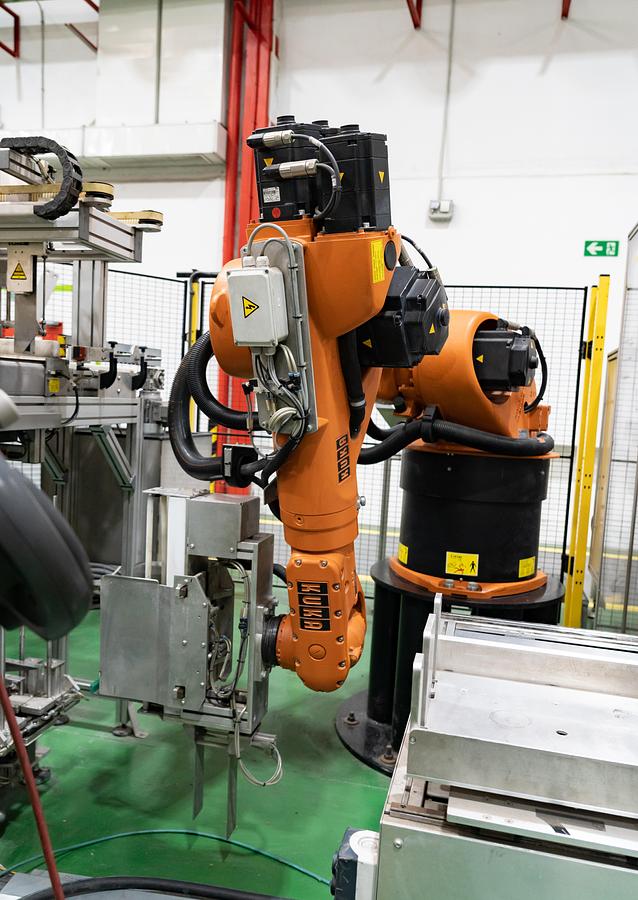

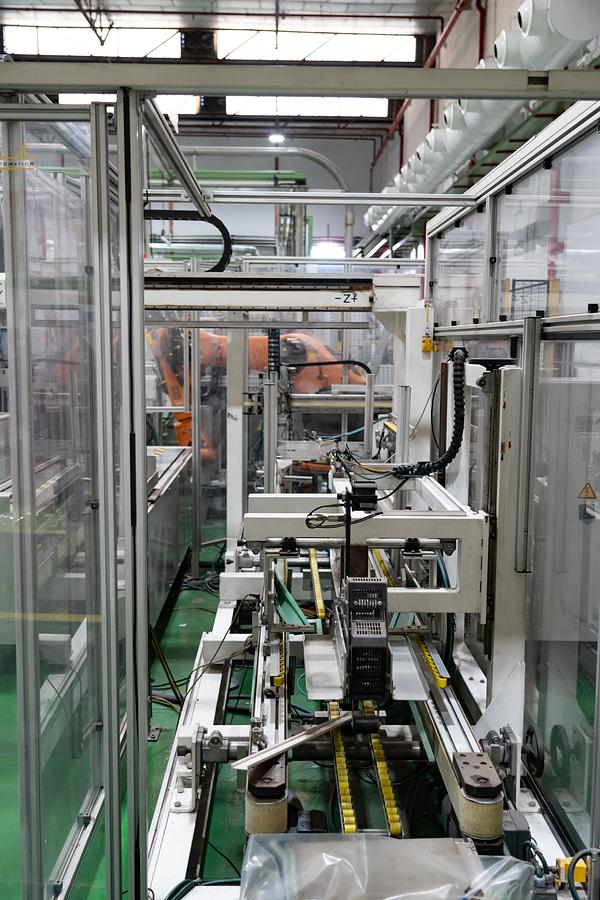

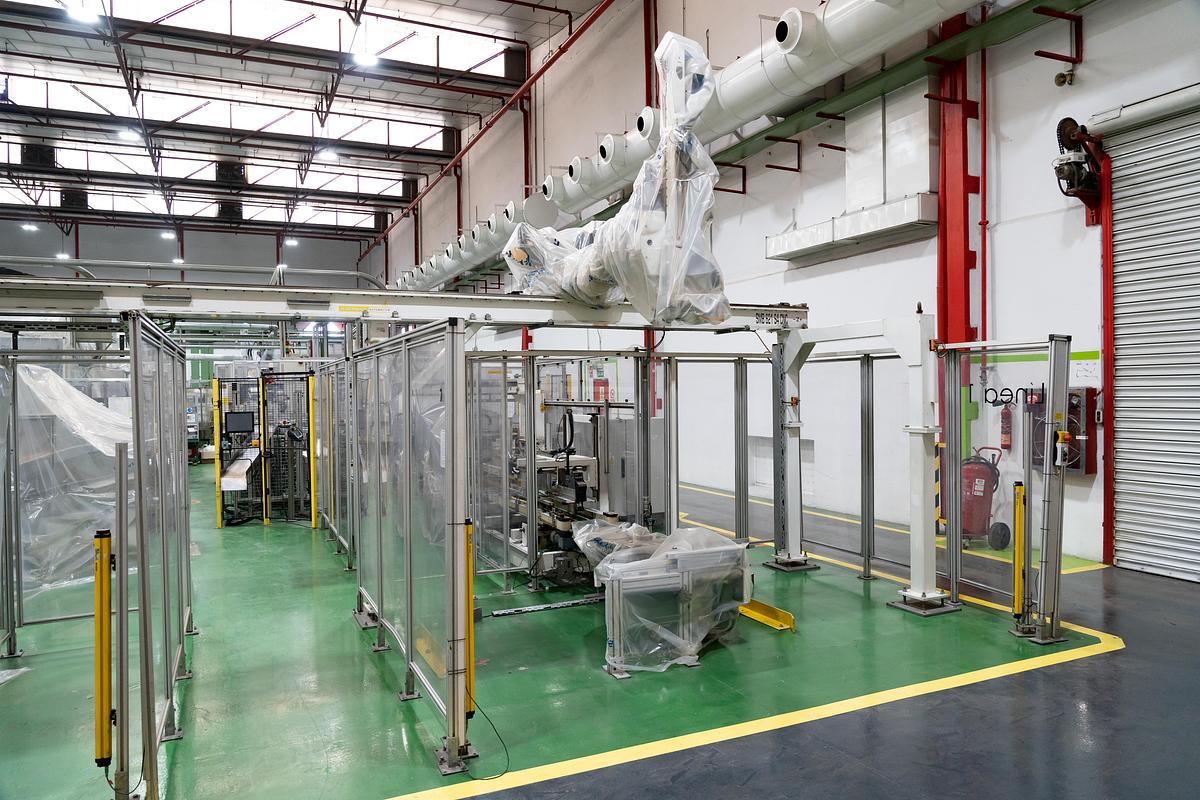

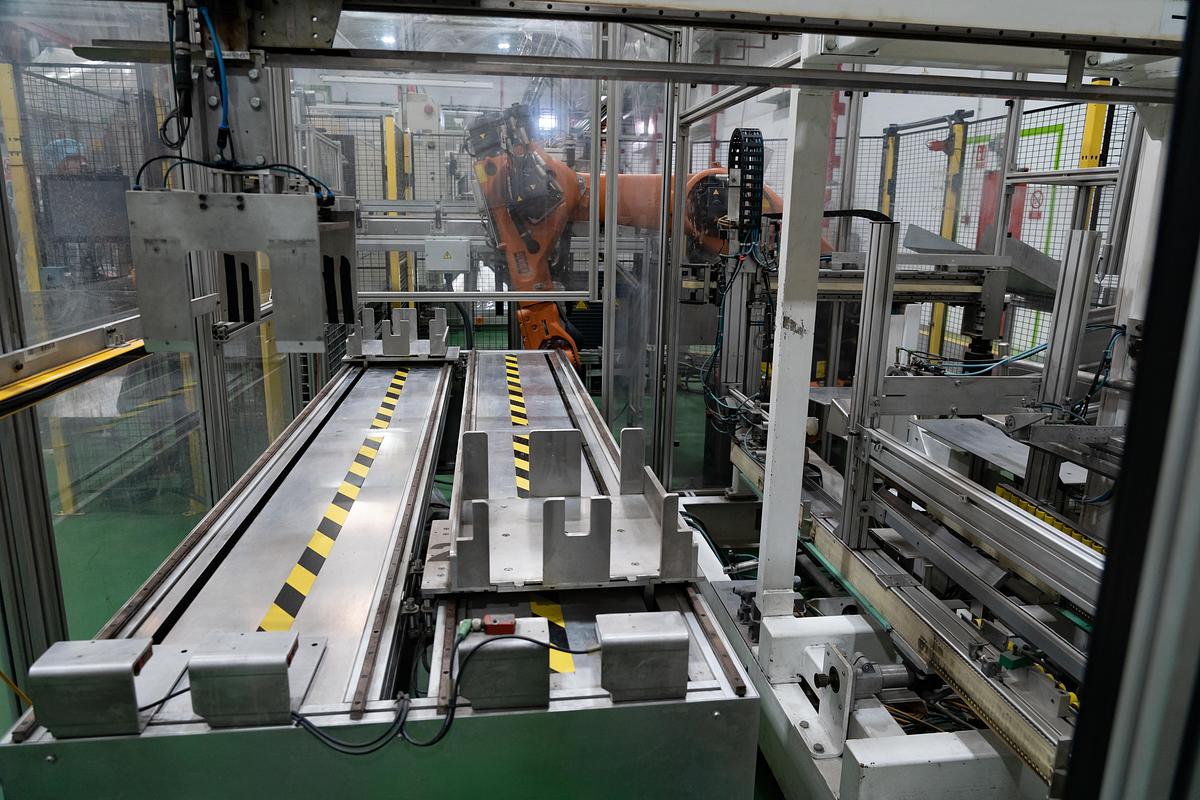

KUKA Robot Unit for packing wrapped products into Cartons

Carton top flap closing and sealing with adhesive Tape.

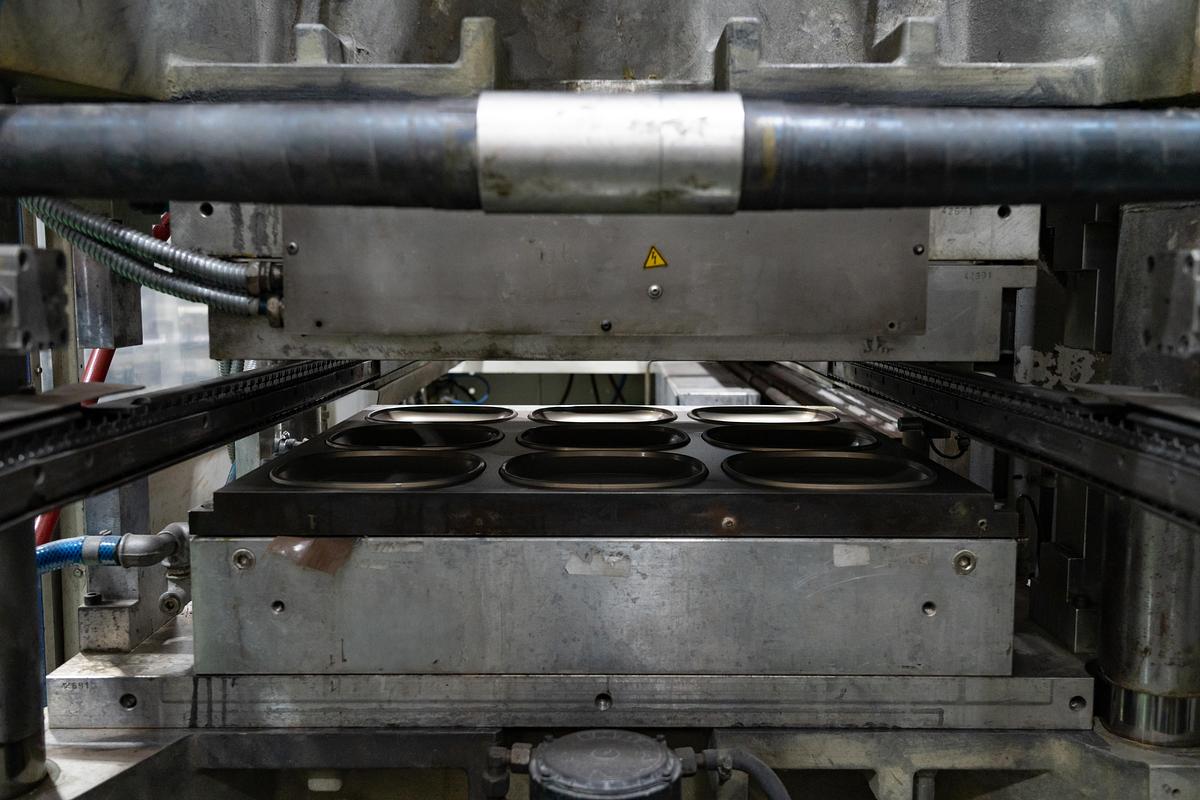

Inclusive of following Form & Trim Molds:-

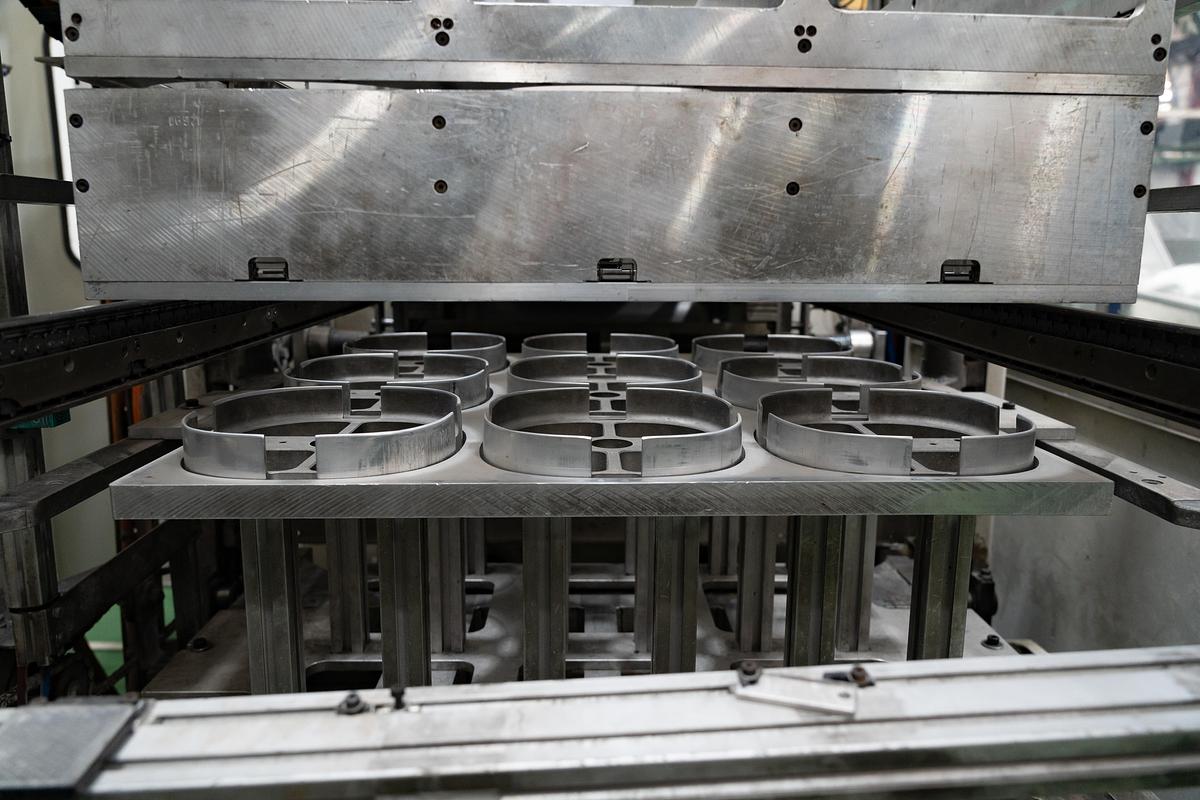

Mould & Matic Plate Mold, age 2007, 12 Cavities, 215 x 215 mm

ILLIG Plate Mold, age 2007, 9 Cavities, 175 x 175 mm

ILLIG Plate Mold, age 2007, 9 Cavities, 215 x 215 mm

ILLIG Plate Mold, age 2007, 9 Cavities, 237 x 237 mm

ILLIG Bowl Mold, age 2007, 16 Cavities, 175 mm
