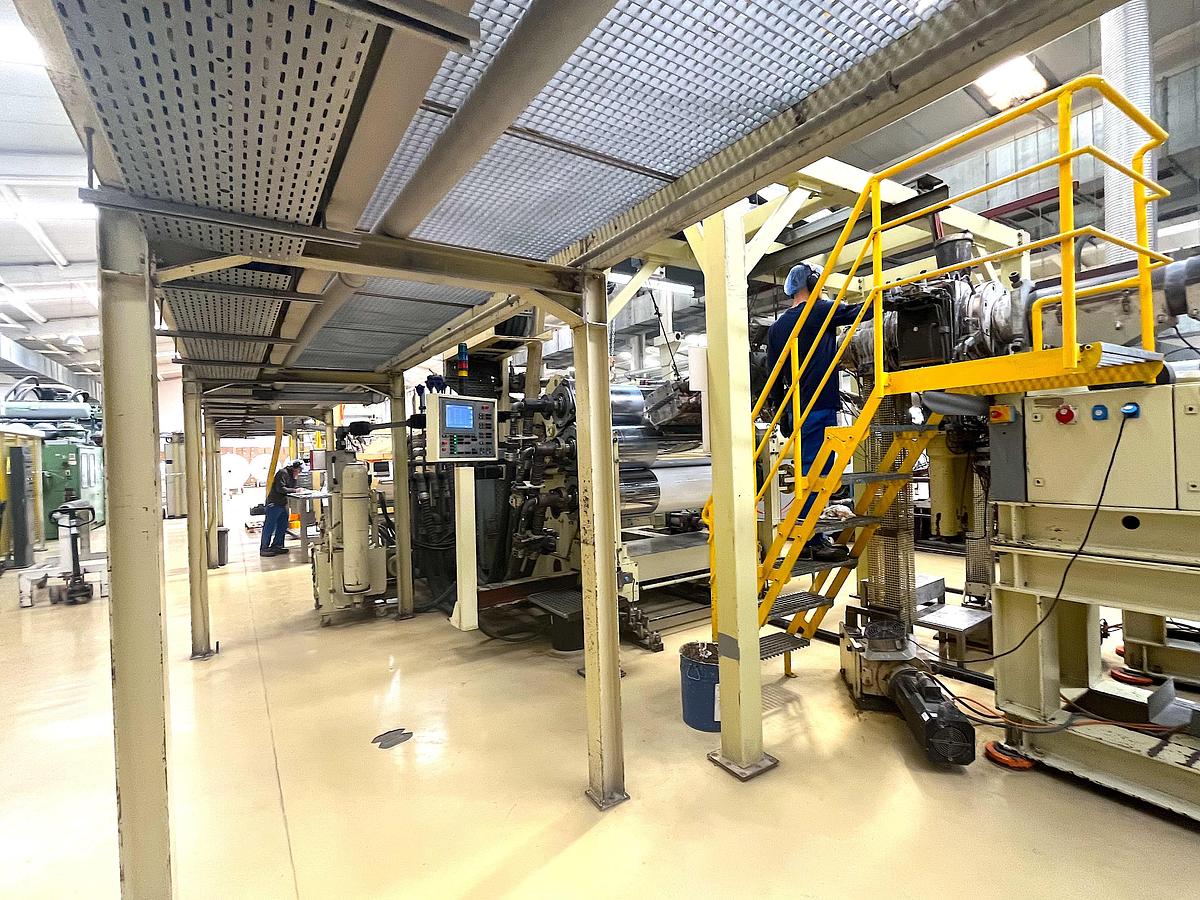

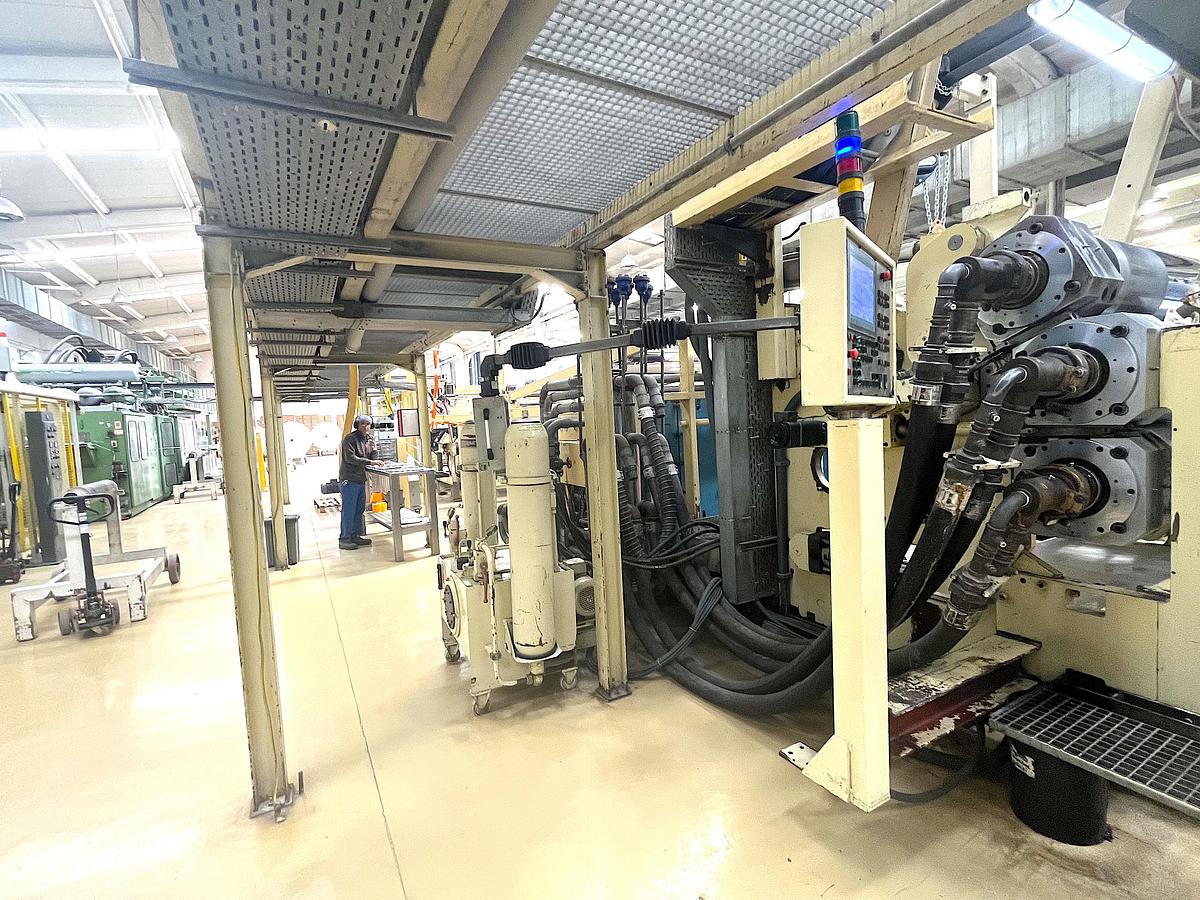

2011 , BREYER 190-313-44 Coextrusion Line

900 mm wide Breyer sheet coextrusion line for PP/PS:

Refurbished in 2011.

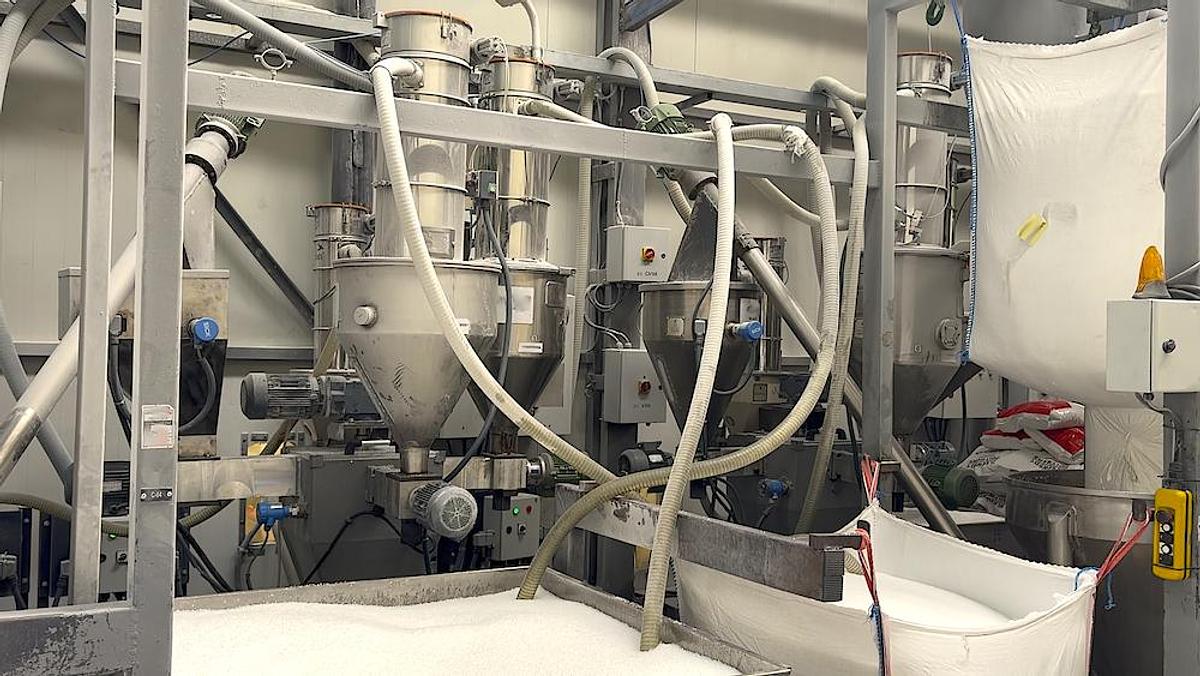

3 component Dosing Mixing Station

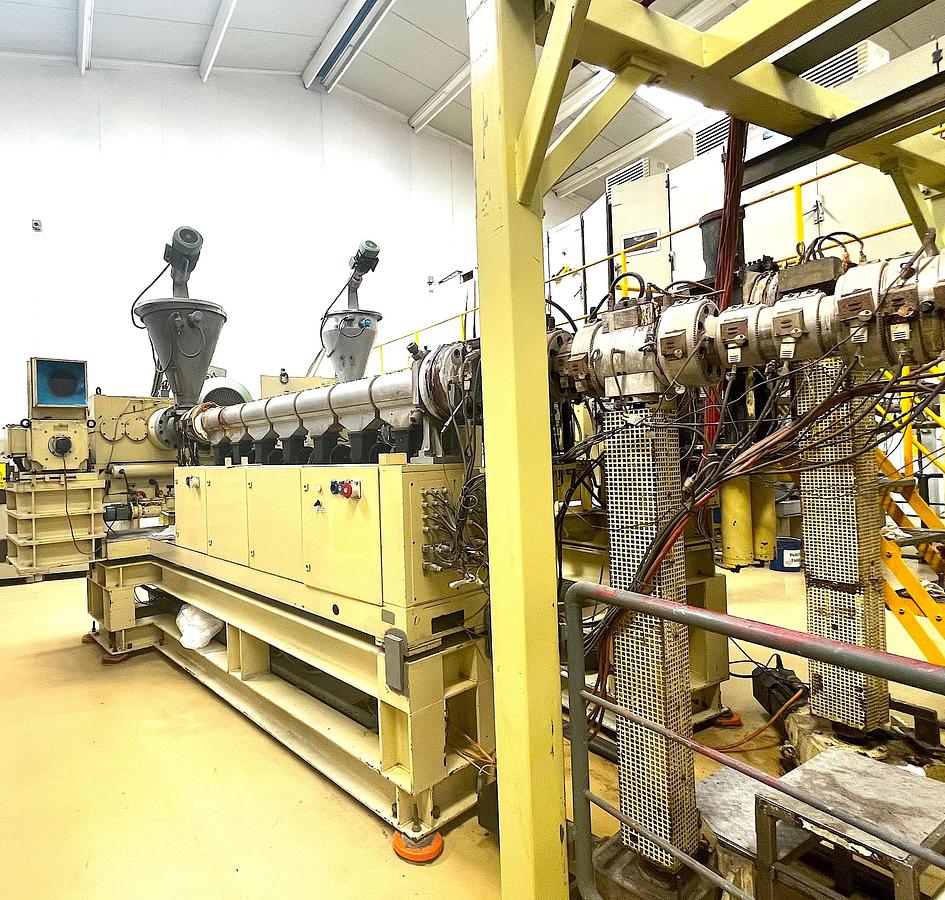

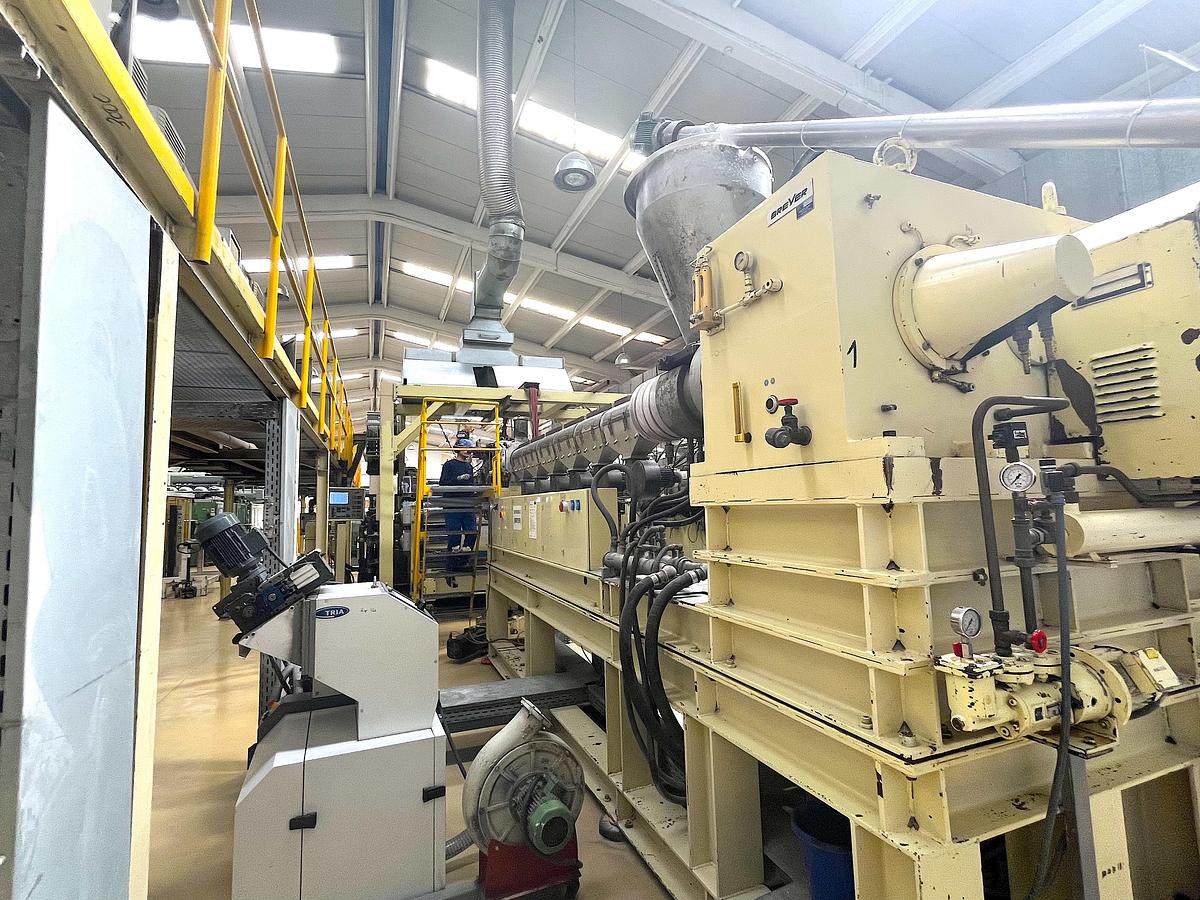

Main Extruder, diameter 120 mm L/D 32, 350 - 375 kg/ hr through-put.

Coextruder diameter 90 mm L/D 32, 300 - 350 kg/ hr through-put.

6 x Zone Electrically heated fan cooled barrel.

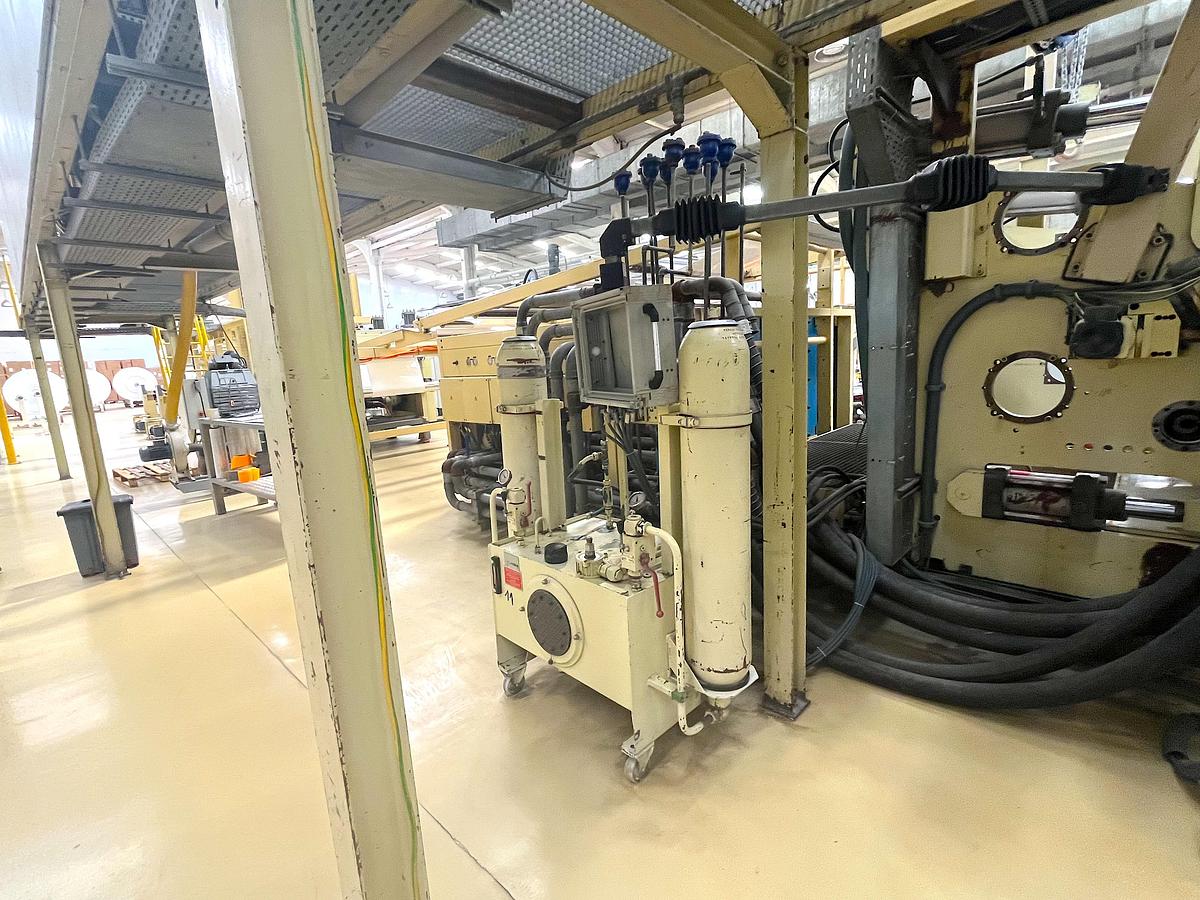

Both Extruders with Hydraulic Double Pot type screen changers with Hydraulic Power Pack.

Both Extruders equipped with EXTREX Melt-Pumps

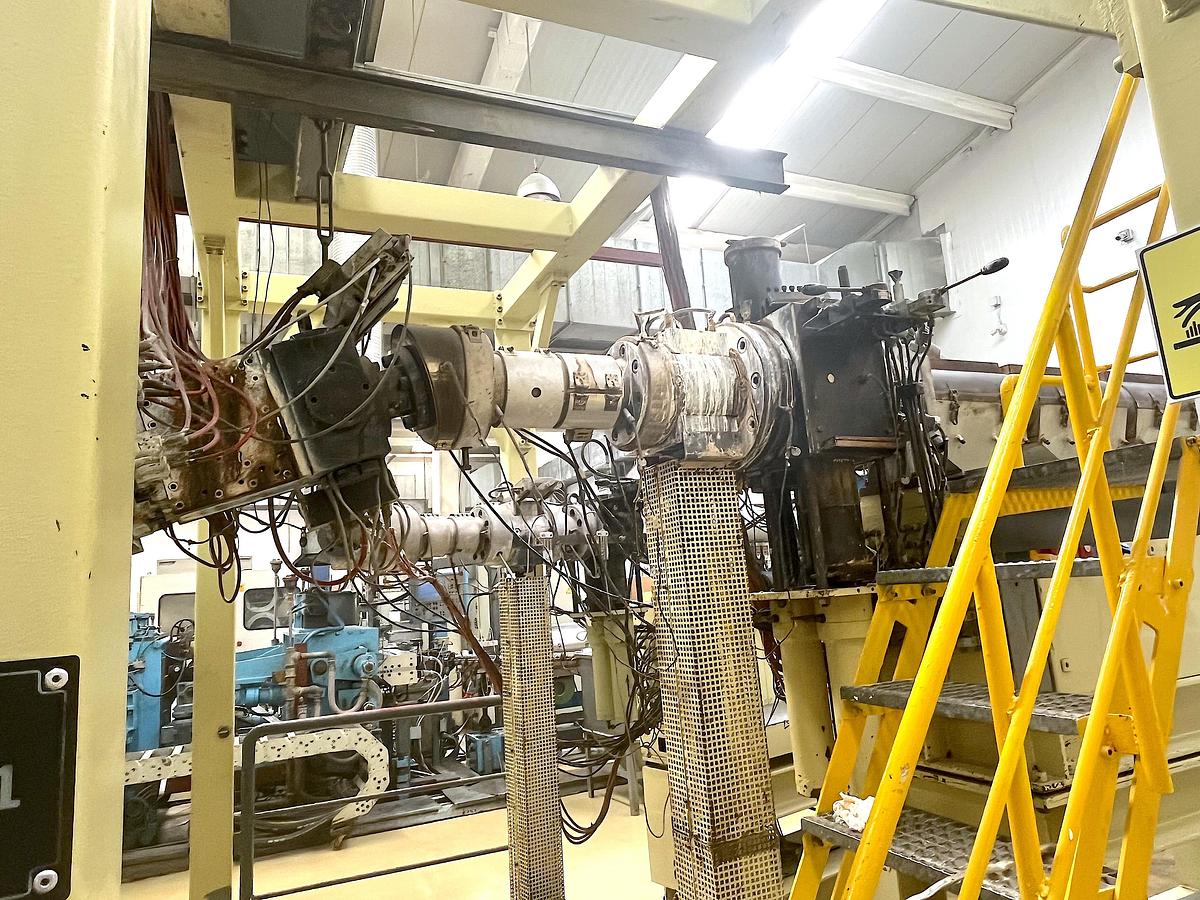

ABA Configuration Adapter

Breyer 900 mm wide Inclined flex lip sheet Die. Thickness Range 0.5 mm to 2 mm

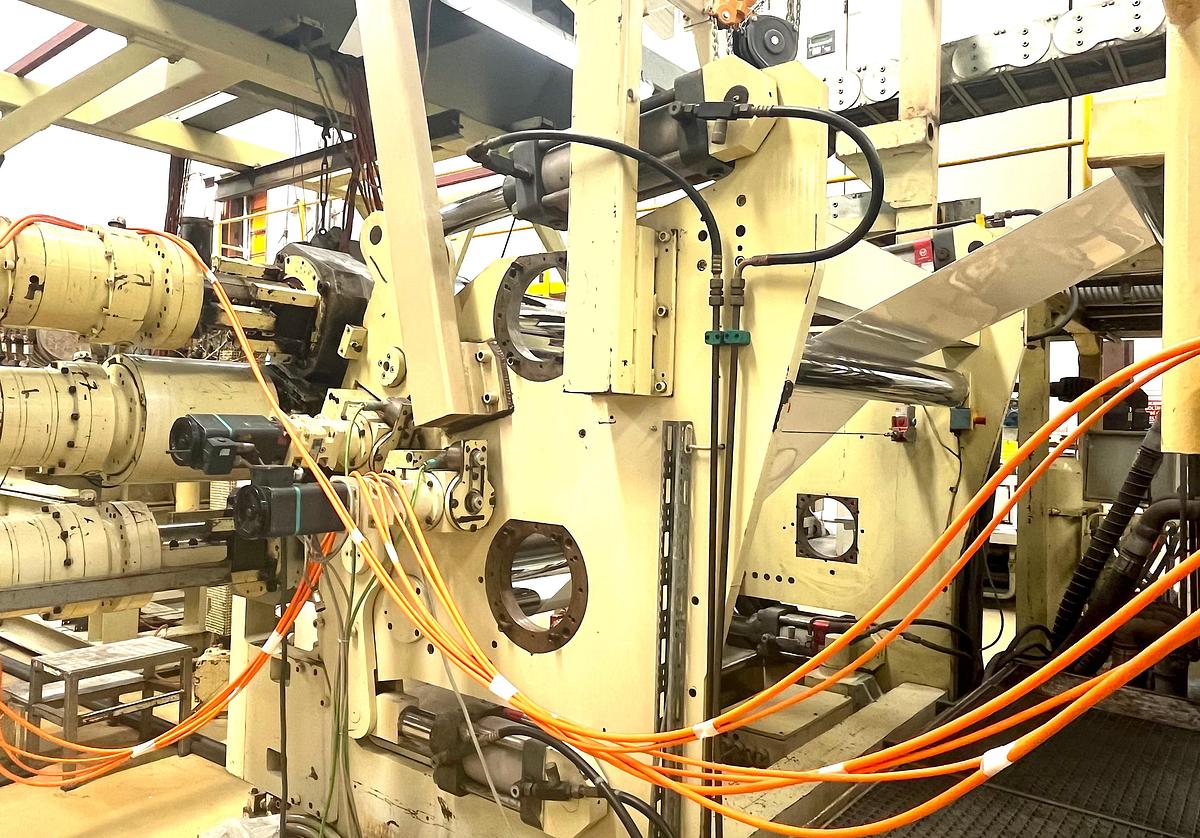

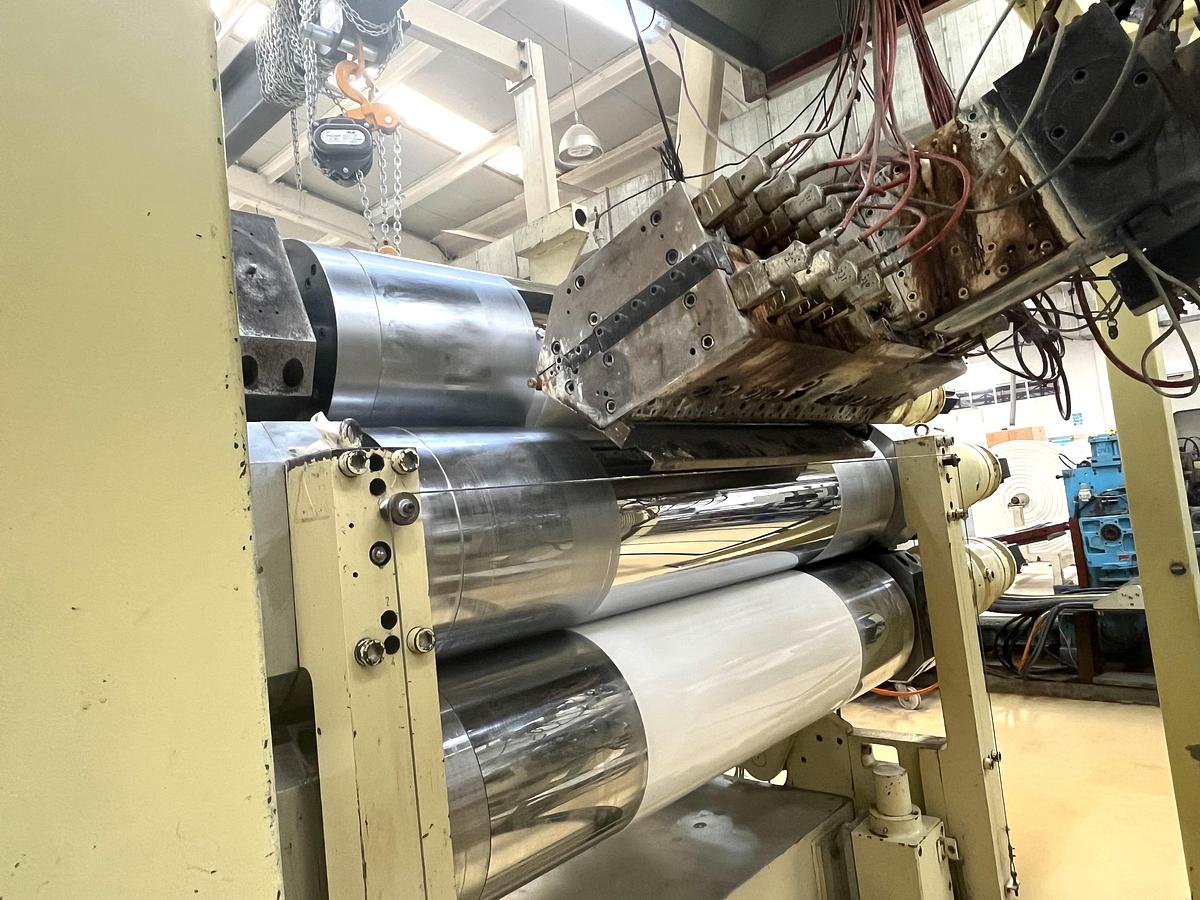

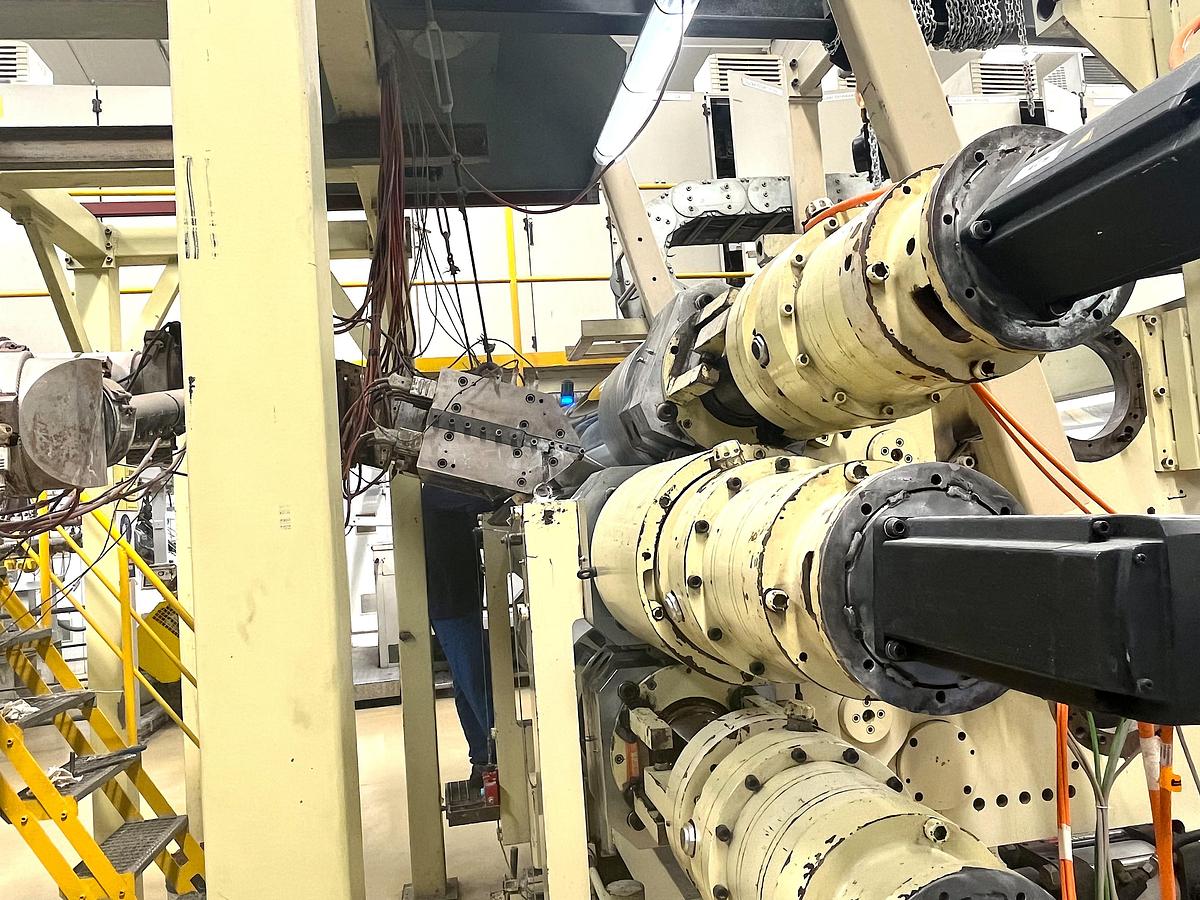

1200 mm wide Breyer 5-Roll Polished Chrome cooling stack, with 670 mm, 400 mm, 400 mm dia. Rolls

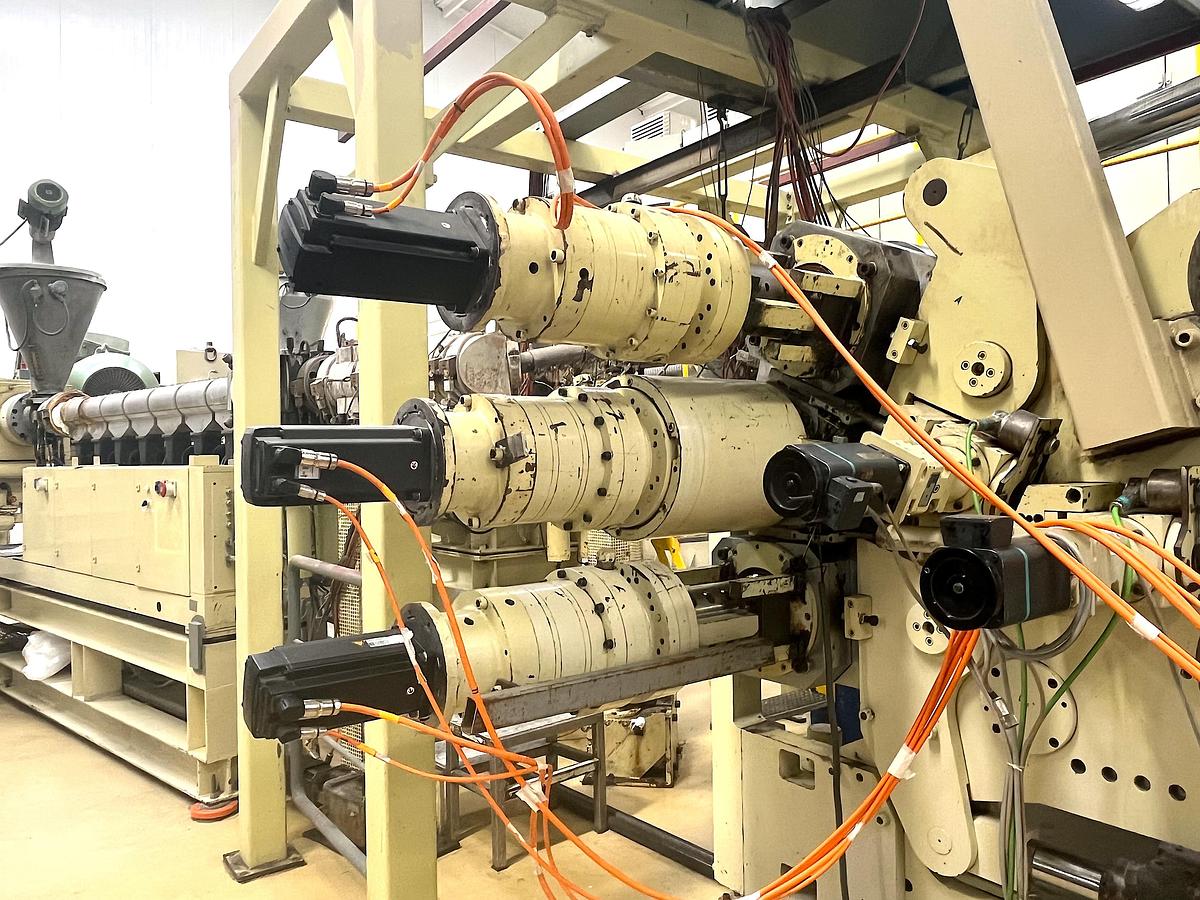

Driven by individual Indramat Servo Motors

2 x Extra Rolls available but not installed on the Stack

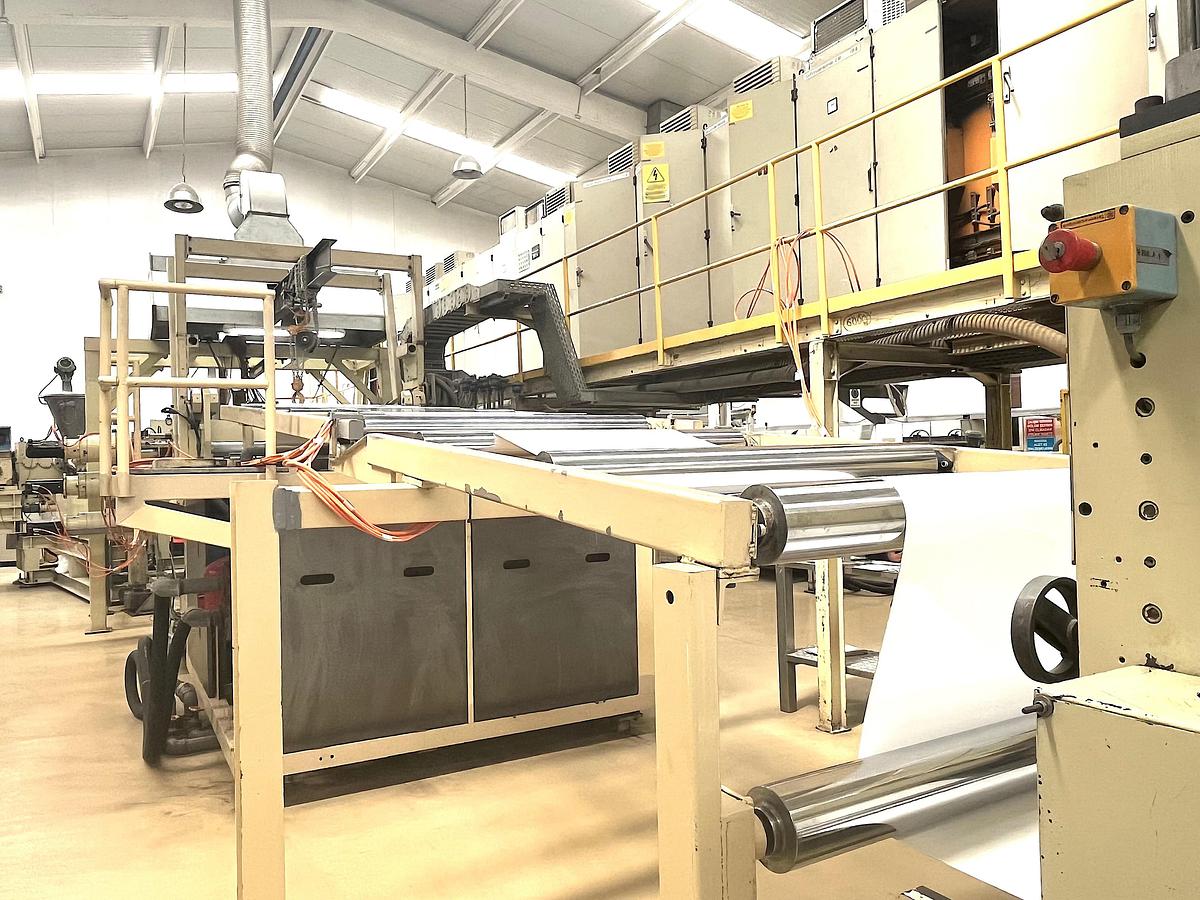

Roller Conveyor

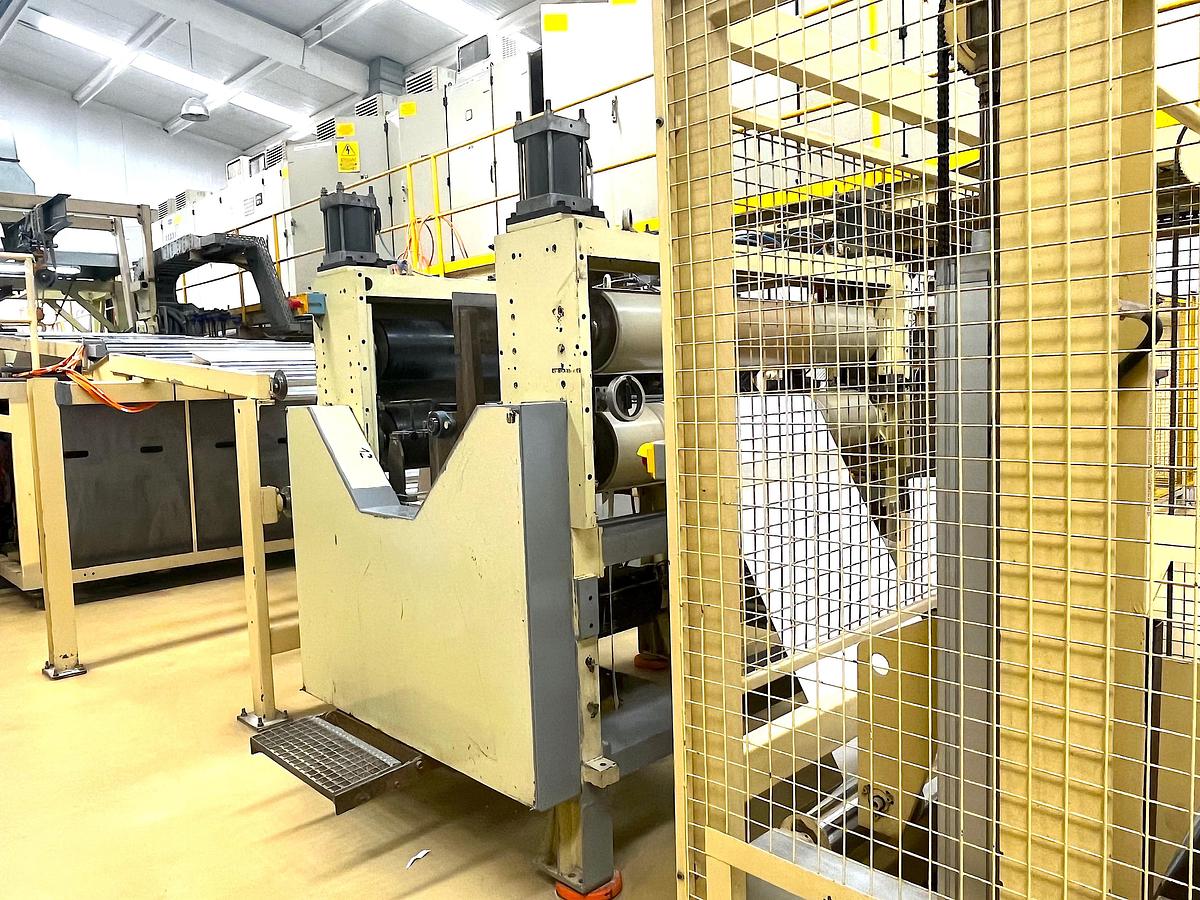

2 x Rubber Roll nip Take-off.

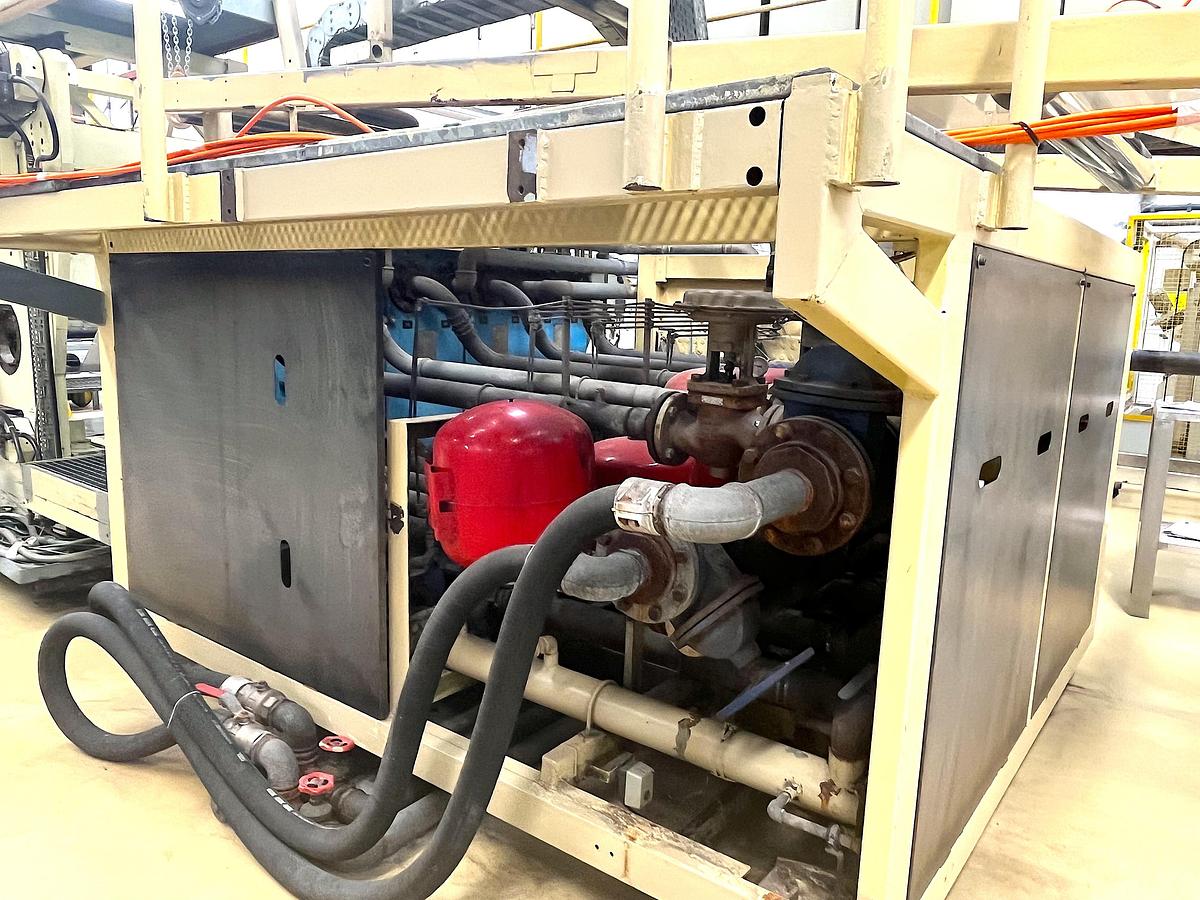

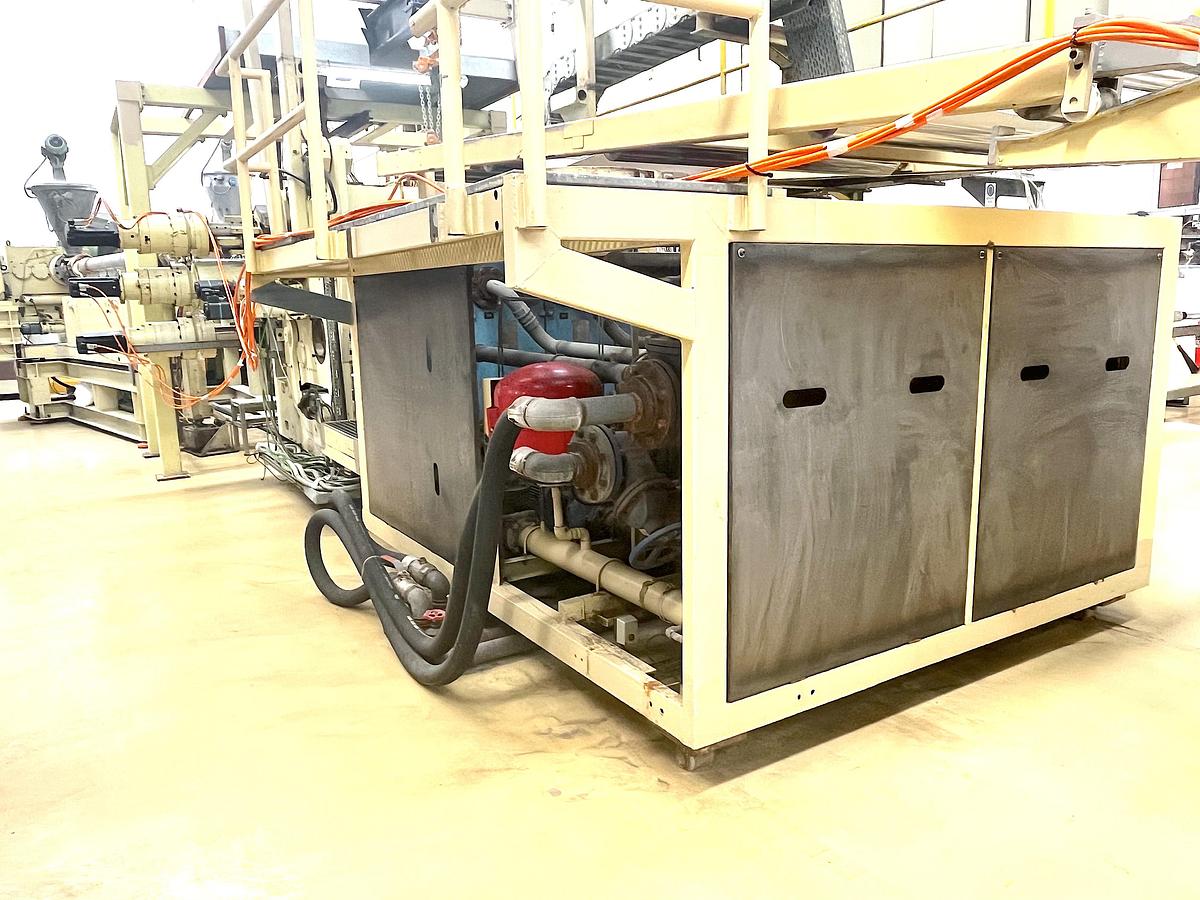

Pump group with heat exchangers for roll cooling.

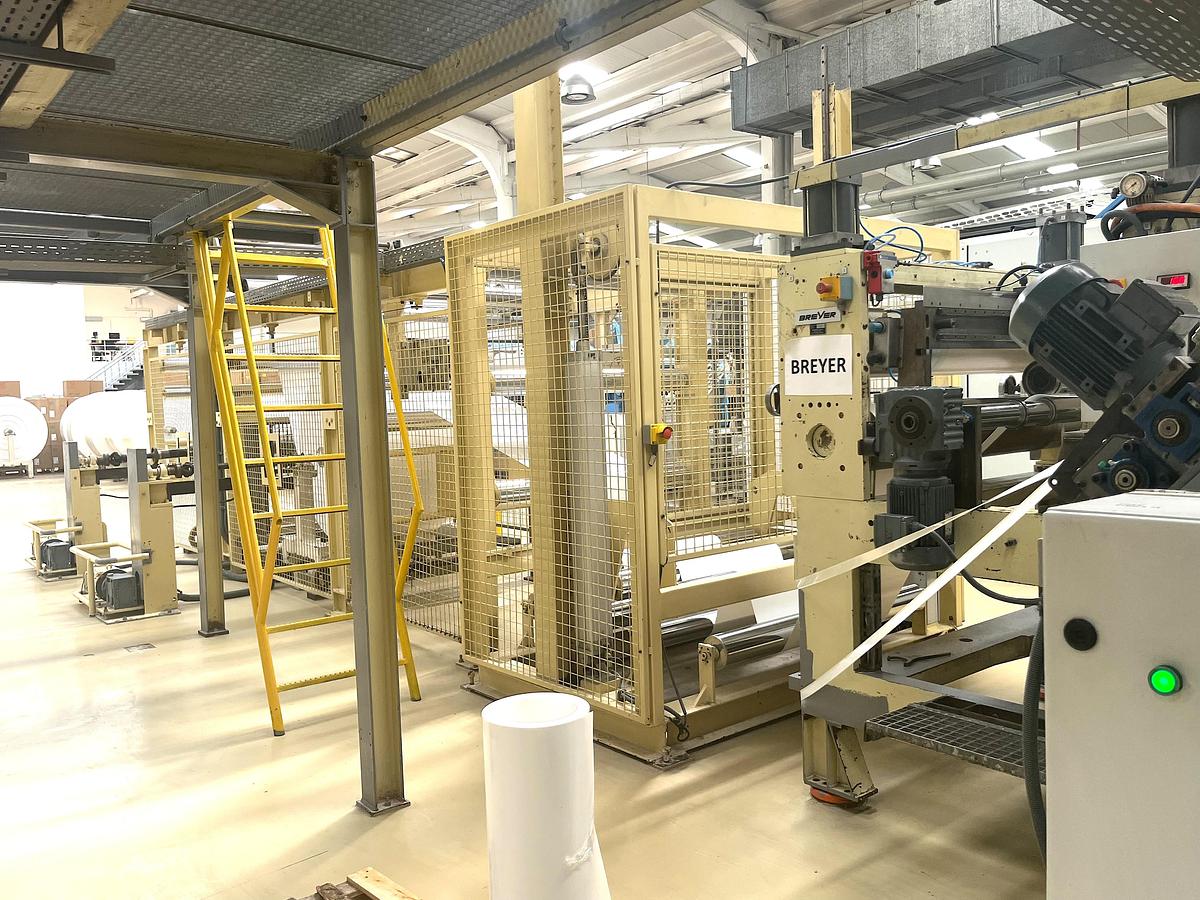

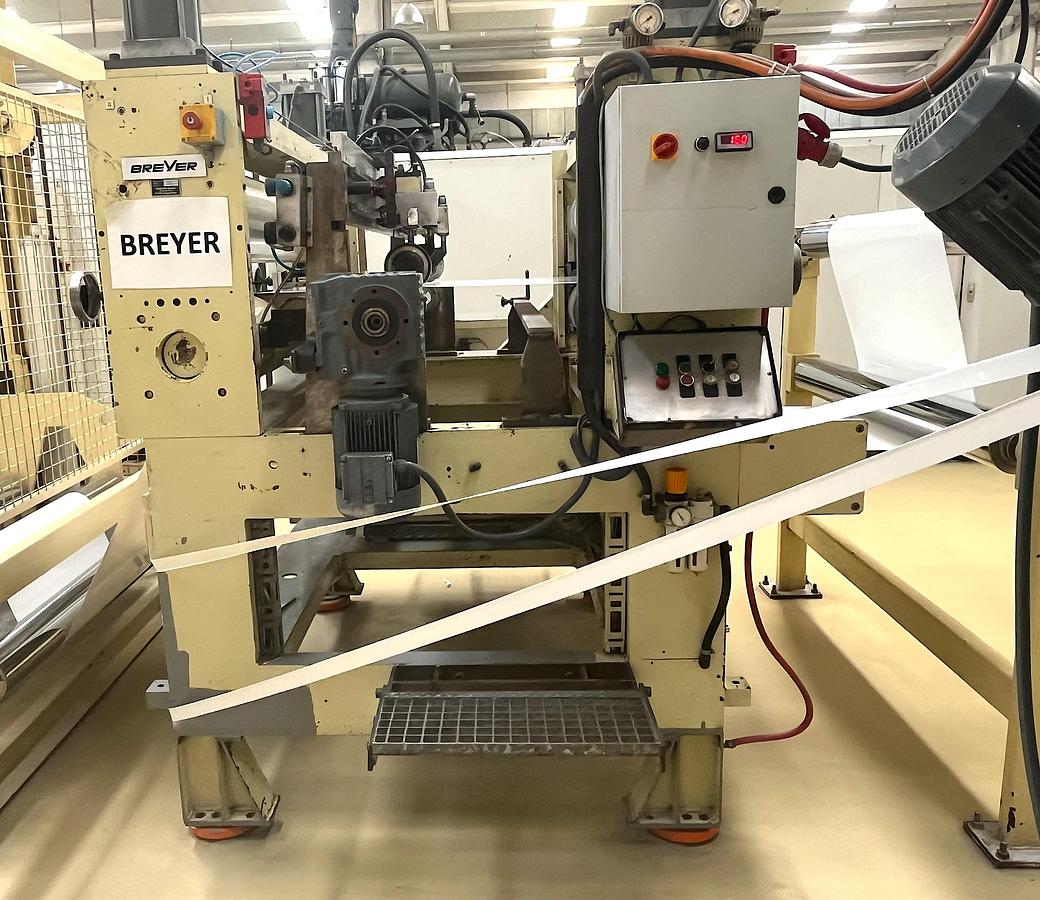

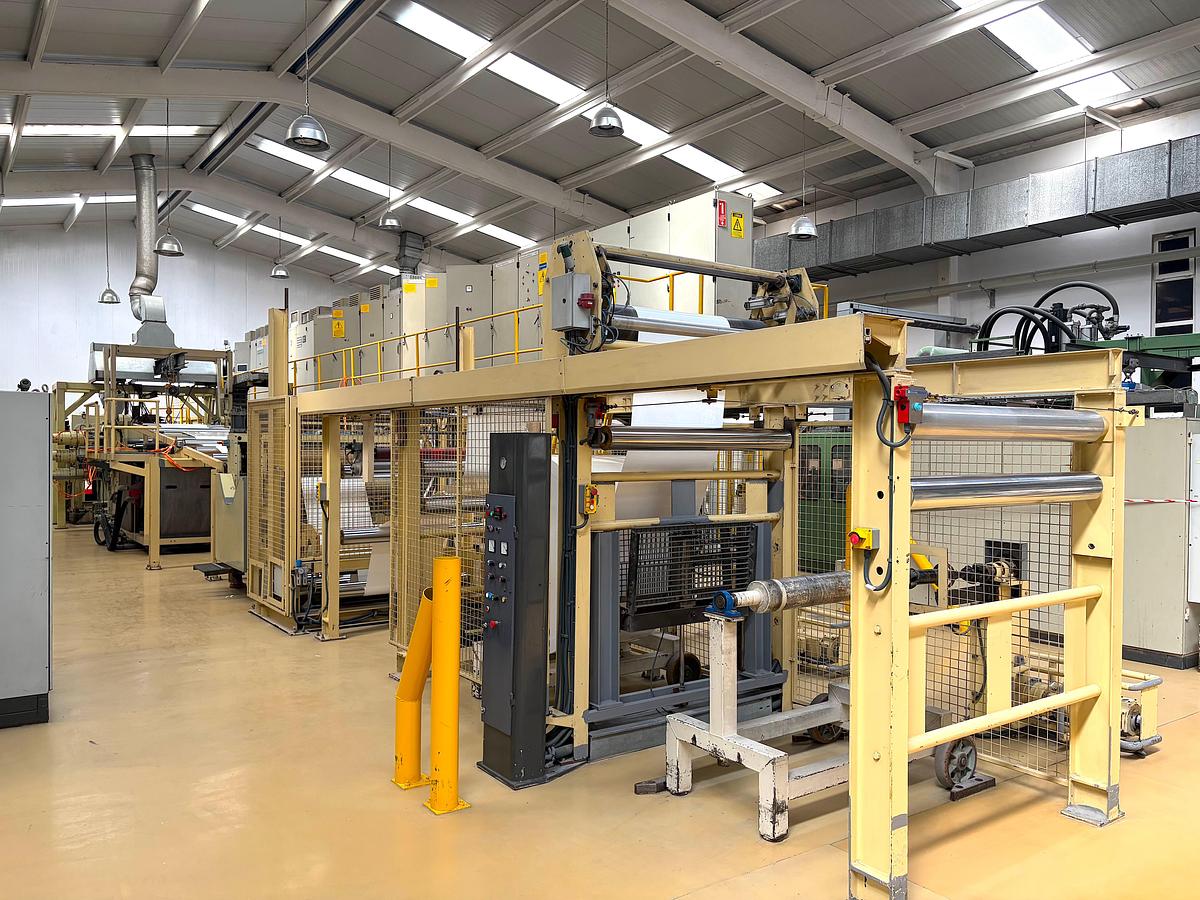

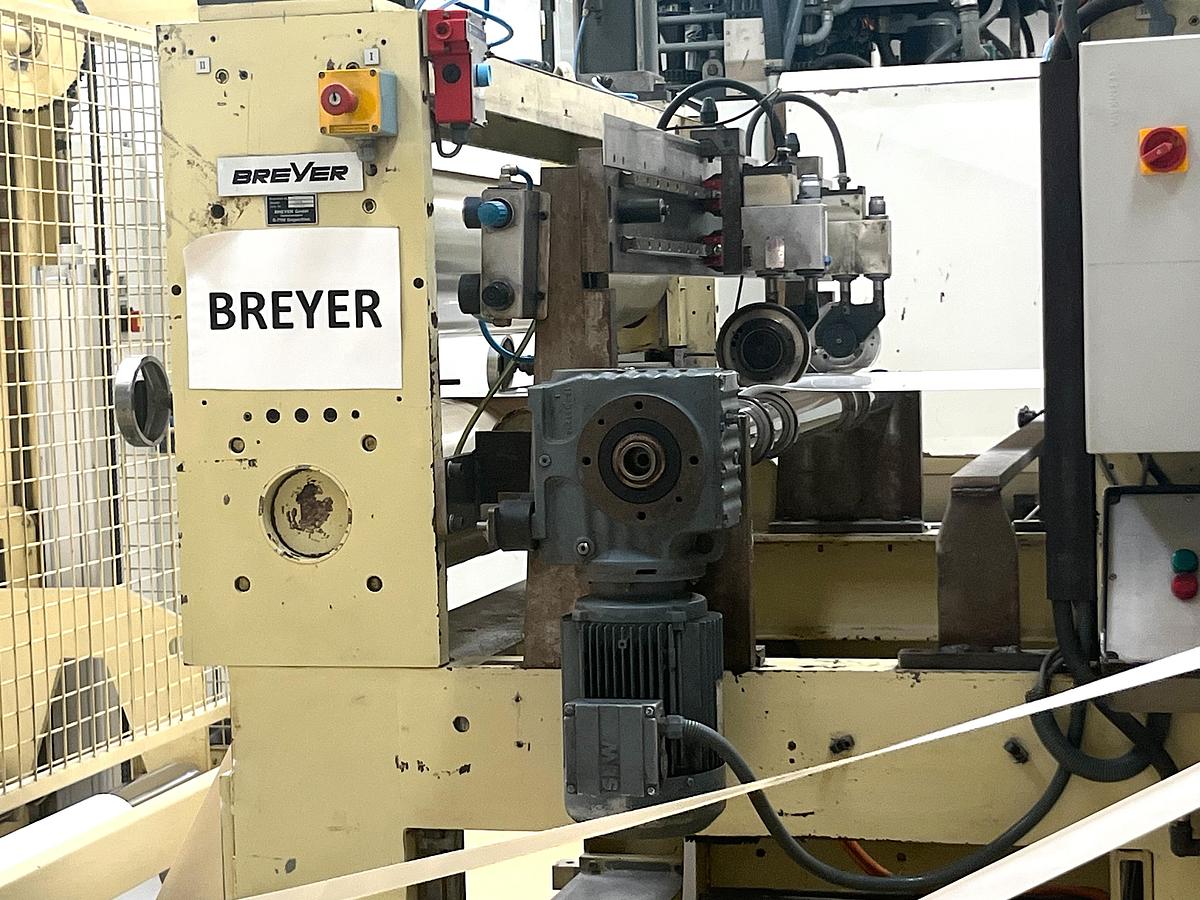

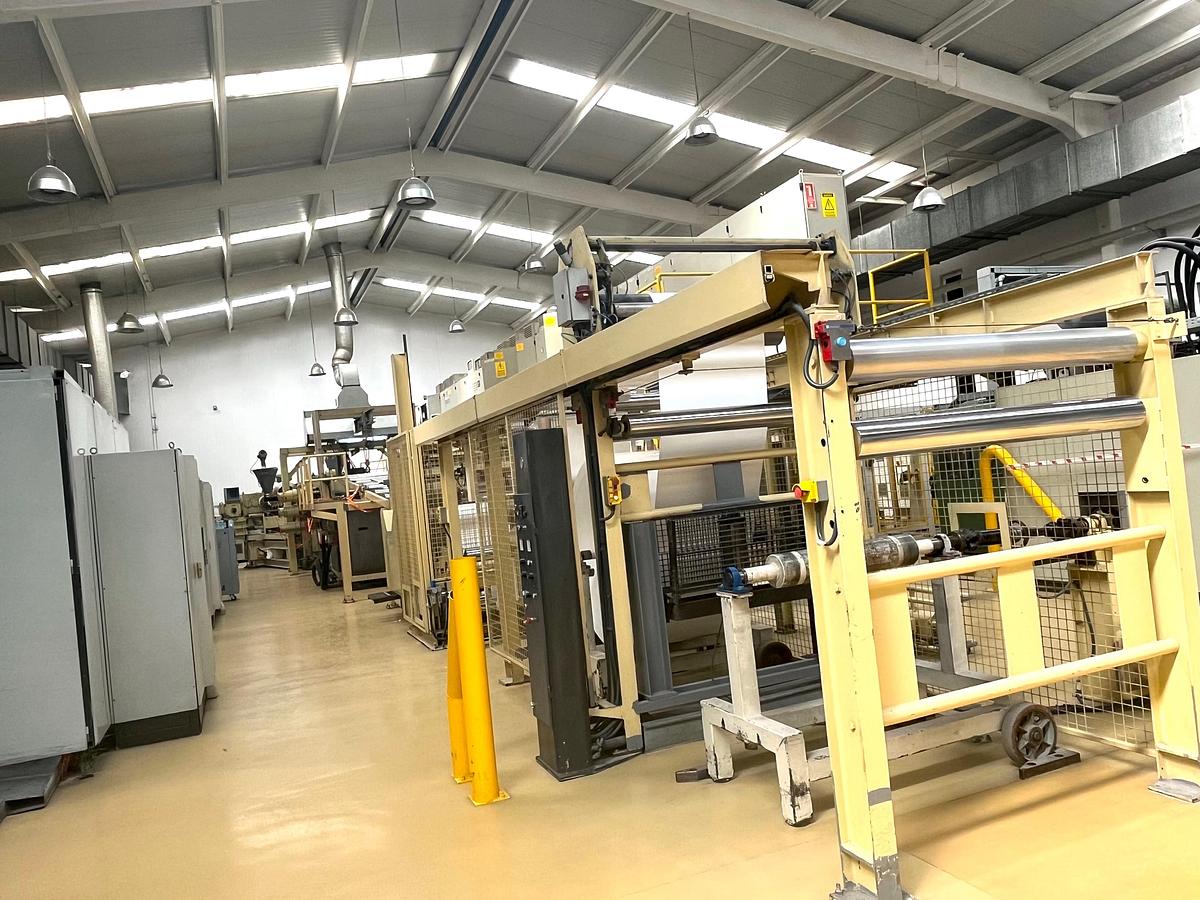

Breyer double station haul off with circuler knife shear cut edge trim Station

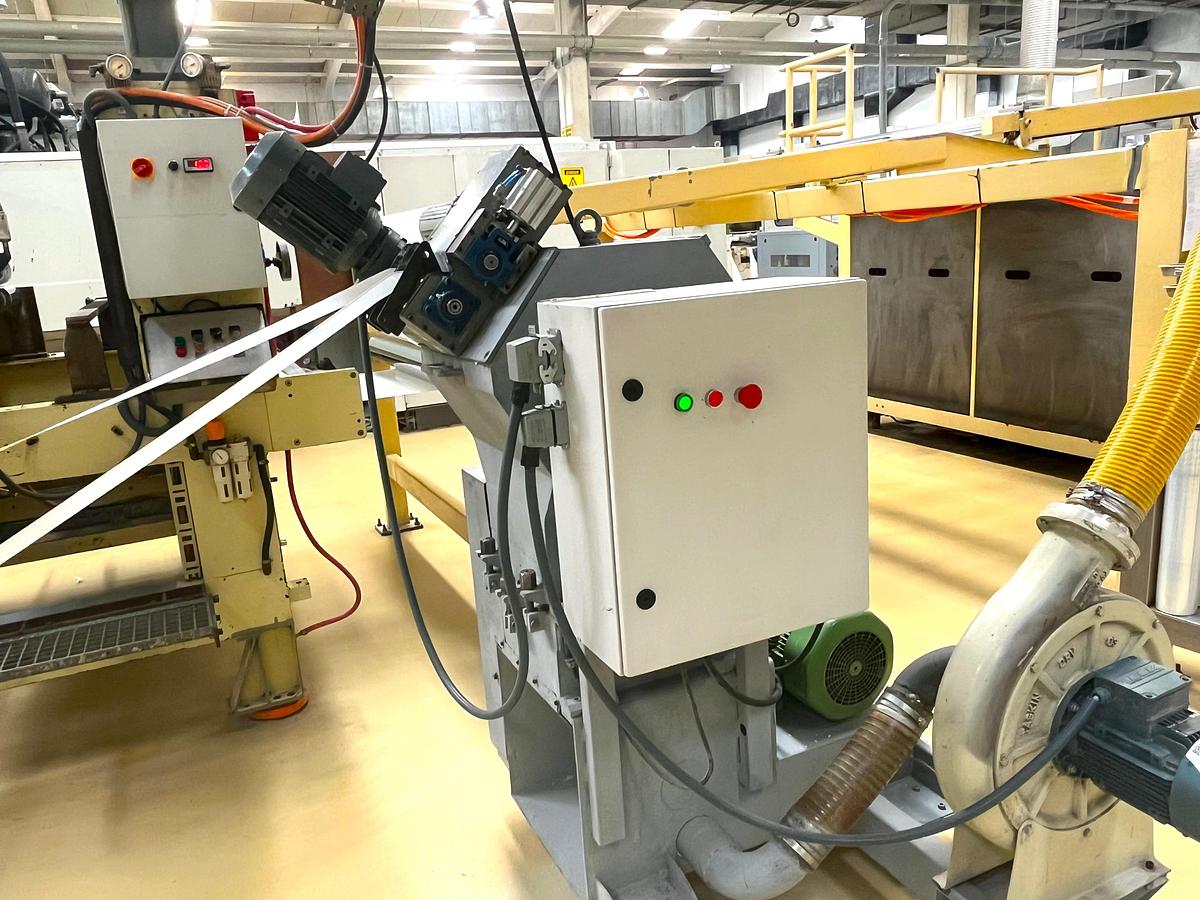

Edge trim Grinder

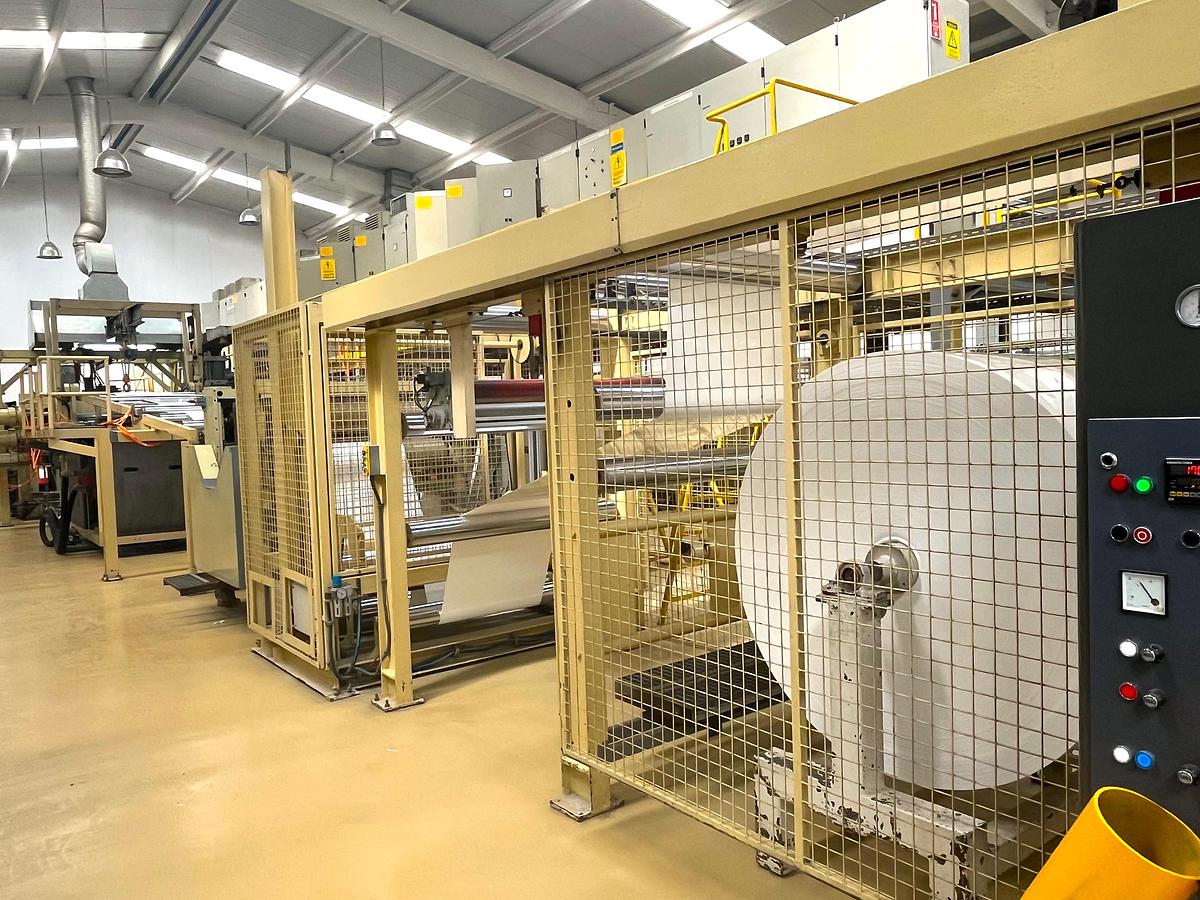

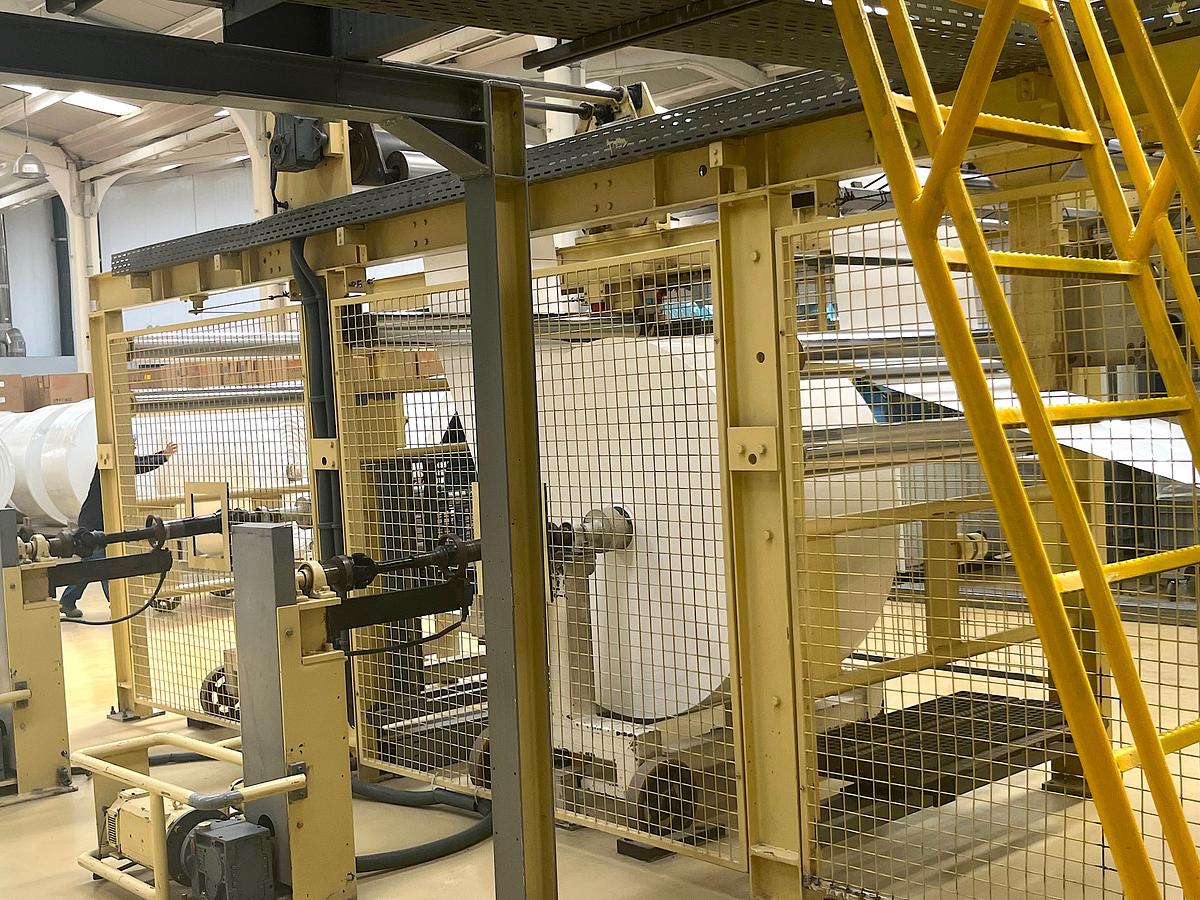

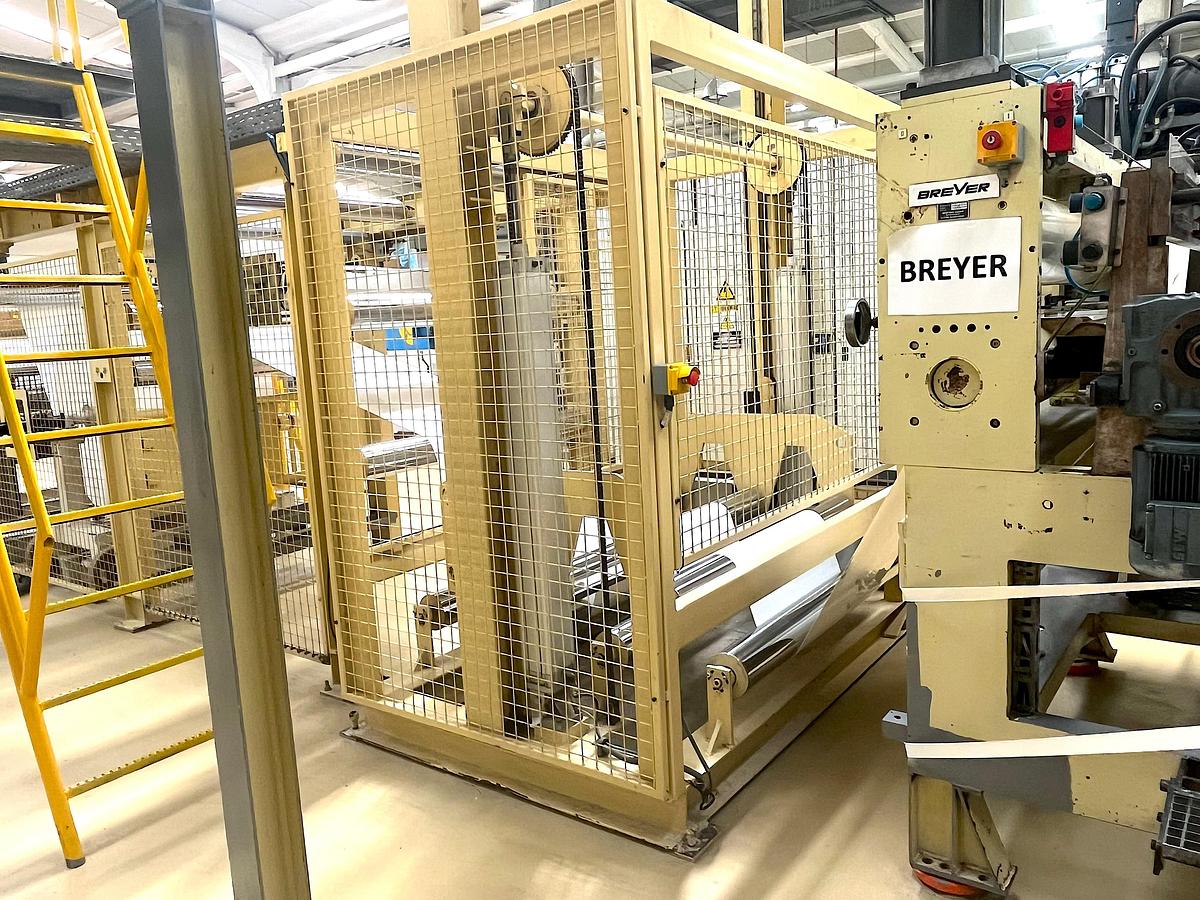

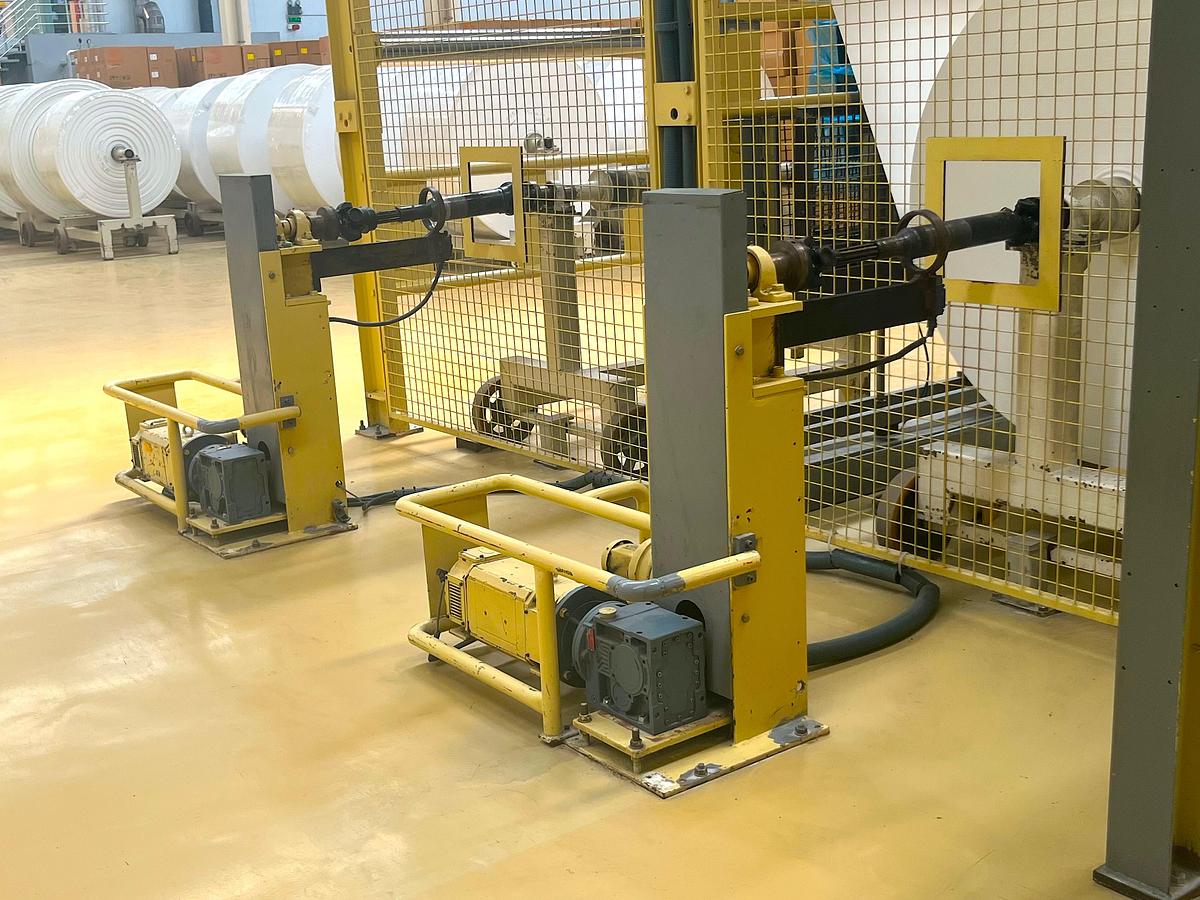

2-Station Breyer Winding Station.

Complete Suite of control panels for above.

* Can be inspected in production.

** V. Good Production Condition !
