1999 VAN DAM 520-6

Used Van Dam 520-6, UV-COM, 6-Color Cup Printing Line, Age 1999:

Auto Elevator Tray Feeder

Auto-cross feeder conveyor

Standard Van Dam "Goose Neck" infeed to main print unit

Universal Screw Denester

Mandrel Spin System

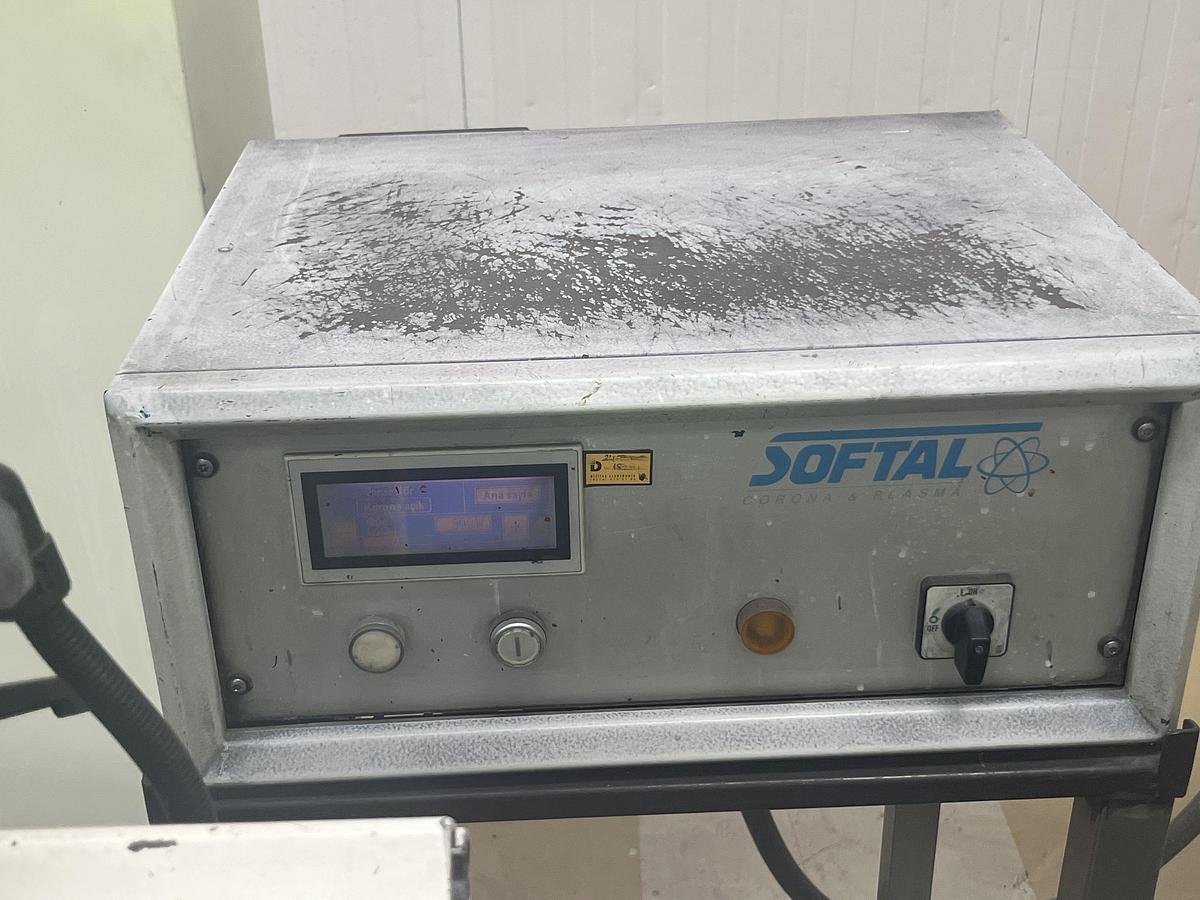

SOFTAL Corona Pretreater with Leak tester

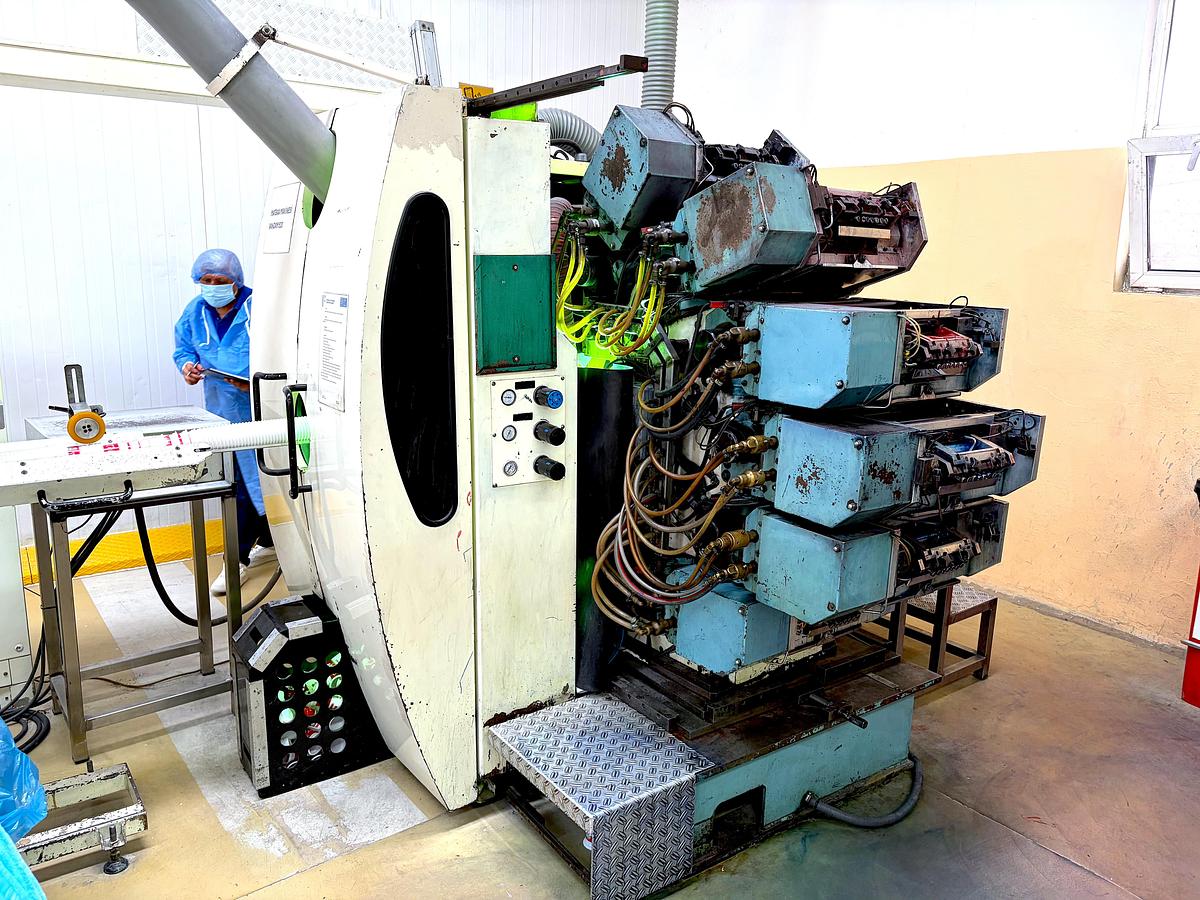

Main 6-Color Print unit. Modern New Style Print Heads

Each Print head consisting of : 8 x precision ground rollers

2 x Oscillating Rollers water cooled

Gear driven Fountain Rollers

Ink Well with Ink Agitators

All six heads swing open for easy plate mounting and free roller accessibility

All pressure and color register adjustment can be made while printer is running

Easy access to product handling areas and print area

No cup no print system

Double cup detection

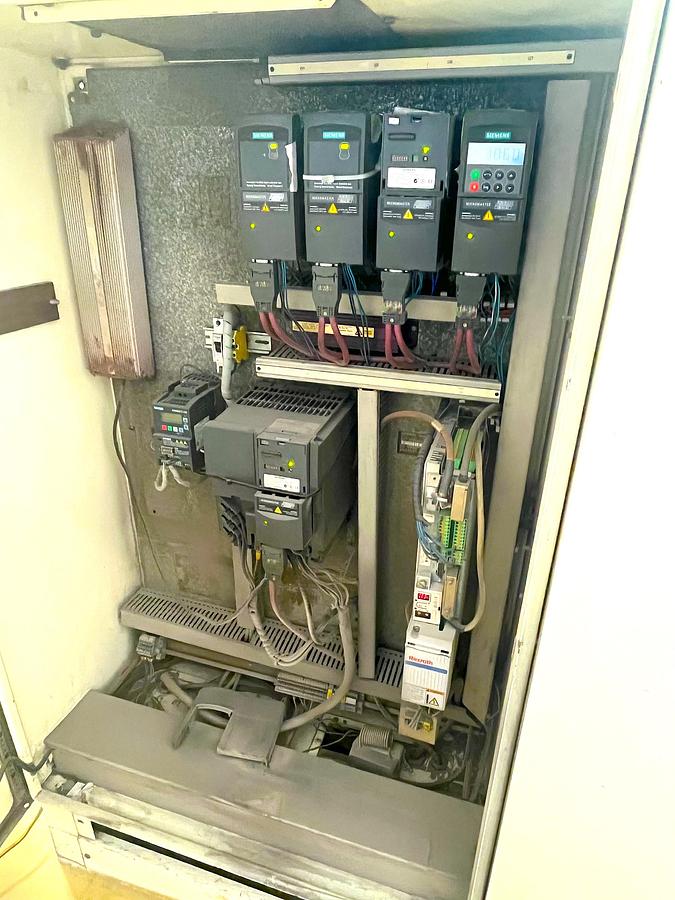

Main Inverter Drive. Speed continuously variable.

UV-On Mandrel Curing System: UVITERNO MONO-JUMBO-8015.

Dual Timing Belt Take-Off

Exact Count, dual chromed Screw Counter/ Stacker Unit, with Ejector Tray

Min./ max. Cup height 30 - 150 mm

Min/ max. Cup-Rim diameter 50 - 135 mm

Max. printing length 415 mm

Max. Printing Width 150 mm

Min./max. Taper 0 - 12°

Max. Production Speed 600 Cups/ min, depending on Cup size and shape.

SIEMENS SIMATIC TOUCH HM! with Touch Controls and Color Display

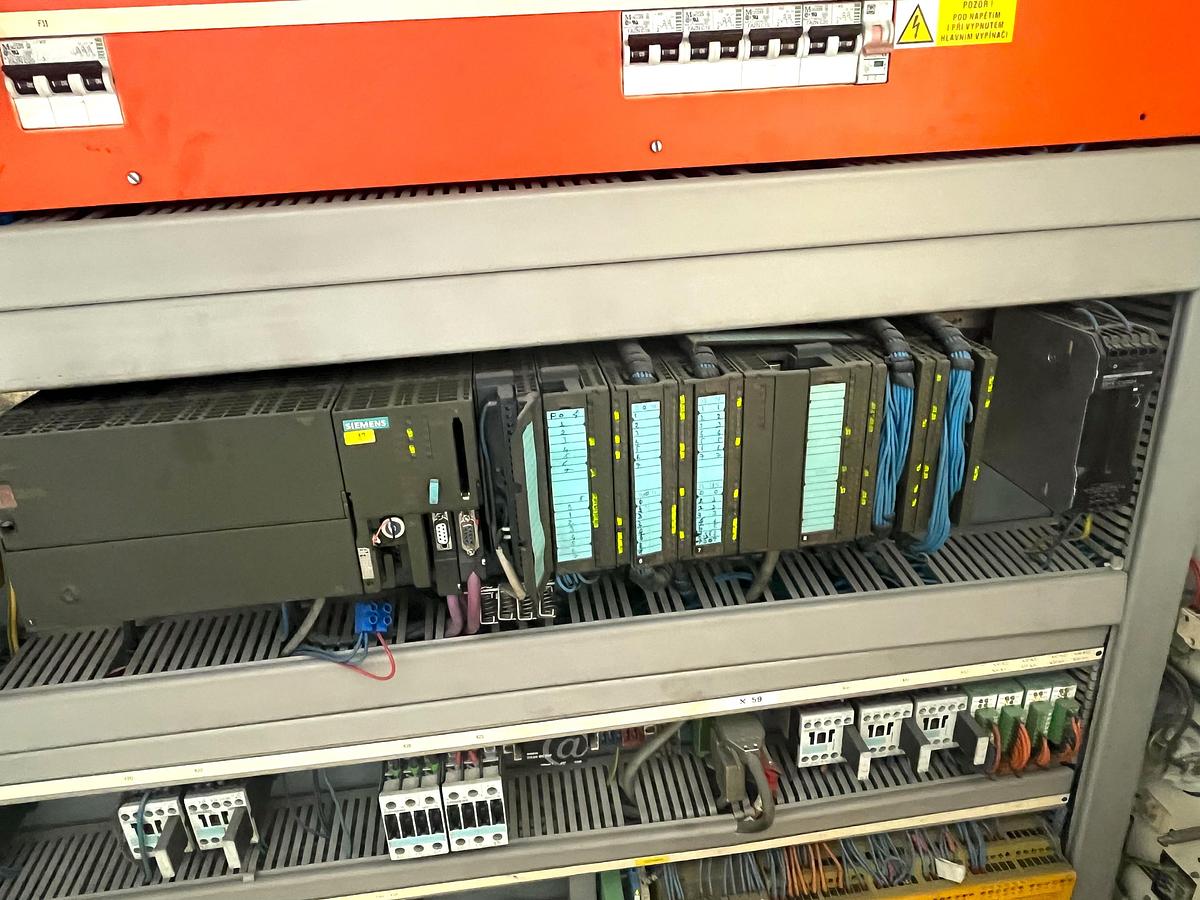

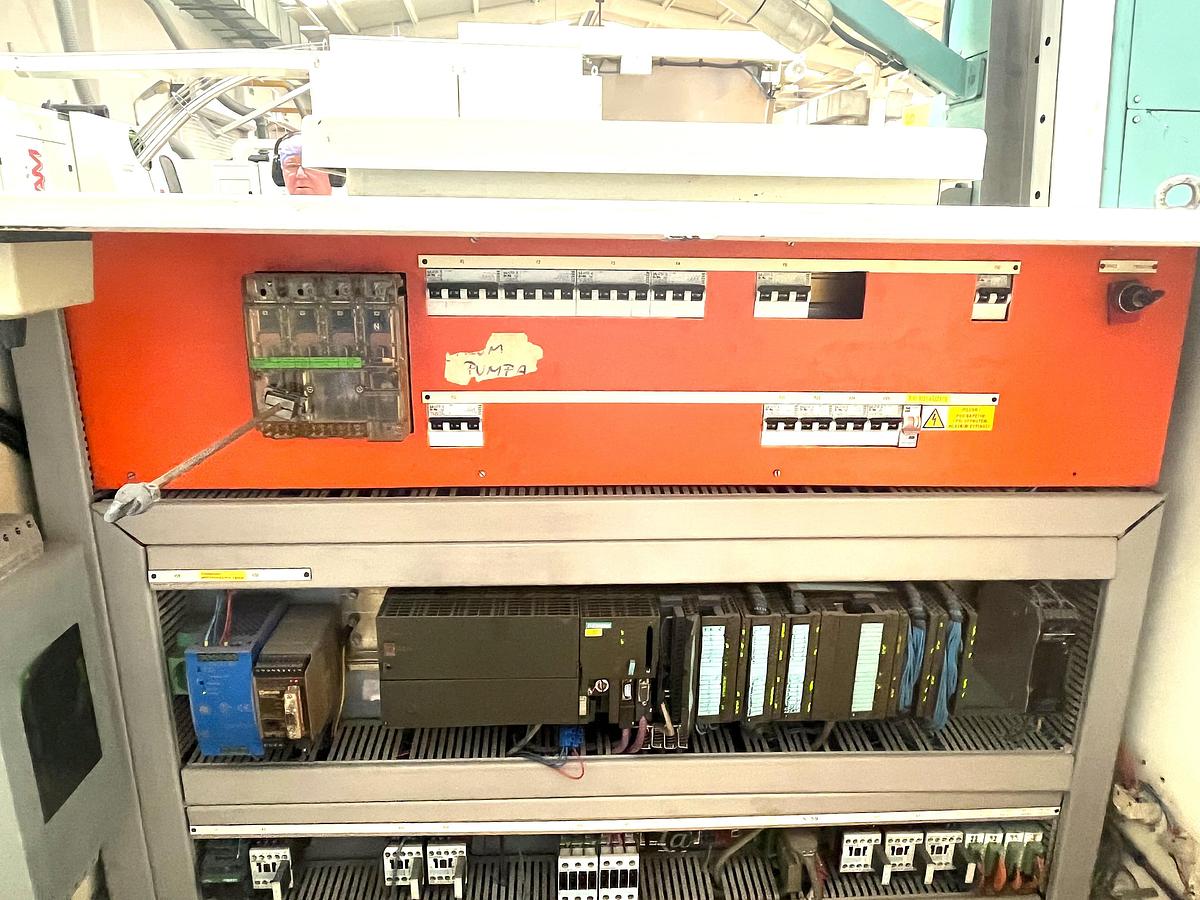

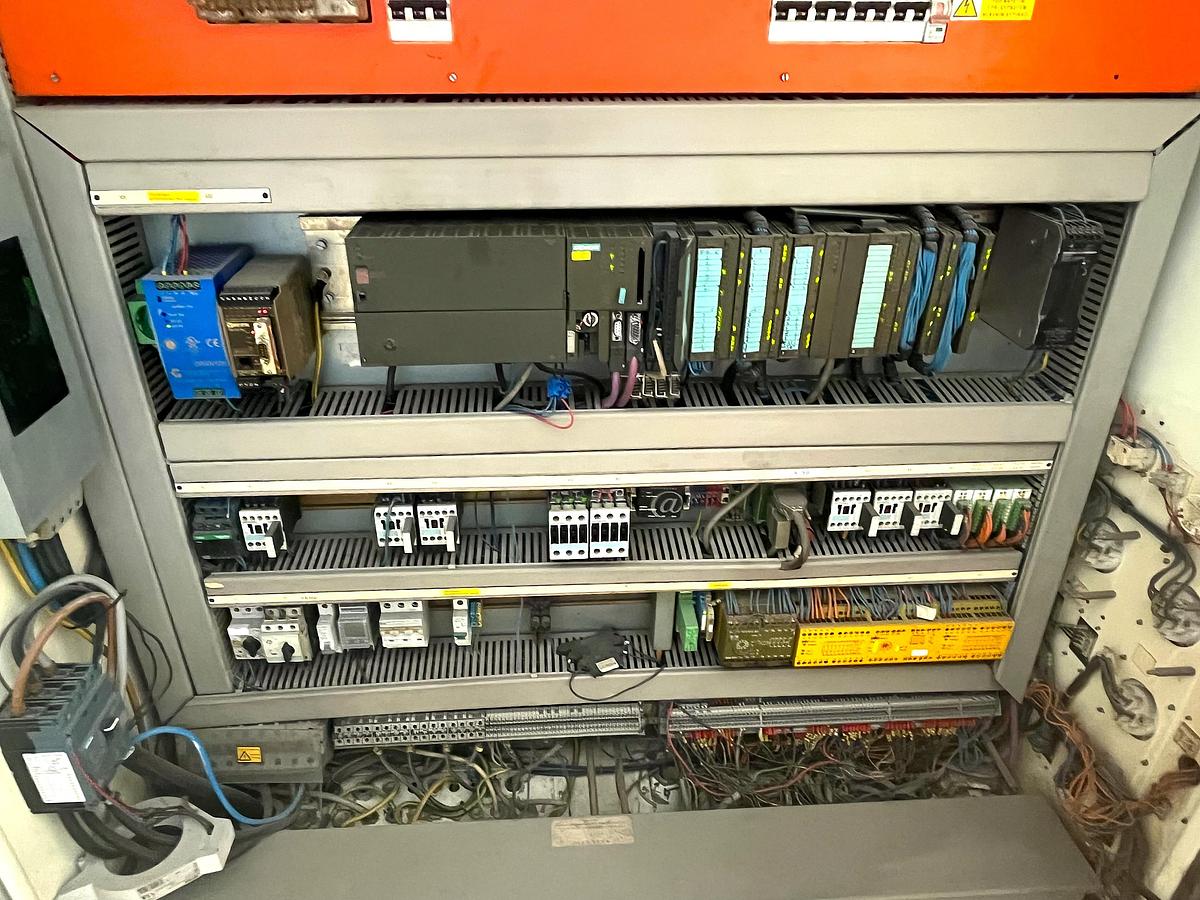

SIEMENS S7 PLC Controls

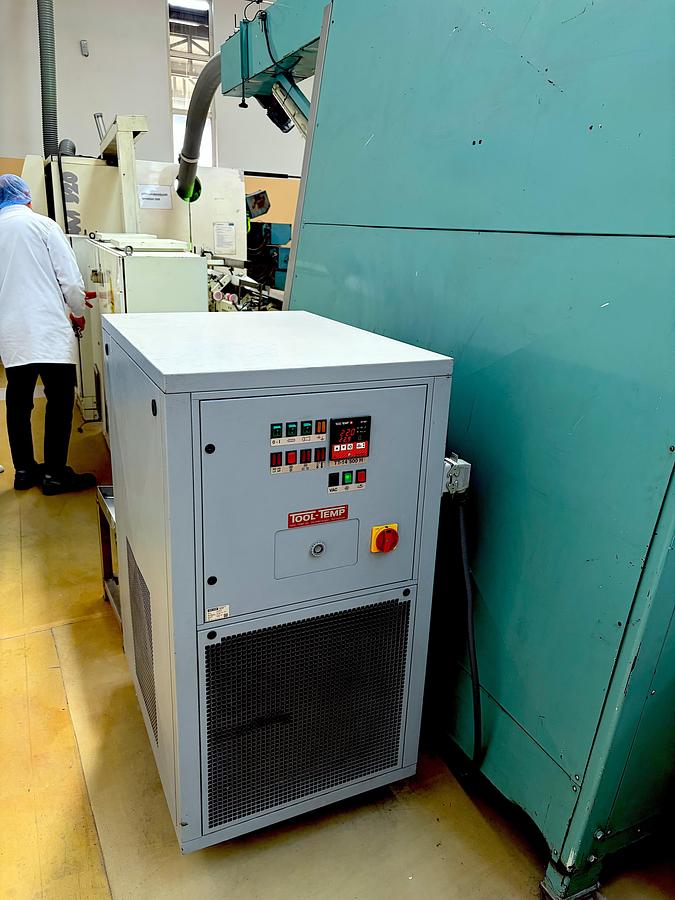

Tool-Temp Chiller HT-14-500H with Temperature controller

Integral Vacuum Pump

**V. Good Production Condition, continuously well maintained

Can be inspected in production
