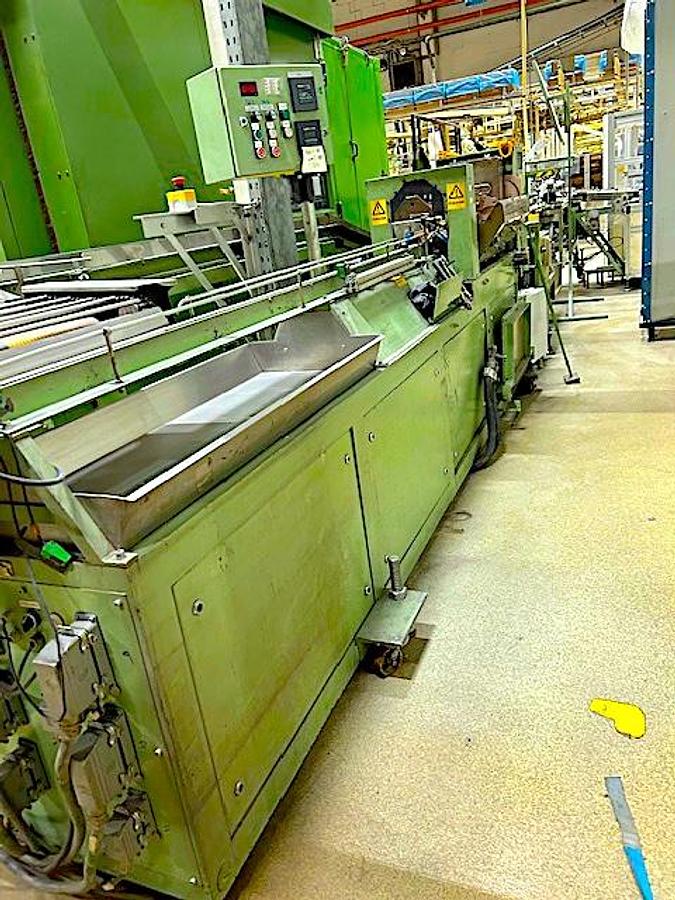

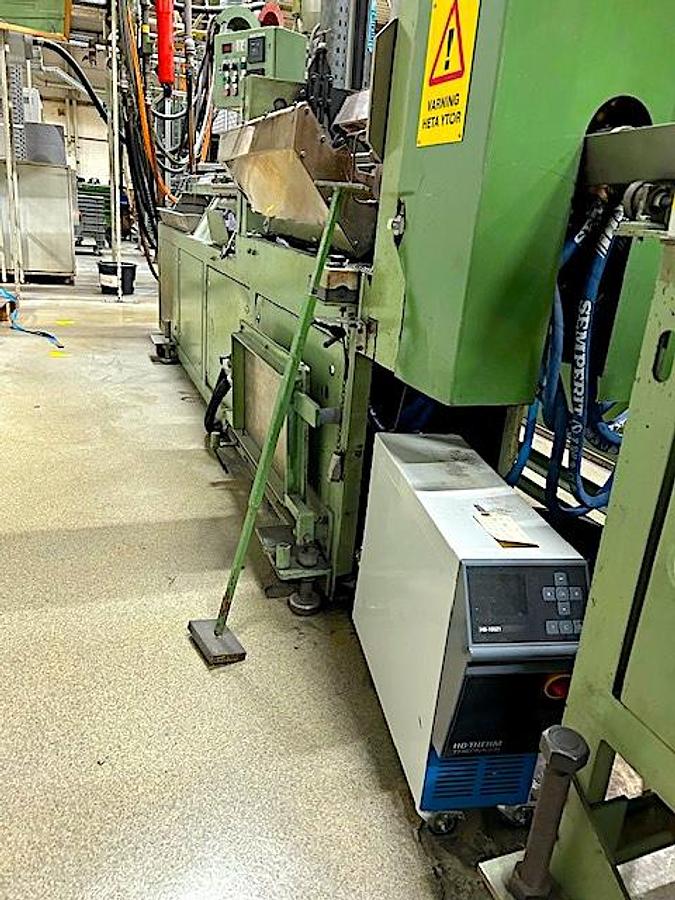

1989 Ballaform RIM Roller RA200

BELLAFORM Model RA200 Rim Roller:

With driven infeed Conveyor.

3 x Driven Feed Rubber Rollers for positive feed to the Heating Chamber.

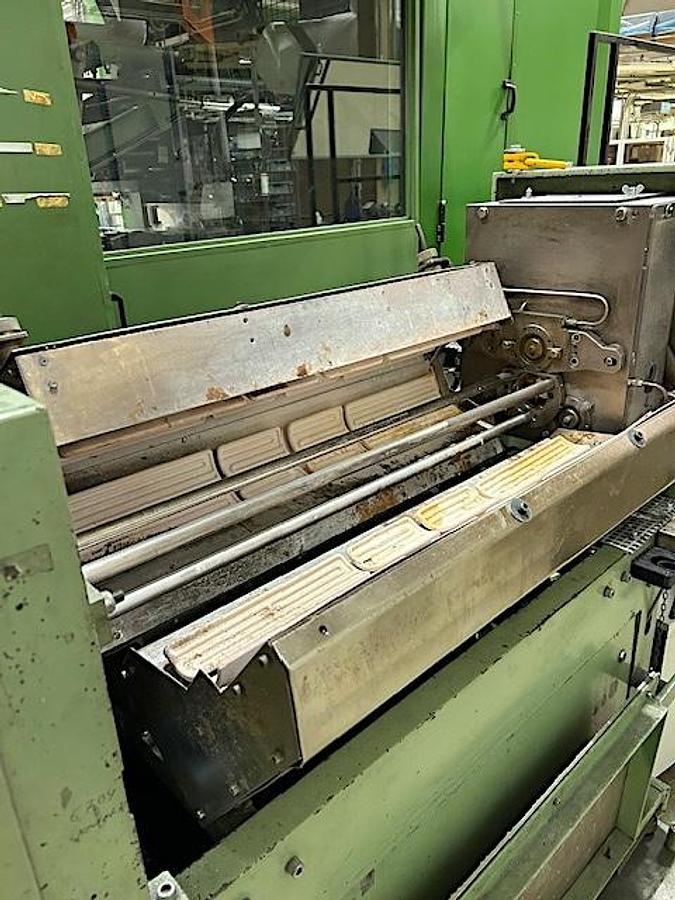

3 x Guide Rods water cooled, to guide Cups inside the Heater Chamber

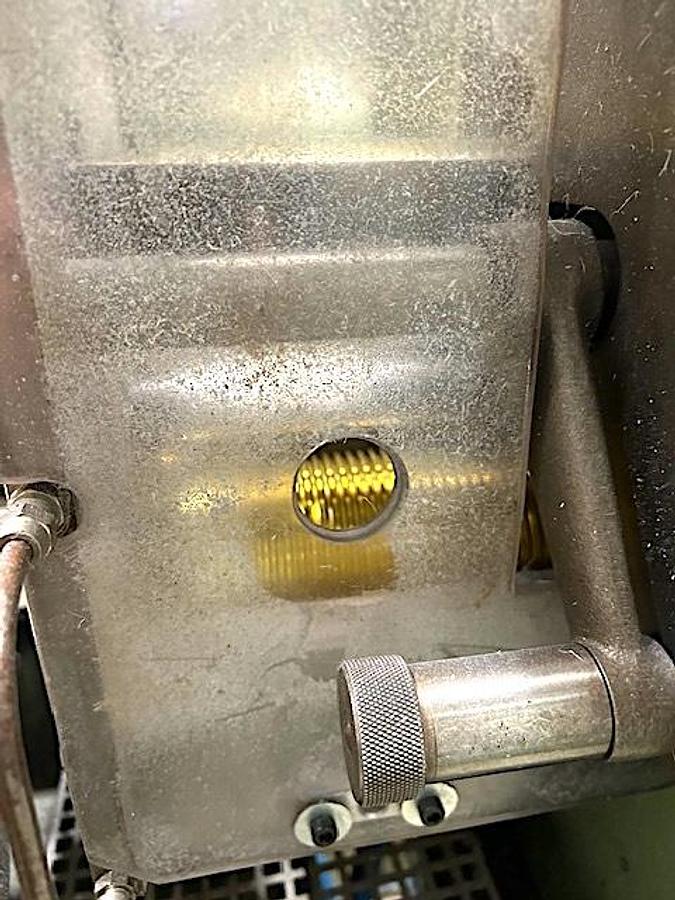

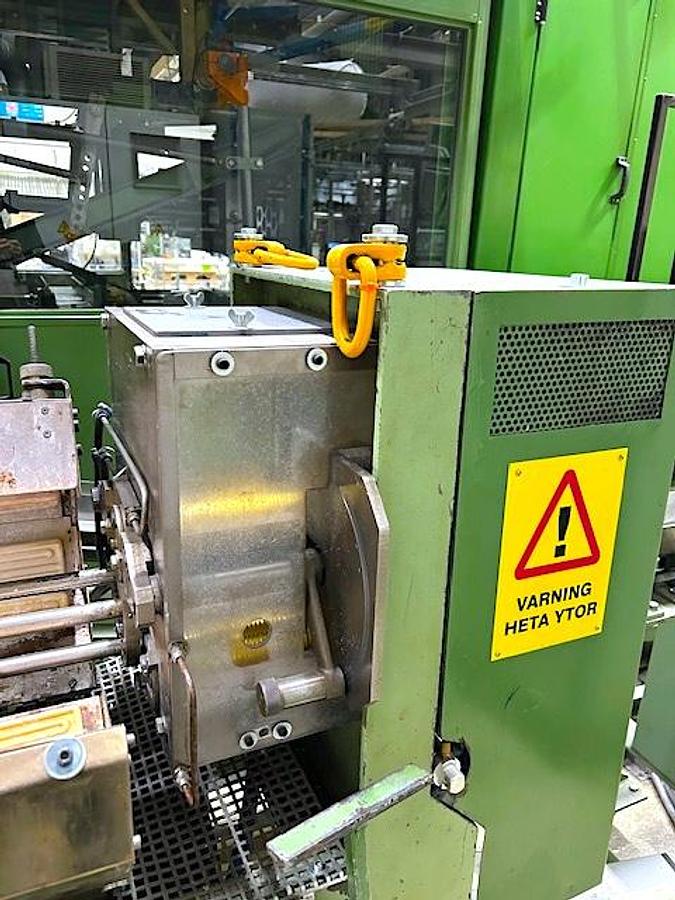

Enclosed IR-Heating Chamber Capacity 18.5 kW, Heaters with Temperature Controls.

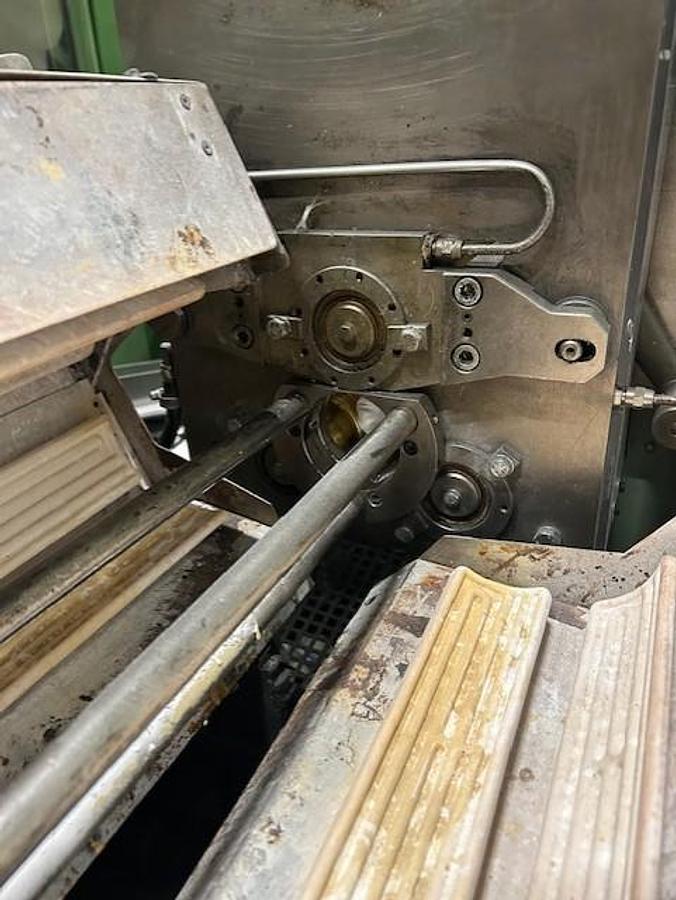

3 x Tempered Driven Brass Screws to Roll the Rims. Length of each Screw - 200 to 500 mm, depending on the Product, Screw speeds upto 850 rpm continuously variable.

Cup dias. Ø 60 to 100 mm

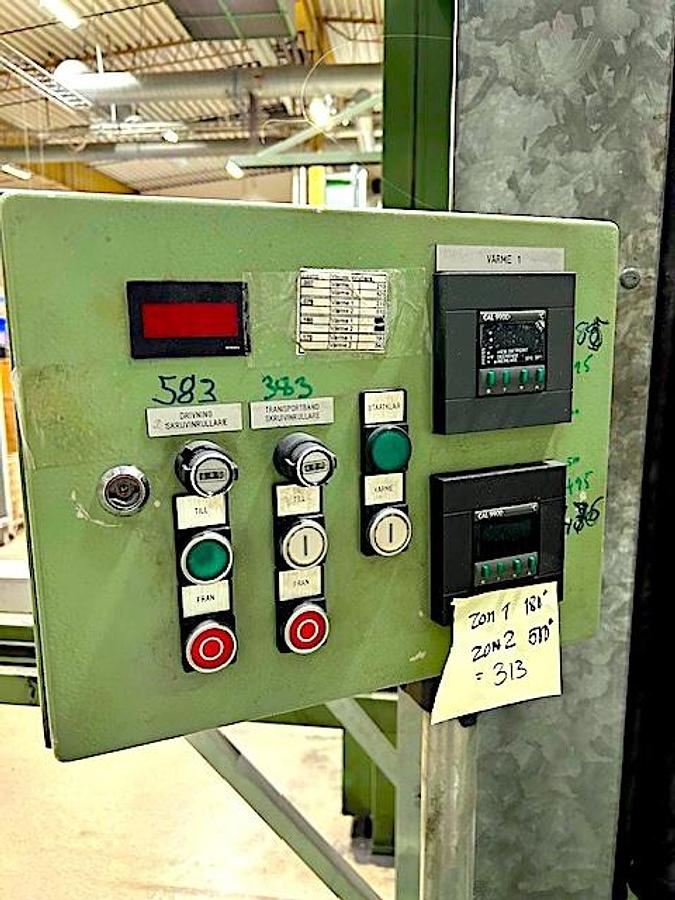

Operator Control Panel.

380 V 3 ph 50 Hz

** Video shows the Rim Roller working Inline with a ILLIG RD70K but it will also work Inline with a ILLIG RDM75K or any another Cup Thermoformer !
