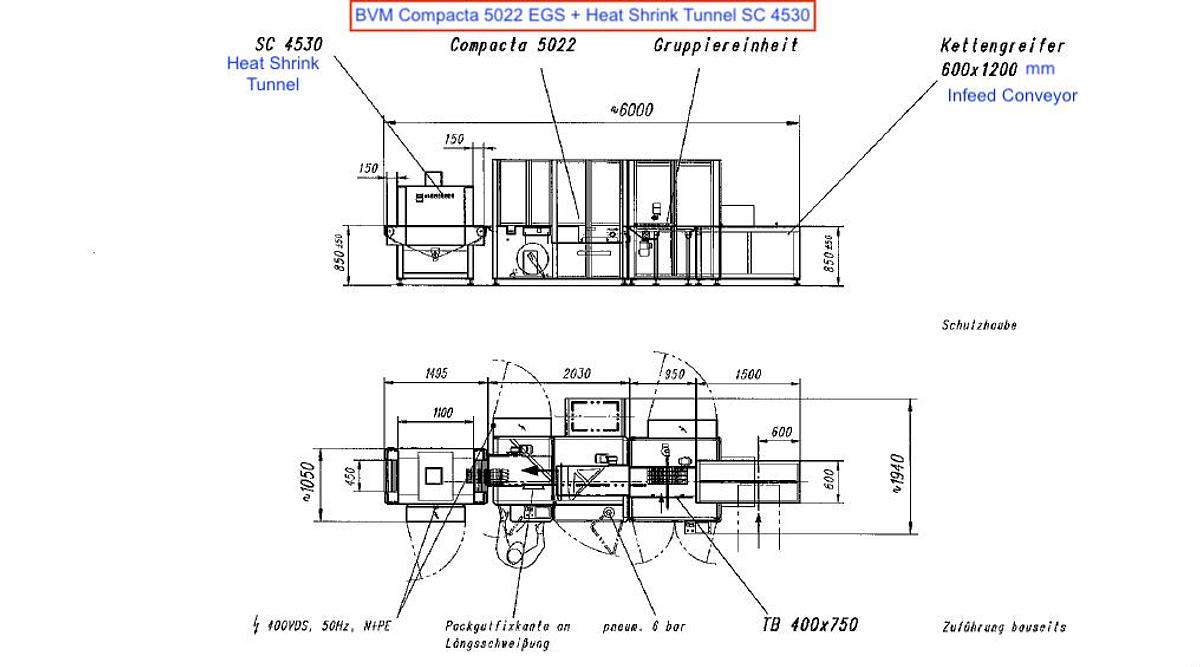

2014 BVM Compacta Sleever + Cermex Cartoner BVM Compacta 5022 EGS + SC 4530 Heat Shrink Tunnel

BVM Compacta 5022 EGS Sleever:

Indeed flighted Conveyor length 1200 mm (approx.)

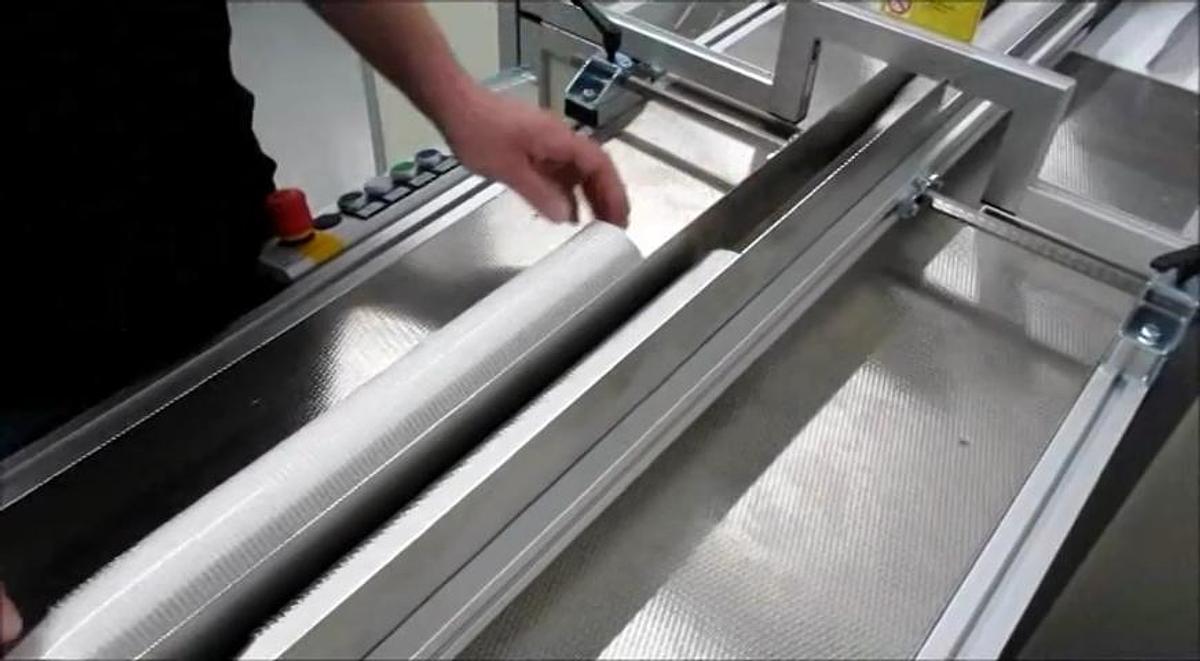

BVM grouping System:

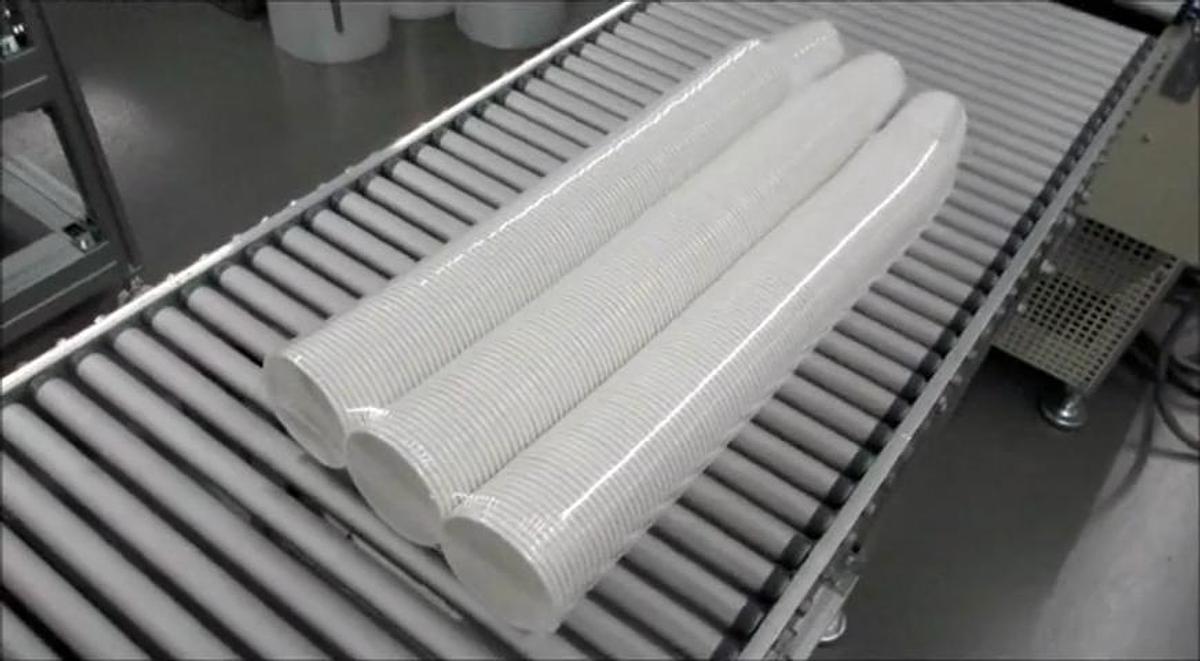

For production of multipacks of unto 4 Stacks side by side, consisting of:

Transport conveyor, width 400 mm, length 1000 mm (approx.)

1 Rake on top with mechanical positioning via frequency converter in servo mode

Including pneumatic flap for producing multipacks of 2, 3 or 4 Stacks

The transfer of single Stacks is also possible.

Max. length of Stacks 630 mm

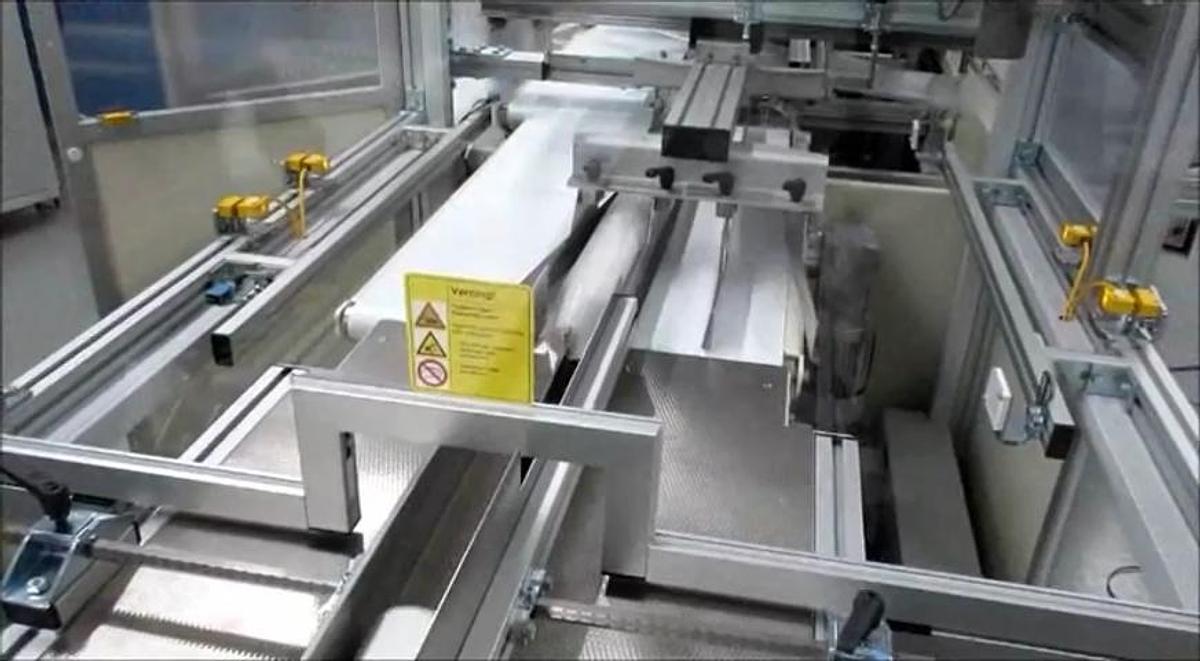

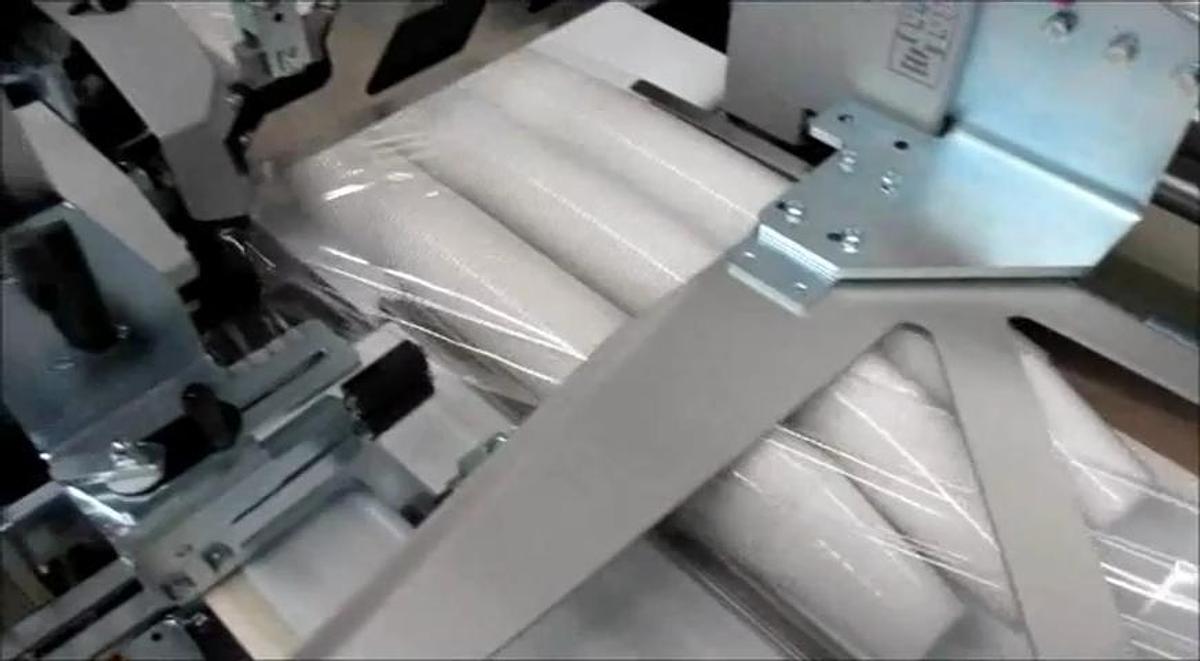

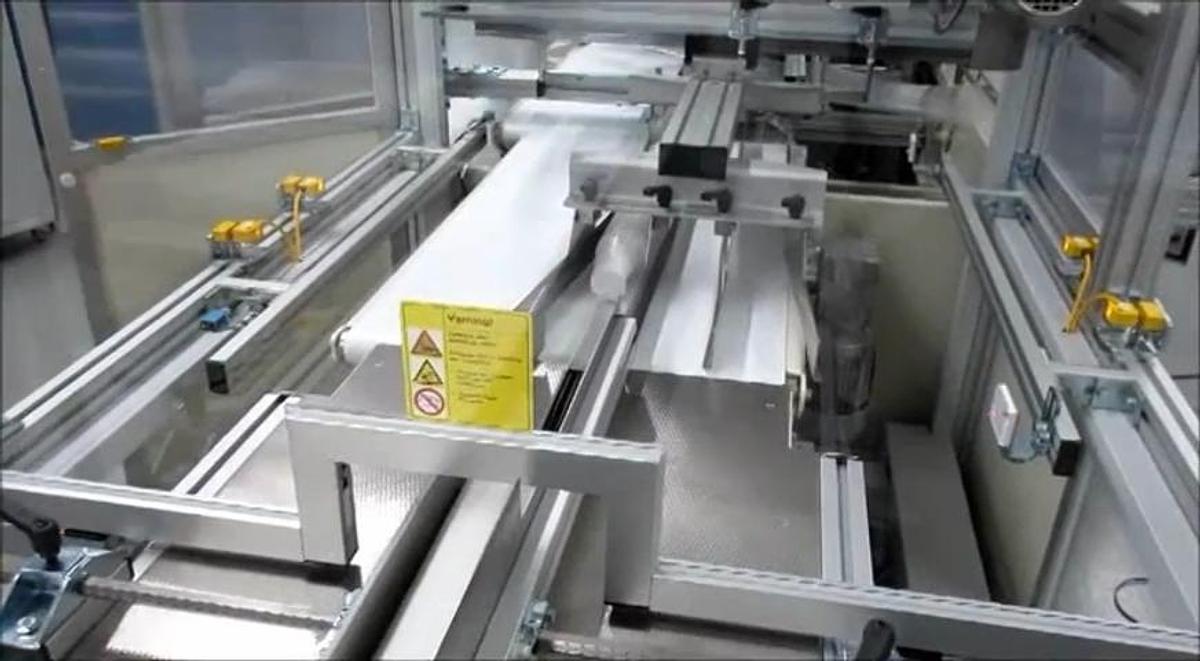

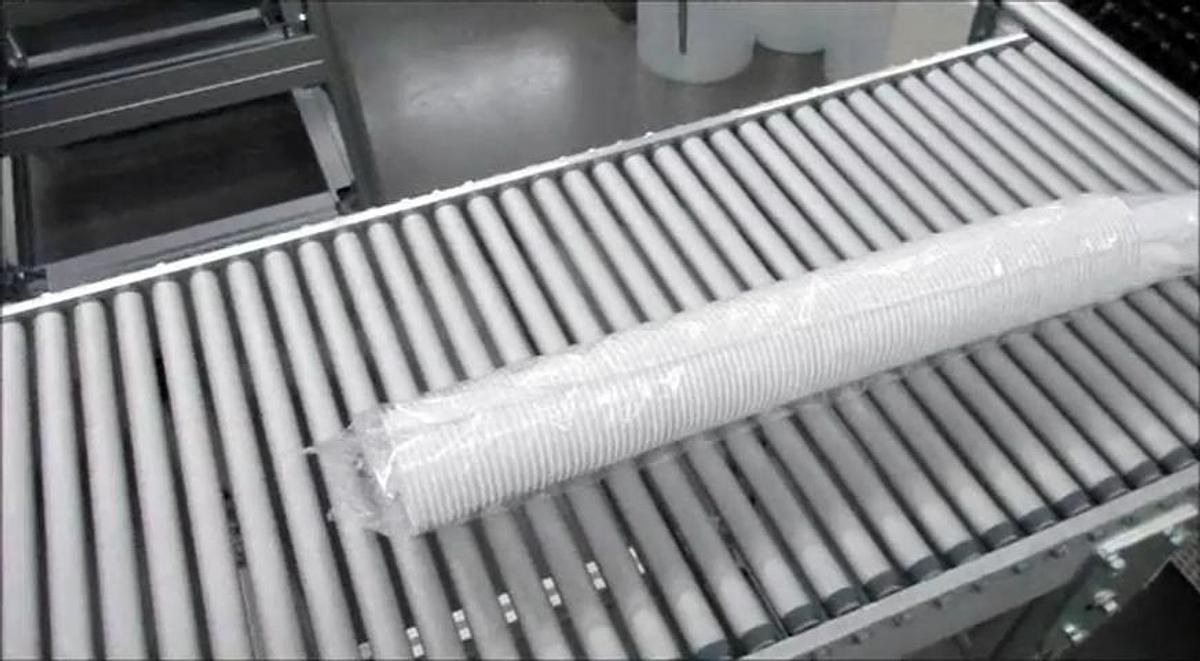

BVM fully enclosing packing/ Sleeving machine Compacta 5022. Fully automatic, fed by conveyor belt with photocell control including 100 format data storage locations

Technical Data:

Service side standard : left had side

Sealing : 500 mm

Passing Height : 220 mm (standard)

Belt width indeed/ outfield conveyor : 400 mm

Caacity : unto 120 cycles/ min *

Length sealing : continuously working

Film width max. : 650/ 650 mm center folded film

Dia. of film reel max. : 400 mm

Electrical control hardware : CPU VIPA. Periphery Siemens compatible

Connected load : approx. 5.6 kVA

Compressed air connection : 6 bar

Machine Paint : RAL 1013 - pearl white

Working height : 850 +/ - 50 mm

Needle perforation by means of three pin perforators for the use of non perforated film

Electronically regulated sealing jaw drive for Compacta 5022 & BM, (EGS), (servo mode: speed infinitely adjustable)

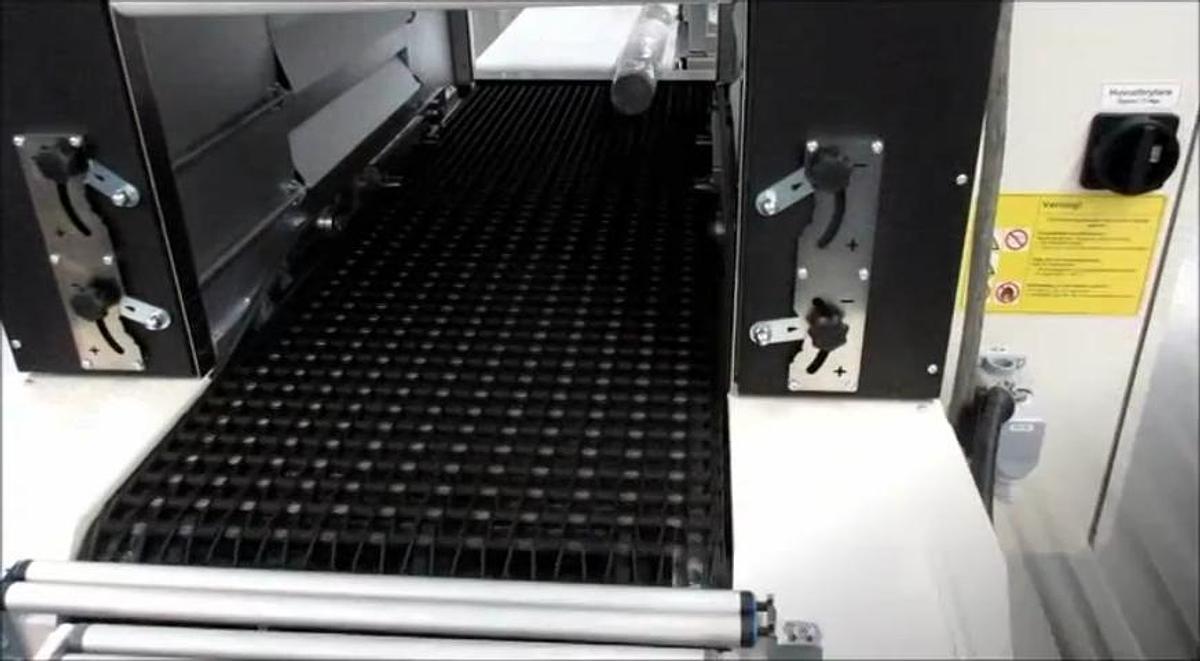

BVM SC 4530 Heat shrink tunnel

400 V, 50 Hz with Ground & Neutral

Control software: Siemens Step 7

CERMEX Automatic Cartoner

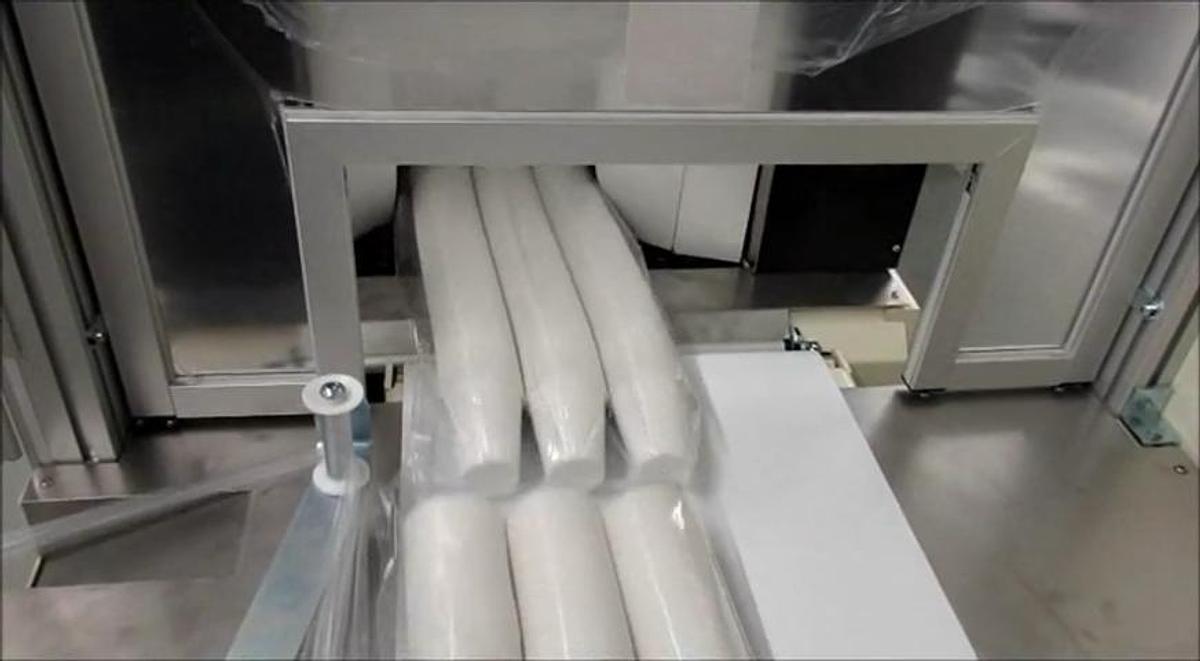

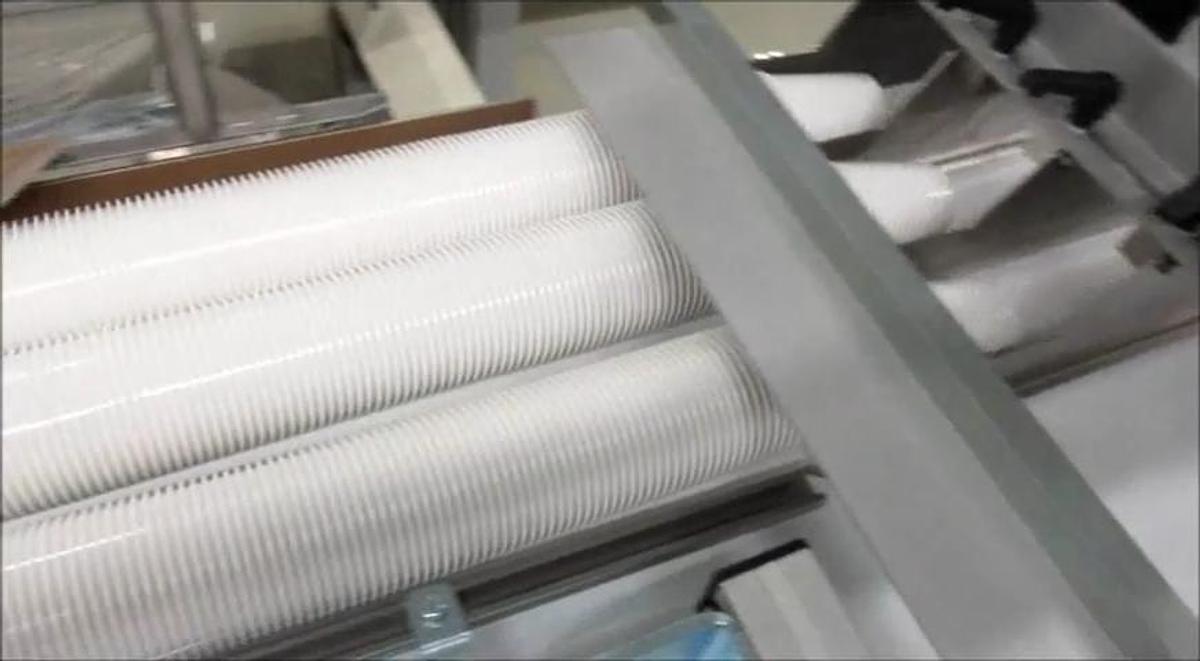

CERMEX Cup Stack Bundler, Carton Erector, Carton Filler, Carton Flap sealer at both ends. Delivers upright Cartons.

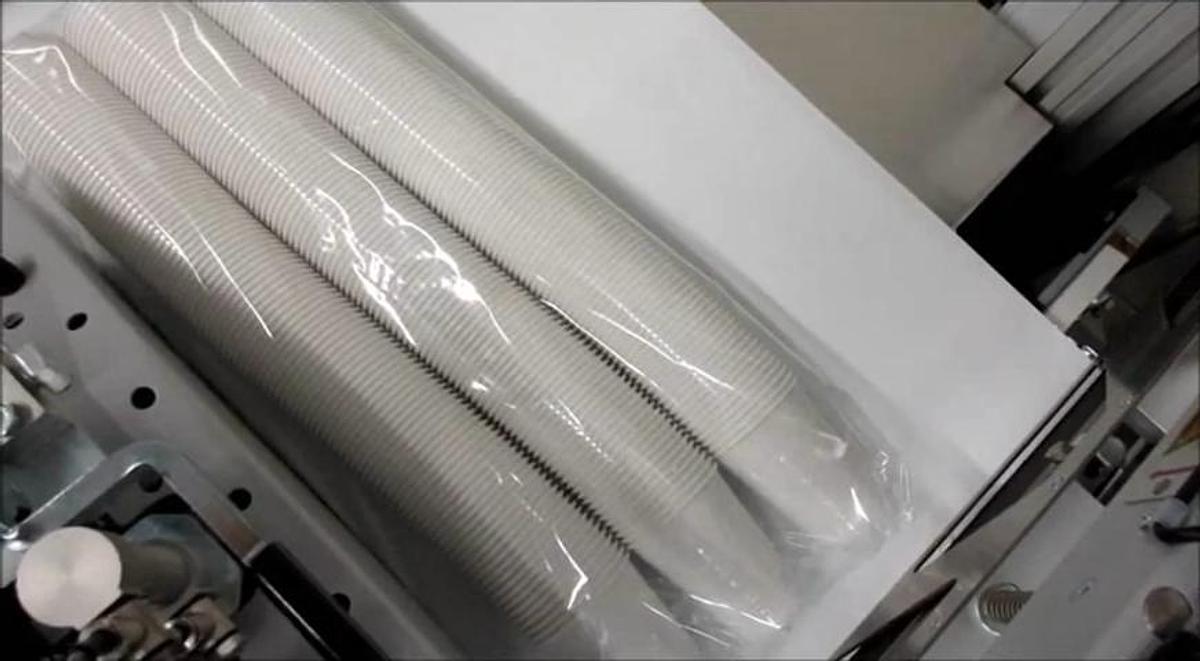

** Video shows the BVM Compacta + BVM SC4530 + Cermex in production with a Bellaform Rim Roller, offer for the Rim Roller is in addition to this offer
