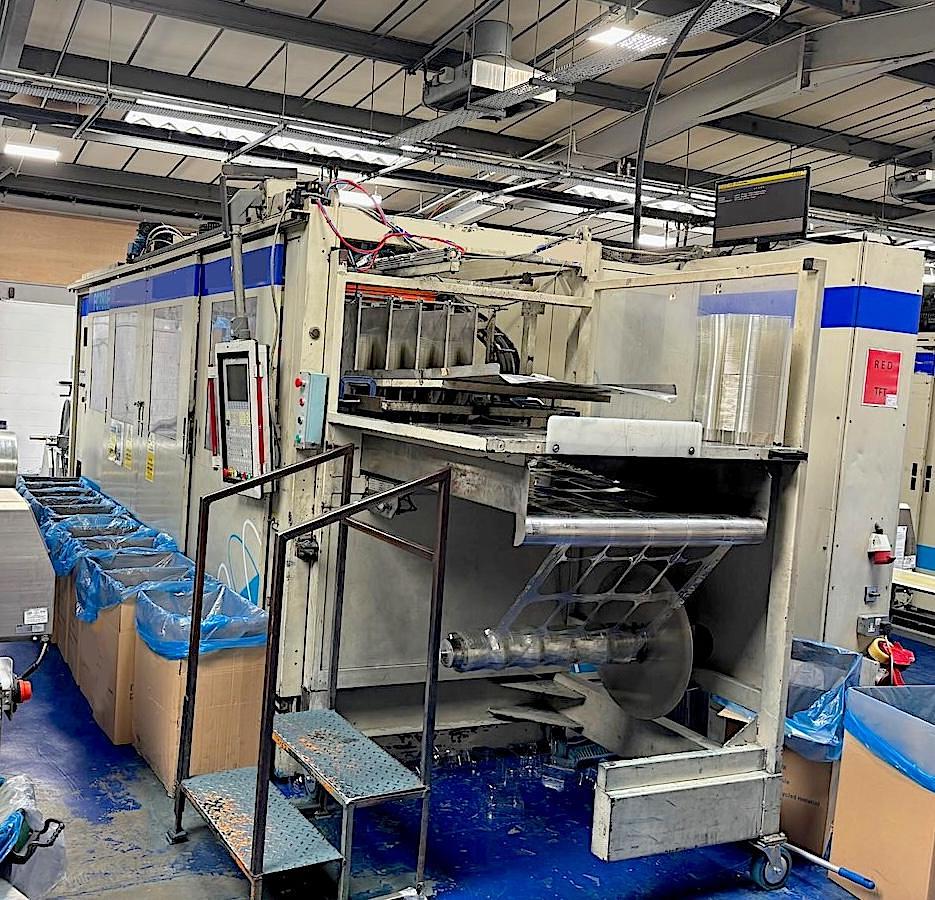

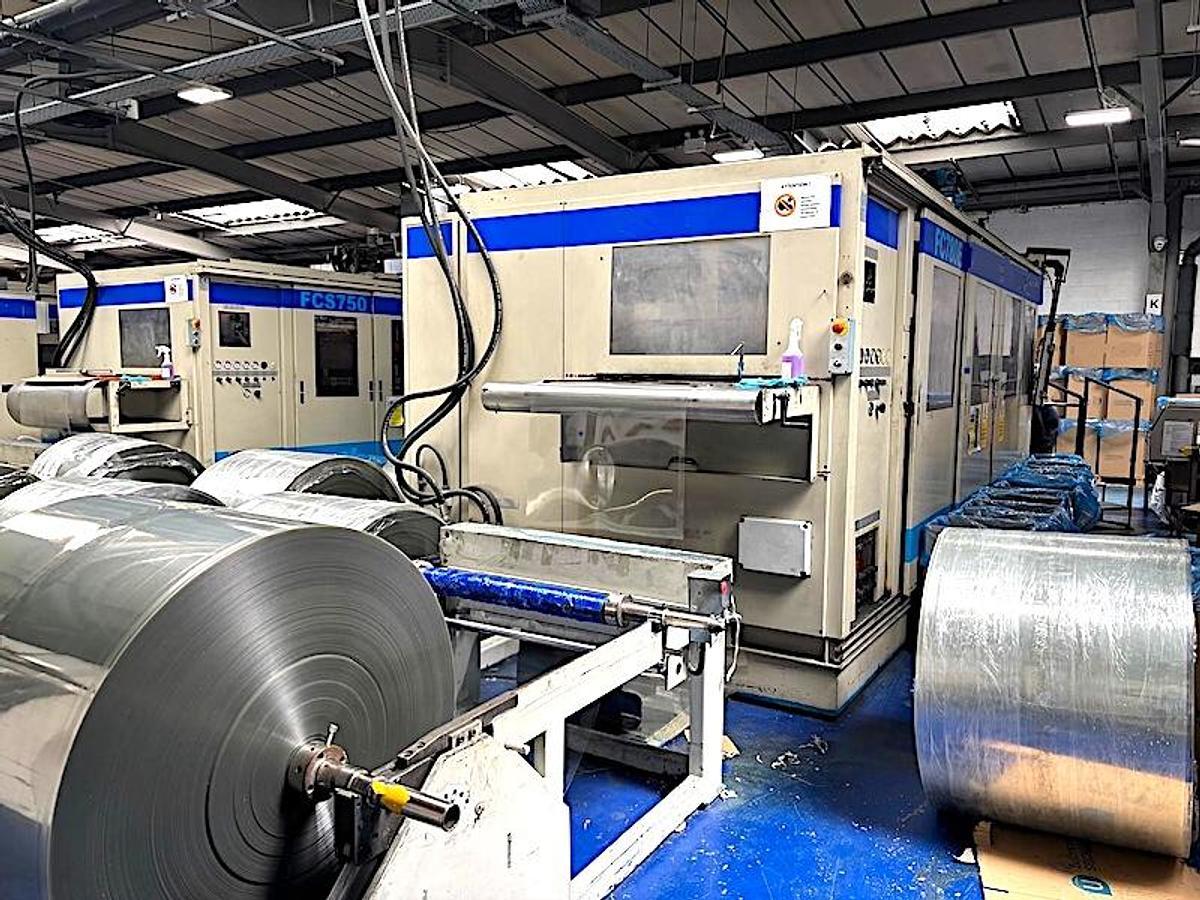

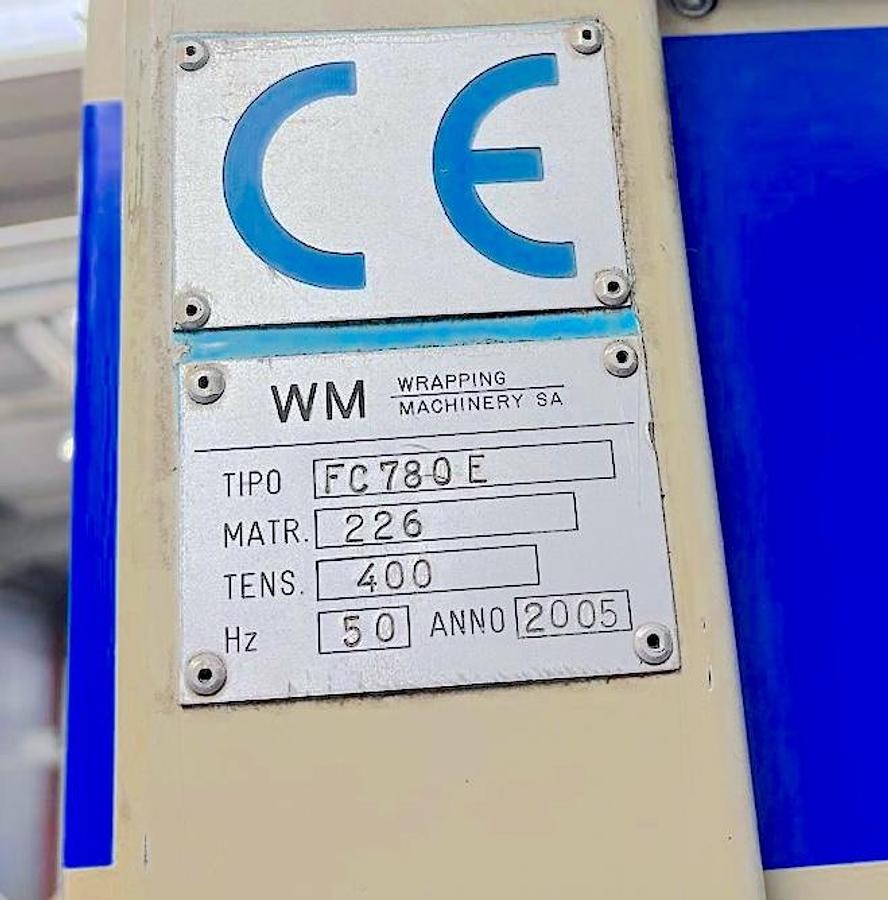

2005 WM (Wrapping Machine) FC780E

1 x Used Wrapping Machine WM FC780 E, age 2005

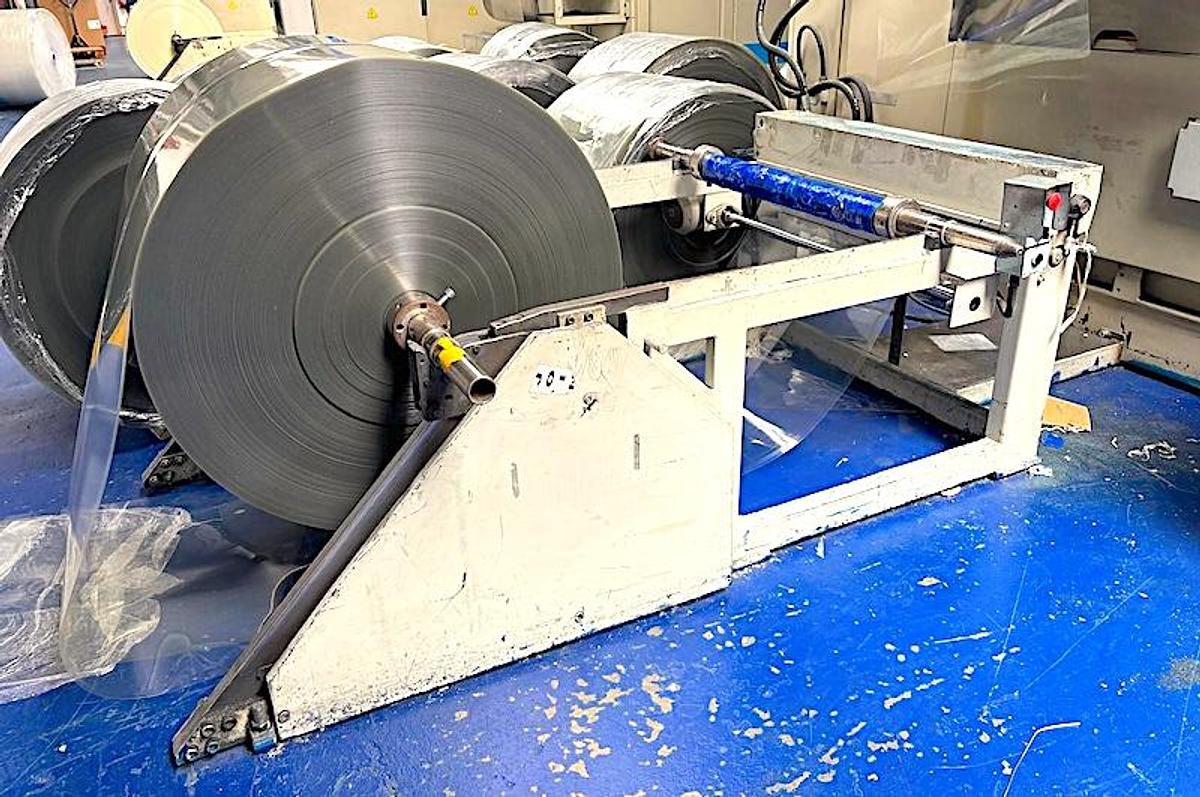

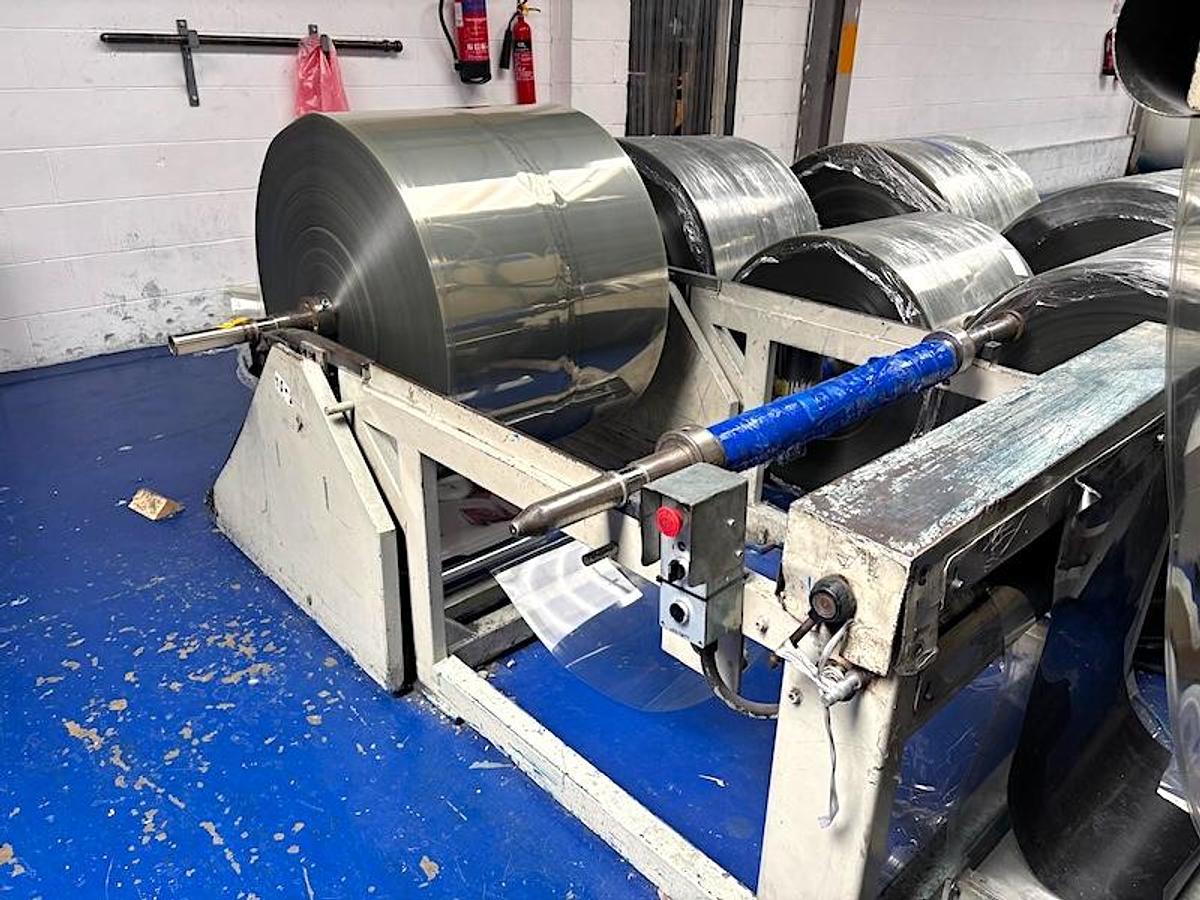

Unwinder:

Single Reel holder

Max. reel diameter 1,200 mm

Thermoforming machine:

Max. tool size 780* x 570 mm

Max. tool size with pneumatic clamp frame 750 x 570 mm

Max. positive depth 130 mm

Max. negative depth 130 mm

Max. sheet width 810 mm

Max. sheet indexing 570 mm

Max. HIPS sheet thickness 1.8 mm

Max. EPS sheet thickness 3 mm

Max. platen stroke (upper – lower) 150 mm

Heater length 1,775 mm

Clamping force DaN 20,000

Upper heating, installed power Kw 41

Lower heating, installed power Kw 41

Vacuum pump motor Kw 2,2

Platen driving servo motor (each) Kw 7.5

Sheet index servomotor Kw 11

Dry cycle speed 45 Cycles/ min

Processing air pressure 7 bar

Water consumption at + 12° C. 60 L/ min

Air consumption at 7 bar 50  L/ cycle

Cutting Press:

Max. cut dimensions 760 x 550 mm

Platen clamping force DaN 60,000

Upper platen stroke 150 mm

Lower platen stroke 150 mm

Steel rule heating plate Kw 7.8

Platen driving servomotor (each) Kw 7.5

Vertical Stacker:

Max. stacking dimensions 760 x 550 mm

Stacker driving servomotor Kw 2.2

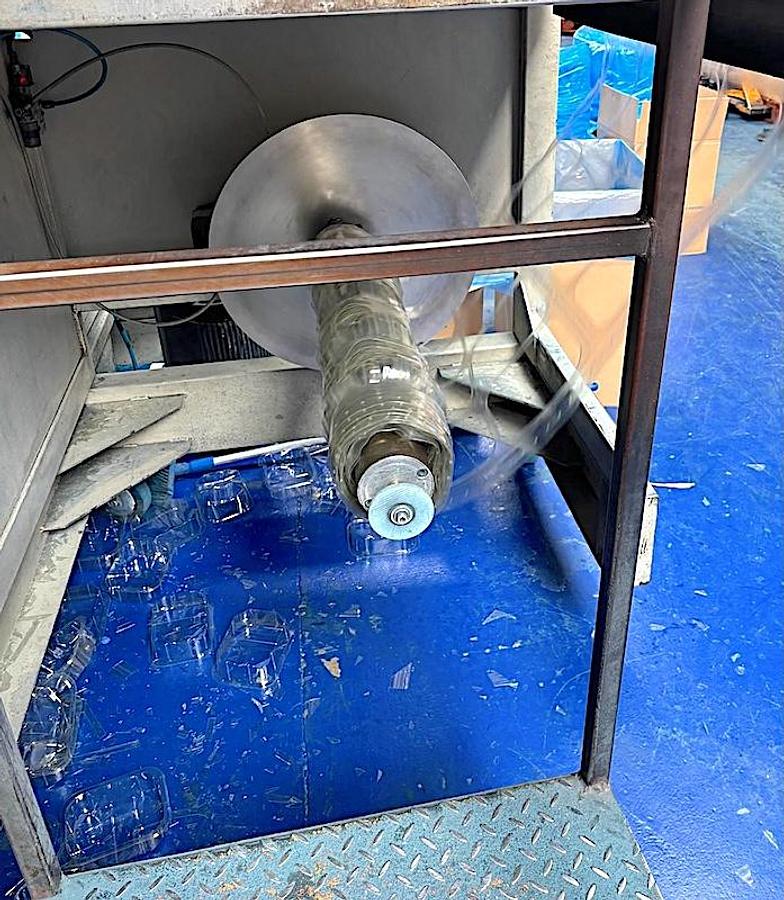

Scrap Winder:

Max. scrap roll diameter 600 mm

General Features:

Total installed power Kw 140

Length ( A ) 11,000 mm

Width ( B ) 4,750 mm

Height ( C ) 2,550 mm

Weight 11,500 Kg

*. Machine can be inspected in production

** Data Sheet is attached
