2004 AMUT EA-160

AMUT FLAT FILM EXTRUDER EA-160 FOR PS/PP

Complete PP/ PS Extrusion Line, Age: 2004

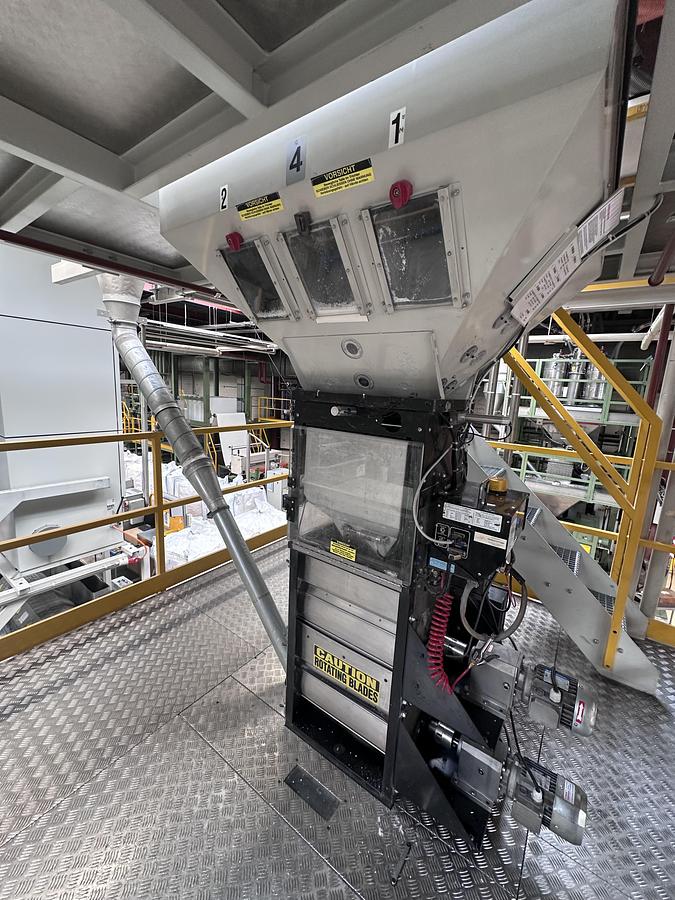

Maguire 5-Part Dosing System

AMUT EA160 Extruder, Screw Dia. 160 mm, L/D 32, Age: 2003

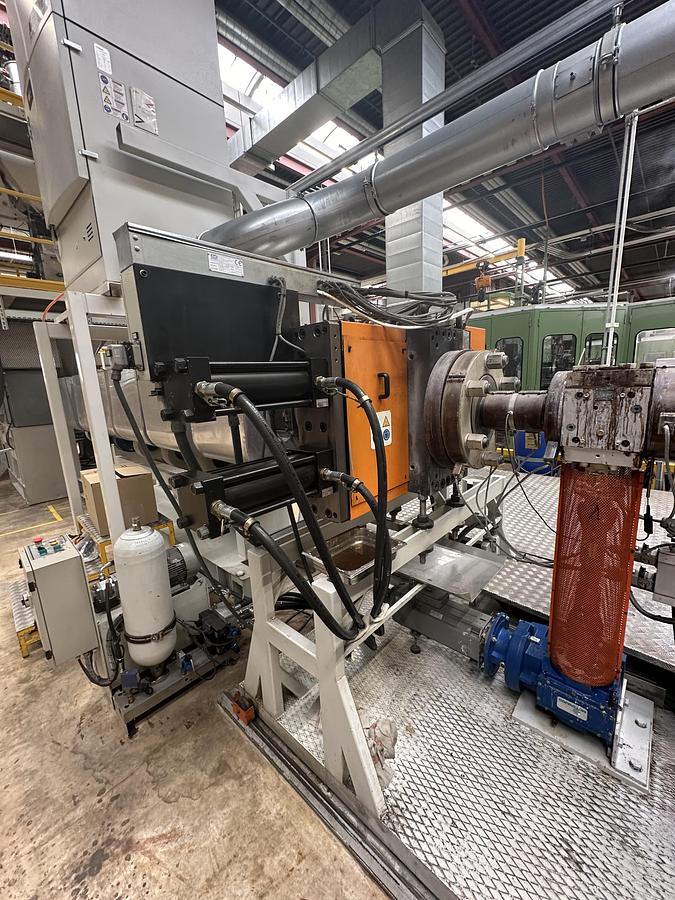

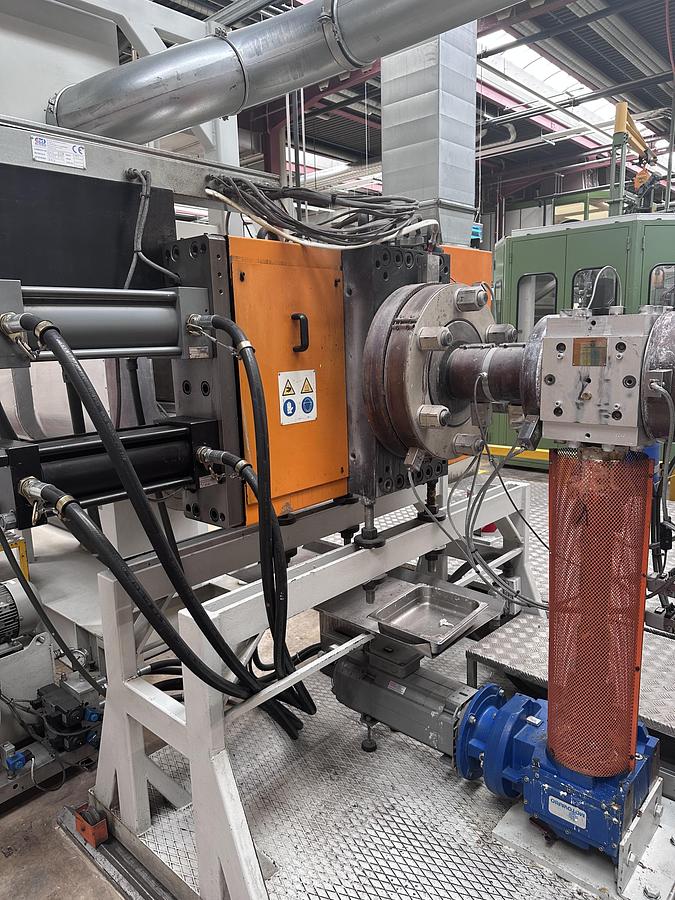

Hydraulic Screen Changer

Melt pump

Flat Lip Die width 1200 mm, max. film thickness 2 mm, upto 1000 Kg/ hr

Min. PS-Film thickness 0.68 mm. Min. PP- film thickness 0.75 mm

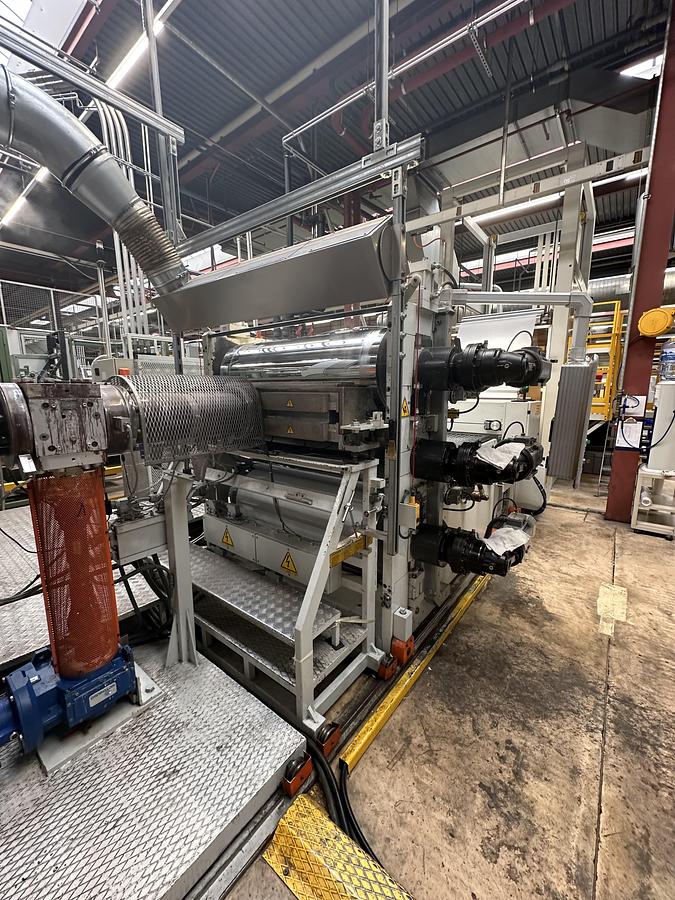

3-Roll Cooling/ Polishing Stack width 1400 mm, Maximum mechanical Cooling Stack speed: Max. 50 m/min.

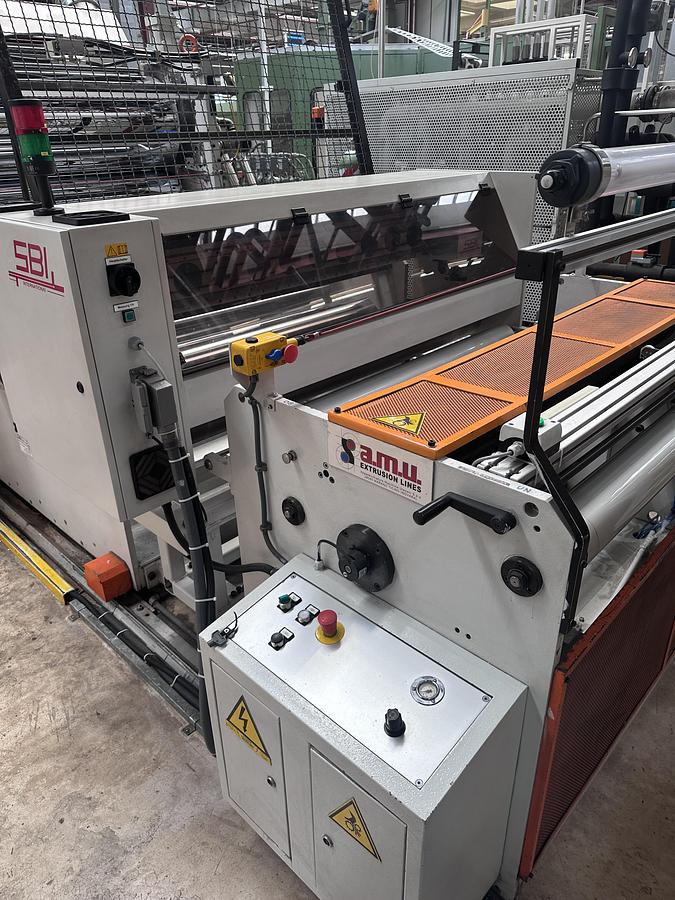

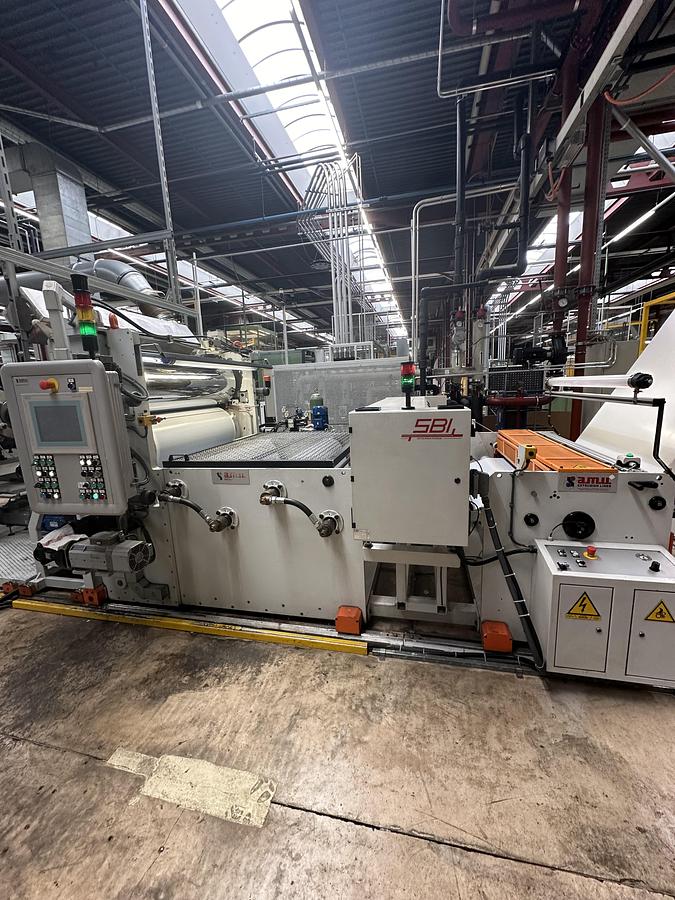

Thickness messuring Equipment SBI TMD-EC/140.20.200.R

4 x Post Cooling Rollers

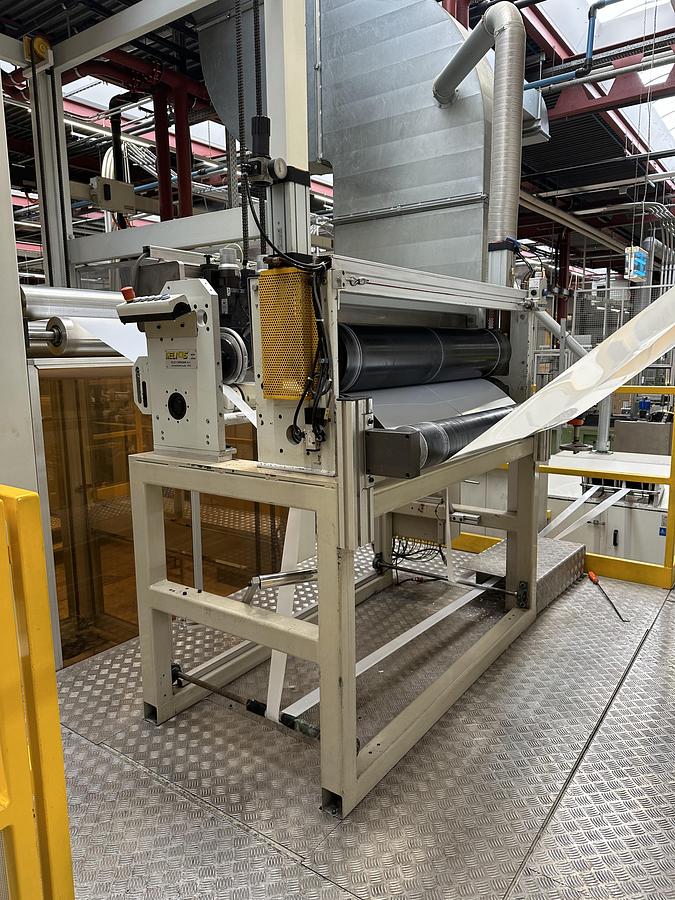

Edge Trim Shear cut Trimming Station

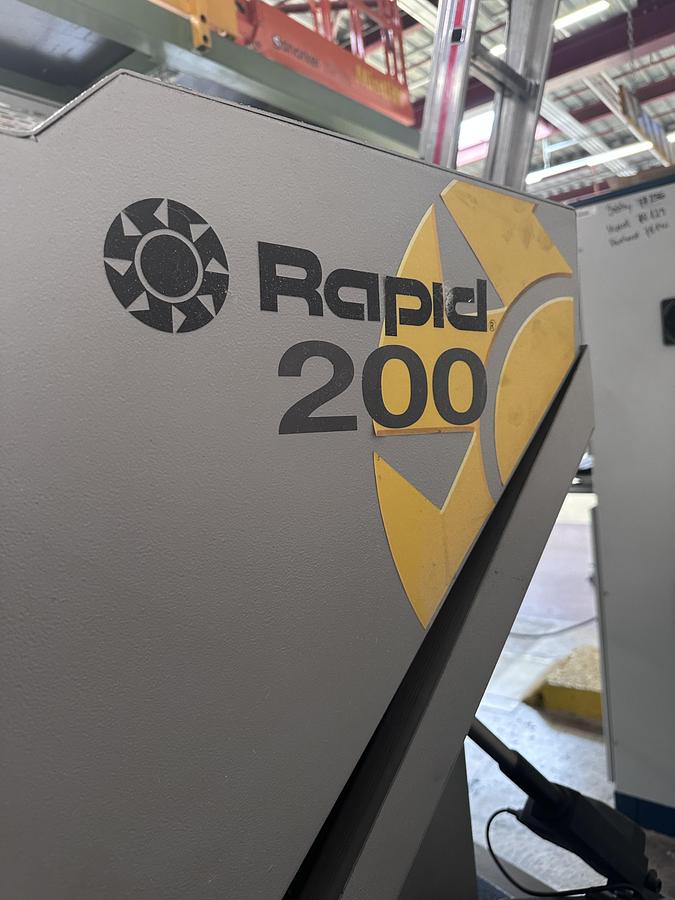

Edge Trim Grinder Rapid 200, Age 2003

Max. winder speed: 50 m/min

A special feature is the winding system, which can slit narrow films (150 mm - 100 mm)

i.e. 8 x 175 mm or even 2 x 700 mm

3 - Winding Positions

400V 3-Phase, 50 Hz, Power: 250 kW

Max. output with PP up to 1000 Kg/ hr with film width up to 1200 mm

Complete with Control Cabinets, pumps etc.

** The general technical condition is v. good. This is one of their core machines for production & as such has been very well maintained and cared for.
