Reifenhäuser & ILLIG Reifenhäuser Co-extruder + Inline ILLIG RDM70K

Used Reifenhäuser Coextrusion Line for A-B-A Film with Inline ILLIG RDM70K, ILLIG BGR 53 & Inline ILLIG RS75 Grinder

details are as follows:-

Motan 4 Component Gravimetric Dosing Mixing Unit

Main Extruder Reifenhäuser RH 801-1-90-30 age 1990, Dia 90 mm, L/D 30

Co-extruder Reifenhäuser RH 241-1-50-30, age 1997, Dia. 50 mm, L/D 30

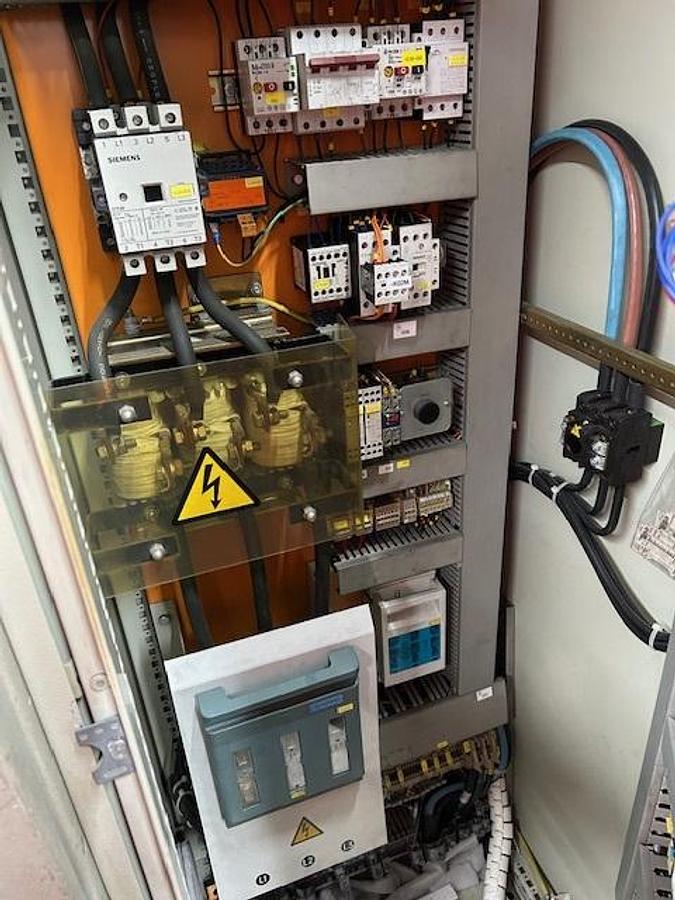

Siemens SIMOREG Extruder Drives

Screen Changer: Coestruder is manuel, Main Extruder is SML Screen Band Filter, controled with both Presure and time

Melt Pump: MAAG 56/ 56

A-B-A Adapter

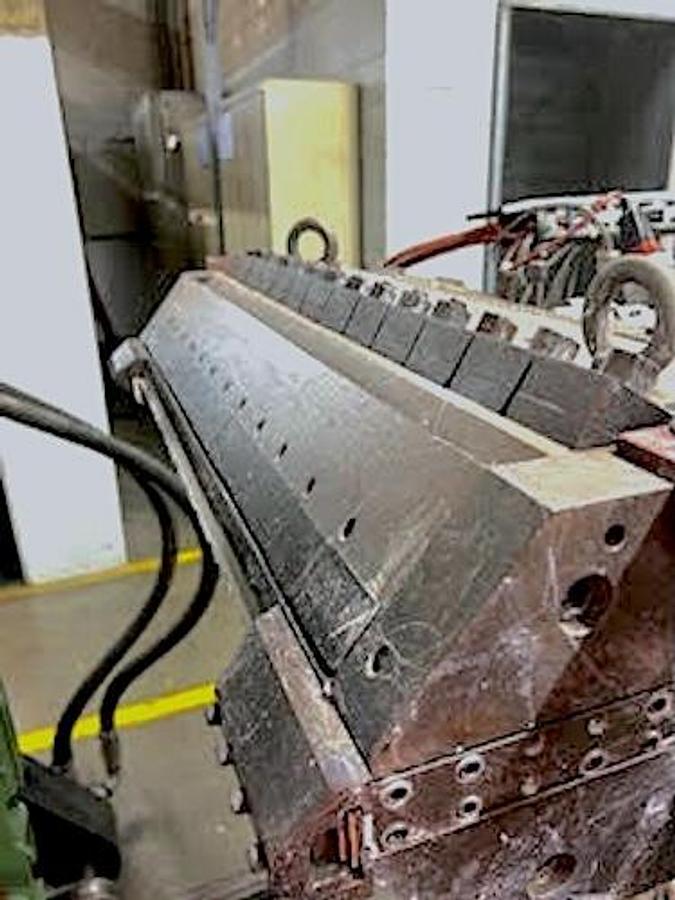

860 mm Flexlip Die

3 x Roll Polished Chrome Reifenhäuser Cooling/ Polishing Stack, updated with individual LENZE Servo Motors for each Roll

Dia Ø 250 mm, Width 795 mm

2 x Roll Take-Off

Max. output with PP: Main Extruder 250 Kg/ hr, Coextruder 50 Kg/ hr

Inline ILLIG RDM 70K, age 1991

With SIEMENS S5 PLC and ENCODER on the Main Shaft

Indramat Servo Motor Indexing, with ELAU Control Panel

Max. material width 730 mm

Max. Indexing length 300 mm

Top & Lower heaters, total connected load top & bottom heaters 74.2 kW

Drive Motor 6.93 kW

Auto Transport Rail Spreading for PP

Sheet Sag Control

Max. Forming Area 680 x 280 mm

Hydraulic Plug Assist, Max. Part height 125 mm

Hydraulic Power Pack, Recondition in 2023

Inline ILLIG BGR 53 Counter/ Stacker, age 1991

Inline ILLIG RS75 Grinder with Sound-Proof Housing with Control Panel & Regrind Blower

Line is running with PP.

** Video available shortly
