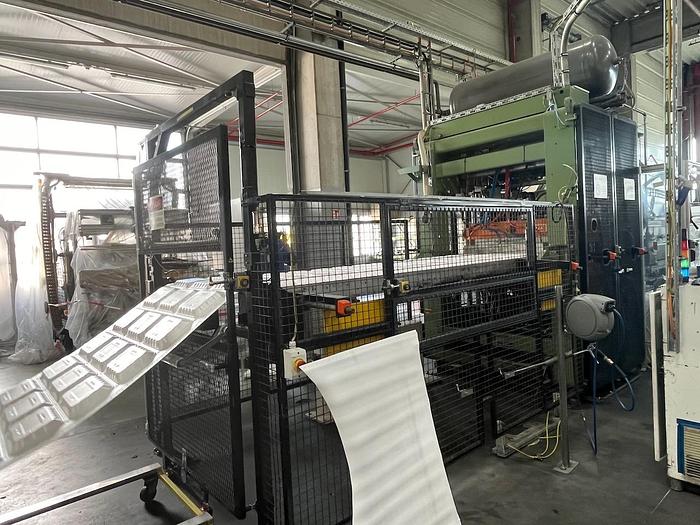

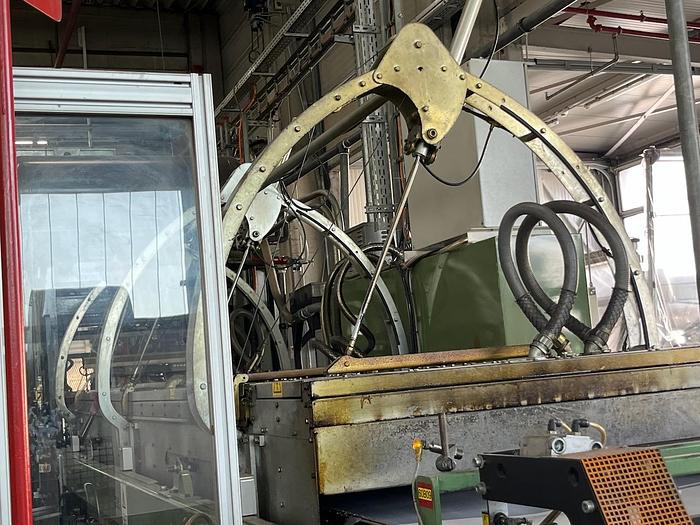

IRWIN 46" Wide Thermoforming Line, rebuilt in 2015

IRWIN 46" Wide Thermoforming Line, rebuilt in 2015

Available quantity:1

orCall +49 175 6191458

Description

IRWIN HT-LH, 44-44-40-25 Thermoformer + Inline Double Action Trim Press Model: 50NT TP - LH

Age 2000, Taken into production in June 2001

Rebuilt in 2015

Full servomotor Line

Material: currently running XPS

Micro Phaser Type: Ballerina

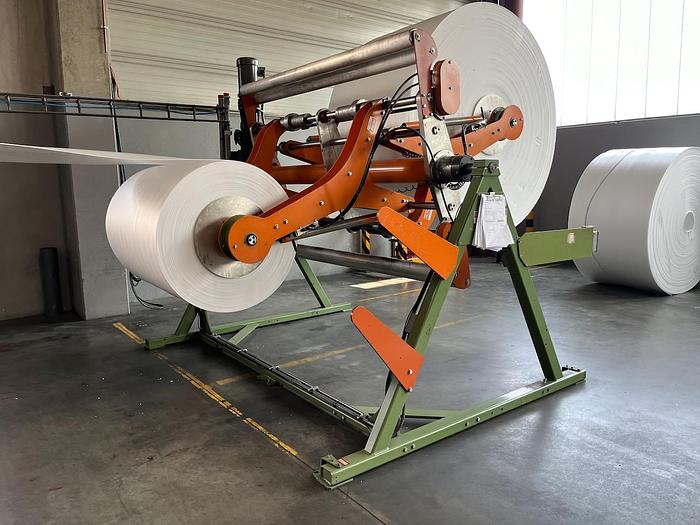

PAYOUT - NIP STAND - ROLL STAND

Model: 50 NIP (2019) & 50 Rotary

Type of Control: Ballerina

NIP Rolls: Neoprene Coated


HEAT TUNNEL

Model: 44-200 Quartz

Type of Tunnel: 44-200 Quartz

Controller: Mistic

Type of Control: P.I.D

Number of Zones: 52 Heater Zones / 48 T/C Zones


FORMER

Model: 44-40-25 AF-LH

Max Speed depending on the product, or limited by Trim Press punching speed

Press Rating: 60 Tons

Max. sheet width 46"/ 1186 mm

Max. Mold size: 44"/ 1118 mm (Width) ; 40"/ 1016 mm(Length)

Max. Draw 2.5"/ 64 mm


TRIM PRESS

Model: 50NT TP - LH Double Action

Max-Speed: up to 182 Cycles/minute

Trim Press to Former Distance: 16' 6"

Max Cutting force: 20 Tons


PRODUCT MARKER

Type: Treadle Mounted Impact


GRINDER

Irwin Chesaw under the Trim Press Grinder Model 50

Delivers counted/ Stacked products


Line Delivers counted/ Stacked products


** Line can be inspected in production


Specifications

ManufacturerIRWIN
ModelIRWIN HT-LH, 44-44-40-25 Thermoformer + Inline Double Action Trim Press Model: 50NT TP-LH
Year2000
ConditionRefurbished
Stock NumberID591
